Basler BE1-50 Instruction Manual

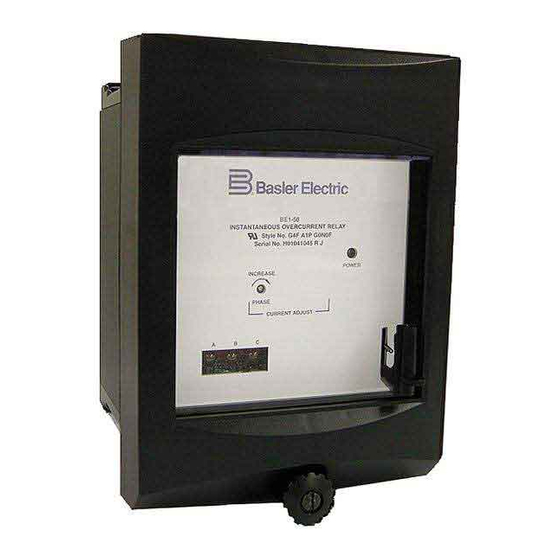

Instantaneous overcurrent relay
Hide thumbs Also See for BE1-50:
Table of Contents

Advertisement

Quick Links

Download this manual
+05647%6+10/#07#.
(14
+056#06#0'17518'4%744'064'.#;
$'
Publication:
9 1710 00 990
Revision:
C
11/98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE1-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Basler BE1-50

Summary of Contents for Basler BE1-50

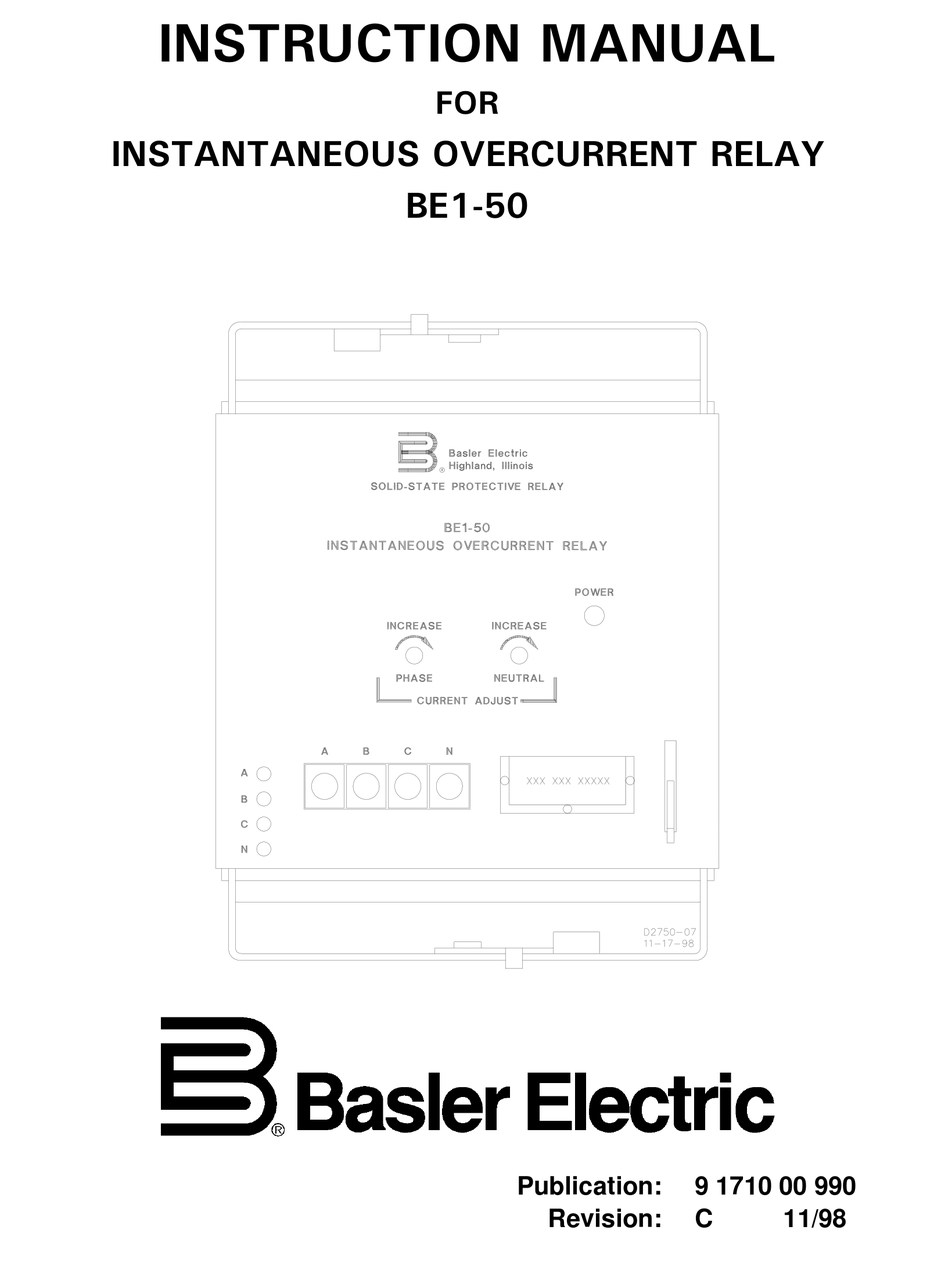

  • Page 1 +05647%6+10/#07#. +056#06#0'17518'4%744'064'.#; $' Publication: 9 1710 00 990 Revision: 11/98...
  • Page 2 INTRODUCTION This Instruction Manual provides information concerning the operation and installation of BE1-50 Instantaneous Overcurrent Relays. To accomplish this, the following is provided. Specifications Functional characteristics Installation Operational Tests Mounting Information W A R N I N G ! To avoid personal injury or equipment damage, only qualified personnel should perform the procedures presented in this manual.
  • Page 3 November 1998 CONFIDENTIAL INFORMATION OF BASLER ELECTRIC COMPANY, HIGHLAND, IL. IT IS LOANED FOR CONFIDENTIAL USE, SUBJECT TO RETURN ON REQUEST, AND WITH THE MUTUAL UNDERSTANDING THAT IT WILL NOT BE USED IN ANY MANNER DETRIMENTAL TO THE INTEREST OF BASLER ELECTRIC COMPANY.

  • Page 4: Table Of Contents

    Test Plug ............6-1 BE1-50 Introduction...
  • Page 5 Changes ............7-1 BE1-50 Introduction...

  • Page 6: Section 1 General Information

    Phase Fault Detection BE1-50 relays can be used in two ways to detect phase faults. The first method is to place an instantaneous overcurrent element in each phase with the setting higher than expected load current for any power system...

  • Page 7: Combination With Other Protective Devices

    Style number identification chart (Figure 1-3) defines the electrical characteristics and operational features included in BE1-50 relays. For example, if the style number were J6J A1P J1E1F, the device would have the following: 3-phase-and-neutral sensing Phase sensing input range of 4.0 to 32 amperes.

  • Page 8: Specifications

    Power Supply Power supply Types F, G, and H derive operating power from the sensing inputs at a maximum burden of 5 VA per phase at pickup. Externally powered power supply ratings are shown in Table 1-2. BE1-50 General Information...
  • Page 9 250 Vdc Make 30 A for 0.2 seconds, carry 7 A continuously, and break 0.3 A. Inductive: 120/240 Vac, Make 30 A for 0.2 seconds, carry 7 A continuously, and break 125/250 Vdc 0.3 A. (L/R = 0.04). BE1-50 General Information...
  • Page 10 (SWC) Tests for Protective Relays and Relay Systems. UL Recognition UL recognized per Standard 508, UL File No. E97033. Operating Temperature -40C (-40F) to +70C (+158F). Storage Temperature -65C (-85F) to +100C (+212F). Weight 17.5 pounds (7.76 kg) minimum. Case Size BE1-50 General Information...

  • Page 11: Section 2 Human-Machine Interface

    SECTION 2 • HUMAN-MACHINE INTERFACE CONTROLS AND INDICATORS GENERAL Table 2-1 lists and briefly describes the operator controls and indicators of the BE1-50 Instantaneous Overcurrent Relay. Reference the call-out letters to Figure 2-1. Table 2-1. Controls and Indicators Letter Control or Indicator...
  • Page 12 Figure 2-1. Location of Controls and Indicators BE1-50 Human-Machine Interface...

  • Page 13: General

    SECTION 3 • FUNCTIONAL DESCRIPTION GENERAL BE1-50 Instantaneous Overcurrent Relays are static devices that respond to the current magnitude of the monitored circuit. FUNCTIONAL DESCRIPTION Figure 3-1 is a functional block diagram of the BE1-50 Instantaneous Overcurrent Relay. Figure 3-1. Functional Block Diagram...

  • Page 14: Response Characteristics

    Target indicators may be reset with the manual reset lever. Power Supply Basler Electric enhanced the power supply design for unit case relays. This new design created three, wide range power supplies that replace the five previous power supplies. Style number identifiers for these power supplies have not been changed so that customers may order the same style numbers that they ordered previously.

  • Page 15: Power Supply Status Outputs

    If the power supply voltage fails or falls below requirements, the power supply status output relay will deenergize, closing its contact. If the power supply status output is provided, then auxiliary output contacts are not available. BE1-50 Functional Description...

  • Page 16: Section 4 Installation

    If there is evidence of damage, immediately file a claim with the carrier and notify the Regional Sales Office, or contact the Sales Representative at Basler Electric, Highland, Illinois. In the event the relay is not to be installed immediately, store the relay in its original shipping carton in a moisture and dust free environment.
  • Page 17 Figure 4-1. S1 Case, Panel Drilling Diagram, Semi-Flush Mounting Figure 4-2. S1 Case, Outline Dimensions, Front View BE1-50 Installation...
  • Page 18 Figure 4-3. S1 Case, Single-Ended, Semi-Flush Mounting, Outline Dimensions, Side View Figure 4-4. S1 Case, Single-Ended, Projection Mounting, Outline Dimensions, Side View BE1-50 Installation...
  • Page 19 Figure 4-5. S1 Case, Double-Ended, Semi-Flush Mounting, Outline Dimensions, Side View Figure 4-6. S1 Case, Double-Ended, Projection Mounting, Outline Dimensions, Side View BE1-50 Installation...
  • Page 20 Figure 4-7. S1 Case, Single-Ended, Panel Drilling Diagram, Rear View BE1-50 Installation...
  • Page 21 Figure 4-8. S1 Case, Double-Ended, Panel Drilling Diagram, Rear View BE1-50 Installation...
  • Page 22 Figure 4-9. Outline Dimensions, Rear View BE1-50 Installation...

  • Page 23: Connections

    2 plugs for 20-terminal cases). Removal of the connection plug(s) opens the N.O. trip contact circuits and shorts the N.C. trip contact circuits before opening the power and Sensing Circuits. Figure 4-10. Single-Phase Sensing Input Connections BE1-50 Installation...
  • Page 24 Figure 4-11. Three-Phase and Neutral Sensing Input Connections Figure 4-12. Two-Phase and Neutral Sensing Input Connections BE1-50 Installation...
  • Page 25 Figure 4-13. Three-Phase Sensing Input Connections Figure 4-14. Typical Output Connections (Sensing Input Type E or G and Output F or H) or (Sensing Input Type J and Output J or K) 4-10 BE1-50 Installation...
  • Page 26 Figure 4-15. Typical Output Connections (Sensing Input Type F and Output E or G) BE1-50 Installation 4-11...
  • Page 27 Figure 4-16. Typical Internal Connections Three-Phase and Neutral Sensing, Output Type E, Option 3-6 4-12 BE1-50 Installation...
  • Page 28 Figure 4-17. Typical Internal Connections Three-Phase and Neutral Sensing, Multiple Output Relays BE1-50 Installation 4-13...
  • Page 29 Figure 4-18. Typical Internal Connections Single-Phase, Output E, Option 3-5 4-14 BE1-50 Installation...

  • Page 30: Section 5 Testing

    If there is evidence of damage, immediately file a claim with the carrier and notify the Regional Sales Office, or contact the Sales Representative at Basler Electric, Highland, Illinois. In the event the relay is not to be installed immediately, store the relay in its original shipping carton in a moisture and dust free environment.
  • Page 31 If present, the target indicator for the tested phase (or neutral) should be actuated. Step 6. Repeat Steps 2 through 5 for each phase and neutral as necessary for your style relay. (Neutral sensing ranges may be different than the phase sensing range.) BE1-50 Testing...

  • Page 32: Section 6 Maintenance

    TEST PLUG Test plugs (Basler part number 10095 or G.E. part number XLA12A1) provide a quick, easy method of testing relays without removing them from their case. Test plugs are simply substituted for the connection plugs.
  • Page 33 Corrected Figure 2-1 from “Instantaneous Undercurrent Relay” to “Instantaneous Overcurrent Relay.” Added new power supply information to Section 3 starting with “Basler Electric enhanced the power supply design...” Divided Section 4, Installation into two sections Section 4, Installation and Section 5, Testing . Added new dimension figures to include all options available (S1 Single-Ended and Double-Ended, and both mounting positions) to Section 4.
