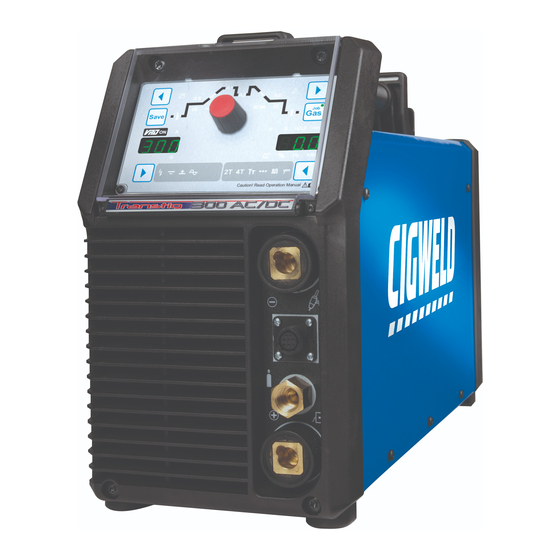

CIGWELD Transtig 220 AC/DC Service Manual

Hide thumbs Also See for Transtig 220 AC/DC:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
220AC/DC
300AC/DC

Service Manual

TRANSTIG

welDING MAChINe

Revision: AB
Operating Features:
Art # A-12276
Issue Date: March 4, 2014
Manual No: 0-5292

Advertisement

Table of Contents
loading

Related Manuals for CIGWELD Transtig 220 AC/DC

Summary of Contents for CIGWELD Transtig 220 AC/DC

  • Page 1: Welding Machine

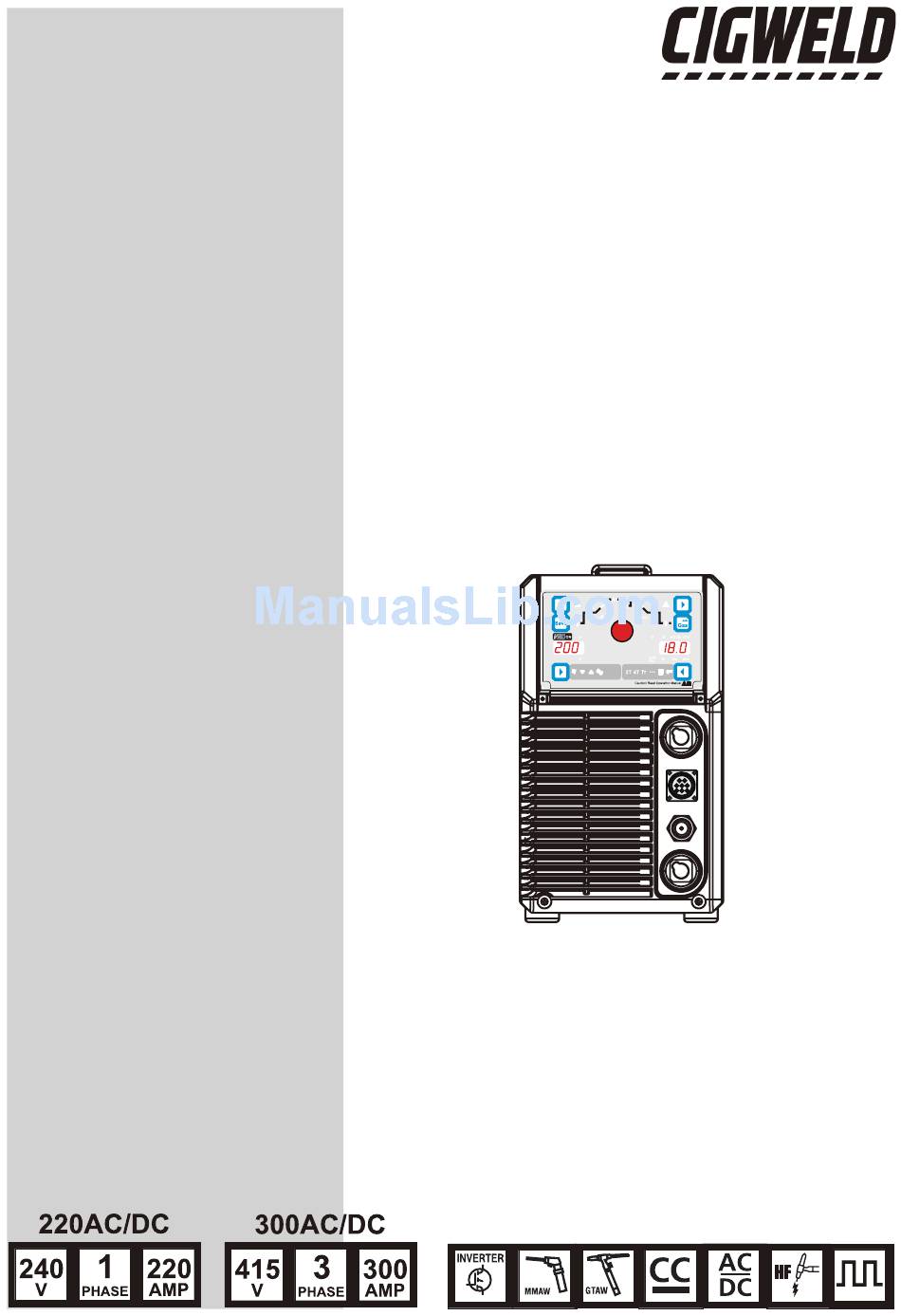

    220AC/DC TRANSTIG 300AC/DC welDING MAChINe Art # A-12276 Service Manual Revision: AB Issue Date: March 4, 2014 Manual No: 0-5292 Operating Features:...
