INSTRUCTIONS–PARTS LIST

This manual contains important

warnings and information.

READ AND KEEP FOR REFERENCE.

INSTRUCTIONS

– For Water-Based Materials Only –

ELECTRIC TEXTURE SPRAYER WITH COMPRESSOR

TexSpray

100 psi (0.7 MPa, 7 bar) Maximum Working Pressure

Power

Model

Description

120V,

231780

Sprayer Model 231801, Series B

60 Hz

with 1-in. fluid hose, 3/8-in. air hose,

and Trigger Gun

231782

Sprayer Model 231801, Series B

with 1-in. fluid hose, 3/8-in. air hose,

and Flex Gun

231783

Sprayer Model 231801, Series B

with 1-in. fluid hose, 3/8-in. air hose,

and 3-ft Pole Gun

240V,

231788

Sprayer Model 231803, Series B

50 Hz

with 1-in. fluid hose, 3/8-in. air hose,

and Trigger Gun

231790

Sprayer Model 231803, Series B

with 1-in. fluid hose, 3/8-in. air hose,

and Flex Gun

231791

Sprayer Model 231803, Series B

with 1-in. fluid hose, 3/8-in. air hose,

and 3-ft Pole Gun

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Compact HP

Model 231780 shown

COPYRIGHT 1997, GRACO INC.

Graco Inc. is registered to I.S. EN ISO 9001

308718

First choice when

quality counts.

Rev. F

7068B

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the TexSpray Compact HP and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco TexSpray Compact HP

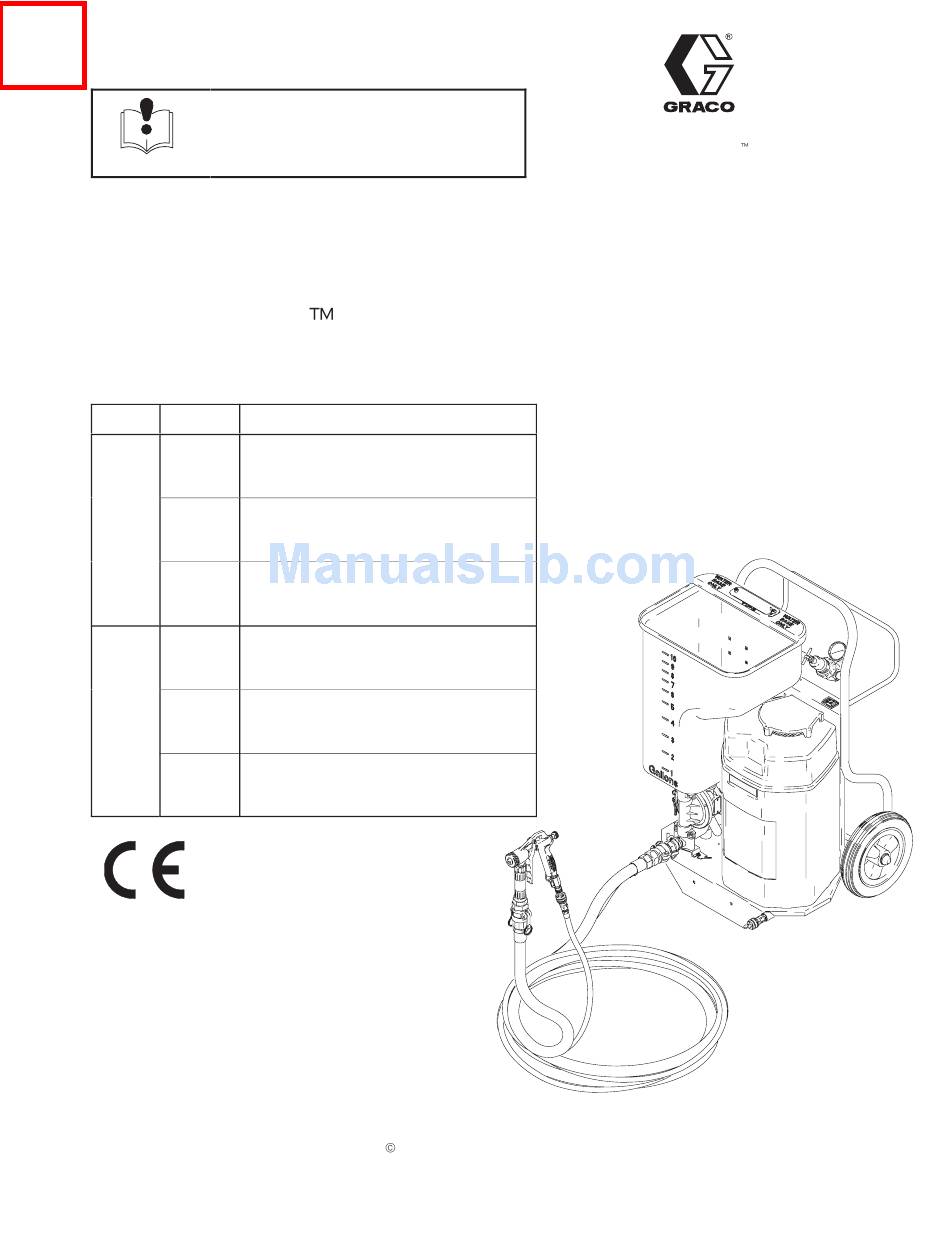

Page 1 Sprayer Model 231803, Series B with 1-in. fluid hose, 3/8-in. air hose, and 3-ft Pole Gun 7068B Model 231780 shown GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1997, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
Page 2: Table Of Contents
Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not expose the system to rain. Always store the system indoors.
Page 3 WARNING TOXIC FLUID HAZARD Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin, inhaled, or swallowed. Know the specific hazards of the fluid you are using. Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and national guidelines.
Page 4: Component Identification And Function
Component Identification and Function Air outlet Provides quick disconnect connection for air supply to spray gun Pump outlet fitting Provides connection for hose and fluid supply to spray gun Air pressure regulator Adjusts air pressure to control air pressure to pump ON/OFF switch Power switch that controls 120/240V AC power to sprayer Compressor...
Page 5: Preparation
Preparation Compressor Break-in WARNING The first time you use the system, run the compressor under no load for 15 minutes to break it in, improve its PRESSURIZED EQUIPMENT HAZARD performance, and lengthen its life. The system pressure must be manually relieved to prevent the system from starting or spraying 1.
Page 6 Preparation Grounding and Electrical Requirements System Setup 1. Connect the hoses and gun as shown See Fig. 6. WARNING Improper installation or alteration of the grounding plug will result in a risk of electric shock, fire or explosion that could cause serious injury or death. Extension Cords Use only an extension cord with an undamaged, 3-prong plug.
Page 7 Preparation Auxiliary Air Compressor Removing and Installing the Hopper 1. To remove the hopper (J), loosen the knob (P) until An external air compressor may be connected about 1 in. of thread shows. Lift the hopper straight (adapter included) to the auxiliary air compressor port up off the unit.
Page 8 Preparation Operation Characteristics Always start the system with the compressor air relieved. How to relieve compressor pressure: Be sure the gun air valve (423) and air restrictor valve (424) are open. This relieves compressor air every time you shut off the system. See Fig. 9. Air bleeds from the gun nozzle when the gun air valve (423) is open.
Page 9 Preparation Wetting the Hose Before Pumping Texture Mixing the Material Material CAUTION Wet the inside of the hose before each use to flush out sediment and to prevent the texture material from This system is designed for use with only certain packing out the hose.
Page 10: Startup
Startup Prime the System 1. Fill the hopper (J) with the prepared texture material. 2. Install a tip. See the Tip Selection Chart on page 12. 3. Open the gun air valve (423) to be sure air pressure is relieved, then close it. The system primes easier if no air is supplied to the gun.
Page 11 Notes 308718...
Page 12: Spray Techniques
Spray Techniques Tip Selection Chart Adjusting the System Sufficient fluid output (volume and pressure) and good Application Tip Orifice Air Volume atomization require testing to balance the compressor 1/8 in. high air to the gun and pump and proper tip selection. Keep in mind these important points when adjusting the gun: Simulated 3/16 in.
Page 13 Spray Techniques To Get Less Material Preventing Material Surge Try any one or a combination of these methods: To prevent material surge at the beginning of a spray pattern, slowly squeeze the trigger to the fully triggered Screw in the gun fluid regulator knob (418). position while moving the gun quickly.
Page 14: Shutdown And Cleanup
Shutdown and Cleanup NOTE: Keep the pump and hose clean when switching See Fig. 16 and Fig. 17 between texture, knockdown, and orange peel 1. Be sure the compressor pressure is relieved by applications. A dirty pump can release a piece of opening gun air valve (423).
Page 15 Shutdown and Cleanup 10. Keep pump wet during non-use. Pour 12 oz. (360 ml) of clean water into the hopper drain. NOTE: In cold weather, store the system where it will not freeze. If it does freeze, thaw it thoroughly open before using it.
Page 16: Pump Maintenance
Pump Maintenance For pump maintenance, troubleshooting, and repair, see texture pump instruction manual 309009. Troubleshooting See Pressure Relief Procedure on page 5. PROBLEM CAUSE SOLUTION Compressor not starting Trapped air pressure Relieve air pressure by connecting air hose and opening gun air valve. Improper power supply Connect to power supply rated for your sprayer.
Page 17 Troubleshooting PROBLEM CAUSE SOLUTION No material output from pump Stalled air valve Reset the pump as follows: (continued) 1. Open air to the gun. 2. Turn the unit off. 3. Turn the ON/OFF switch ON, and trigger the gun into the hopper until there is a solid stream of texture material.
Page 18 Troubleshooting PROBLEM CAUSE SOLUTION Not enough air pressure to pump Shut off air at the gun, and increase Speed of application too slow air pressure to the pump to maxi- mum. Turn regulator clockwise to increase. Material too thick Material must be mixed thoroughly to a consistency that immediately folds back in as you draw your fin- ger through the surface of the ma-...
Page 19 Notes 308718...
Page 20: Removing And Reinstalling Compressor
Removing and Reinstalling Compressor See Fig. 18 WARNING 3. Remove the pump foot screws on one end of the pump (35), and loosen the foot screws on the HOT SURFACE HAZARD other end of the pump. Move the pump out of the Be sure the compressor duct work is way.
Page 21 If you are rebuilding the compressor (18), see DeVILBISS manual OEM–4000–A. 8. Tip the TexSpray onto its back. Graco offers repair kits for the two-cylinder 9. Loosen the hose clamps (28), and pull out the compressor. The repair kits are listed in Accessories hose (31).
Page 22: Removing And Inspecting Cooler
Removing and Inspecting Cooler See Fig. 20 WARNING Relieve the pressure. HOT SURFACE HAZARD See Pressure Relief Be sure the compressor duct work is Procedure on page 5. cool before removing it. If the sprayer 2. Loosen the clamp (28) on the hose (29), and was operated recently, it will be very hot remove the hose from the cooler (27).
Page 23 Notes 308718...
Page 24: Wiring Diagram
Parts Drawing Model 231801, Series B and 231803, Series B 23(Ref) 29(Ref) 7083C Wiring Diagram 9 (Ref) white black black white green white 36 (Ref) black green 37 (Ref) 308718...
Page 25: Parts List
Parts List Model 231801, Series B and 231803, Series B with 1-in. fluid hose, 3/8-in. air hose, and gun. Ref. Part No. Description Part No. Description Qty. 192243 FRAME, TexSpray twin 113812 HOSE, air; 3/8 in. x 3 in. 113807 WHEEL, flat-free;...
Page 26: Accessories
Accessories Hose Cleanup Balls 238043 Texture Pump Kit 239753 5 sponge rubber balls to help scrub interior surface of Service parts kit for texture pump assembly. Includes hose during cleanup instructions. Pole Spray Gun 238807 110V/60Hz Compressor Replacement Kit 239743 Rigid 3-ft extension spray gun for spraying hard to Service parts kit for 110V, 60 Hz compressor reach places.
Page 27: Technical Data
Technical Data Maximum air and fluid working pressure ..100 psi Maximum delivery with texture material 1 to 1.5 gpm (0.7 MPa, 7 bar) (3.8 to 5.7 lpm) Air pressure operating range ..25 to 100 psi Dimensions (0.17 to 0.7 MPa, 1.7 to 7 bar)
