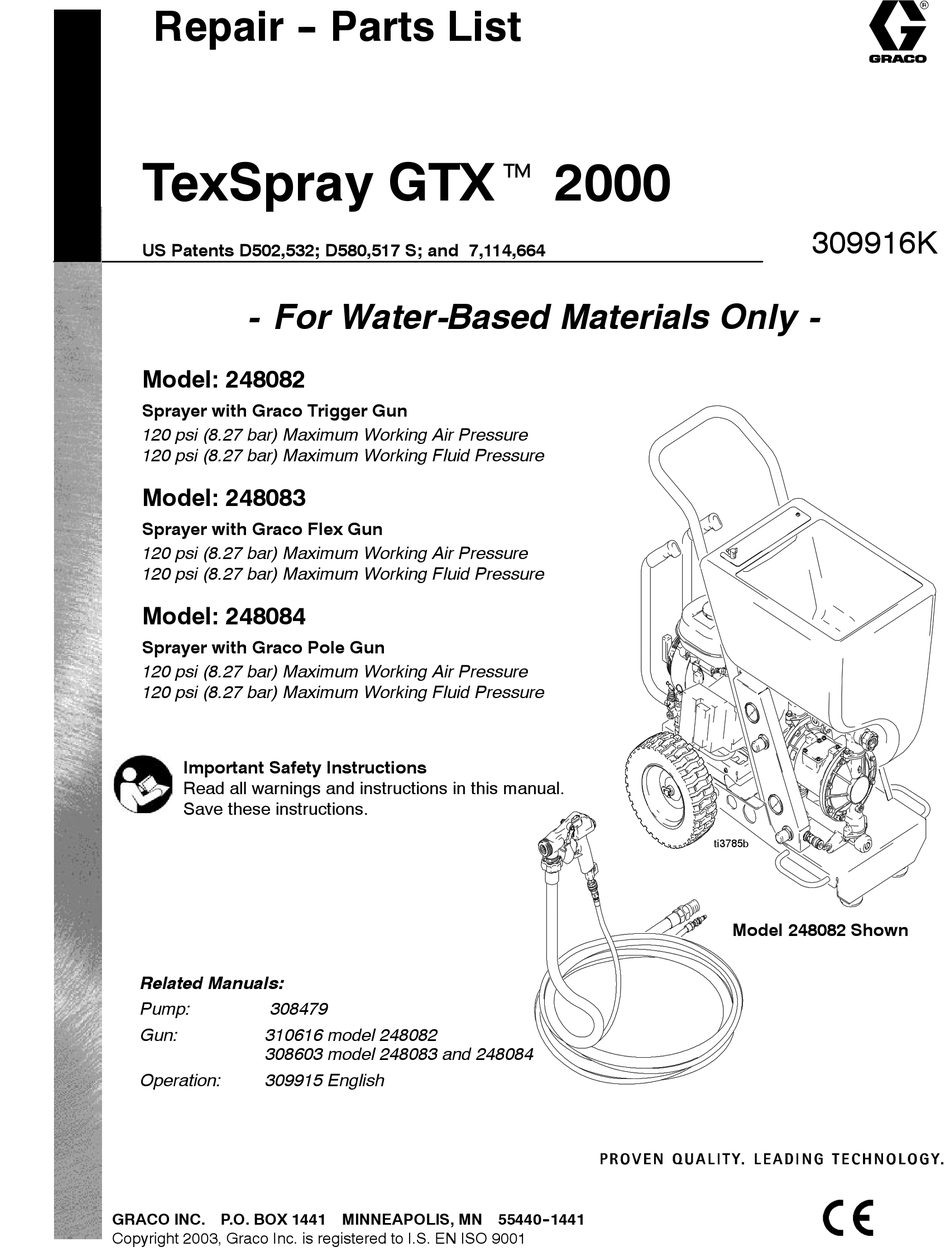

Repair - - Parts List
TexSpray GTXt 2000
US Patents D502,532; D580,517 S; and 7,114,664
- For Water-Based Materials Only -
Model: 248082
Sprayer with Graco Trigger Gun
120 psi (8.27 bar) Maximum Working Air Pressure
120 psi (8.27 bar) Maximum Working Fluid Pressure
Model: 248083
Sprayer with Graco Flex Gun
120 psi (8.27 bar) Maximum Working Air Pressure
120 psi (8.27 bar) Maximum Working Fluid Pressure
Model: 248084
Sprayer with Graco Pole Gun
120 psi (8.27 bar) Maximum Working Air Pressure
120 psi (8.27 bar) Maximum Working Fluid Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Related Manuals:
Pump:
308479
Gun:
310616 model 248082
308603 model 248083 and 248084
Operation:
309915 English
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
309916K
ti3785b
Model 248082 Shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco TexSpray GTX
Summary of Contents for Graco TexSpray GTX
- Page 1 Repair - - Parts List TexSpray GTXt 2000 309916K US Patents D502,532; D580,517 S; and 7,114,664 - For Water-Based Materials Only - Model: 248082 Sprayer with Graco Trigger Gun 120 psi (8.27 bar) Maximum Working Air Pressure 120 psi (8.27 bar) Maximum Working Fluid Pressure Model: 248083 Sprayer with Graco Flex Gun 120 psi (8.27 bar) Maximum Working Air Pressure...
-
Page 2: Table Of Contents
Table of Contents Warnings ........Parts Drawing . -
Page 3: Warnings
WARNING Burn Hazard Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe burns, do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely. Pressurized Equipment Hazard Compressed air can inject in skin. Air tubing rupture can cause injury if disconnect while under pressure. -
Page 4: Component Identification
Component Identification ti3929b 309916... - Page 5 Component Identification Note: Letters A--Z used in the chart below to identify specific components, will also be used throughout the text of this manual to identity those components. English Gas Tank Fuel Valve Choke Throttle Lever Engine ON/OFF Switch Nozzle Storage Hopper Hopper Quick Connect Diaphragm Pump...
-
Page 6: Pressure Relief Procedure
Preparation Installing Hopper 1. To install hopper, position coupler over material Pressure Relief Procedure outlet and slide it straight down, over the fitting, as 1. Turn engine ON/OFF switch (E) OFF. far as it will go. 2. Open gun air valve (23). 2. - Page 7 Preparation Removing and Installing the Compressor Power Pack WARNING Page 3 Page 6 When servicing equipment it may be necessary to ti3892a remove the Compressor Power Pack (Z) from the cart. Removing Compressor Power Pack: 1. Disconnect air line quick connect fitting (Q) from compressor air quick connect fitting (V).
- Page 8 Installing Compressor Power Pack: 4. Slide Compressor Power Pack (Z) forward until front edge meets tabs. Fig. 6. 1. Disconnect one end of air hose from air line quick connect fitting (Q) and the other end of the air 5. Lift and turn motor lock knob (S) until Compressor hose from compressor air quick connect inlet fitting Power Pack (Z) is securely attached to the cart.
- Page 9 Engine Maintenance Changing Engine Oil 5. Tip unit to drain the used oil out of unit. Fig. 9. . WARNING Page 6 1. Relieve Pressure, page 6. 2. Remove compressor power pack, page 7. 3. Place a suitable container to catch the used oil below the compressor power pack.
-
Page 10: Pump Maintenance
Pump Maintenance For pump maintenance, troubleshooting, and repair, see diaphragm pump instruction manual 308479. A parts list and illustration for the pump is also included in this manual. 309916... - Page 11 Removing and Installing Pump 5. Remove 4 bolts holding pump to cart . Fig. 12. WARNING Page 6 Removing Pump Relieve Pressure, page 6. 2. Remove hopper, page 6. 3. Disconnect air lines. Fig. 10. Fig. 12 6. Lift pump straight up off cart. Fig. 13. ti3888a Fig.
- Page 12 Removing and Installing Unloader Valve 3. Remove right angle fitting. Fig. 15. WARNING Pages 2 and 6 Removing Unloader Valve ti3821a Relieve Pressure, page 6. Fig. 15 4. Remove safety valve. 2. Remove air line at compression fitting. Fig. 14. 5.
- Page 13 Removing and Installing Cooler 5. Remove 4 set screws. Fig. 18. WARNING Pages 2 and 6 Removing Cooler Fig. 18 Relieve Pressure, page 6. 6. Remove screws securing bottom to Compressor Power Pack (Z) . Separate the Compressor 2. Remove Compressor Power Pack (Z) , page 7. Power Pack (Z) from the bottom.
- Page 14 Removing and Installing Cooler 7. Remove 4 screws securing cooler in frame bottom. Installing Cooler Fig. 20. NOTE: Clean the cooler whenever the compressor is serviced. 1. Install cooler in frame bottom. 2. Replace screws. 3. Align Compressor Power Pack (Z) with frame bottom.
- Page 15 Removing and Installing Engine 2. Follow steps 2--5, page 13, first. WARNING 3. Remove 4 bolts holding engine to frame. Fig.22. Pages 2 and 6 Installing Engine 1. Install engine on frame. Removing Engine/Compressor Relieve Pressure, page 6. 2. Insert and tighten 4 bolts. ti3887a Fig.
- Page 16 Removing and Installing Feet Removing Feet 3. Remove Compressor Power Pack, page 7. WARNING 4. Remove 9/16 bolt (62) and washer (66) from center of each rubber foot (8). Fig. 23. Page 6 Installing Feet 1. Replace with new rubber foot (8) from kit. Relieve Pressure, page 6.
- Page 17 Removing and Installing Filters 3. Remove foam filter. WARNING 4. Clean filter by rinsing it thoroughly in clean water. Page 6 Note: Worn or damaged filter should be replaced. Use Filter Kit 118627. Removing Filter Installing Filter Relieve Pressure, page 6. 1.
-
Page 18: Troubleshooting
Troubleshooting Before performing any Troubleshooting procedures, follow Pressure Relief Procedure on page 6. PROBLEM CAUSE SOLUTION Compressor not building Open gun air valve (23) Close valve. pressure or poor air flow Air leak Check all fittings and valve/regulator settings. Unloader stuttering, unloading Damaged unloader Replace. - Page 19 Troubleshooting Pump stops pumping Pump in need of repair See texture pump instruction manual 308479. Pulsing or surging material Triggering too fast Slowly squeeze trigger to fully open position while moving gun quickly in a circular motion. Not enough air pressure to pump Shut off air at the gun, and increase Speed of application too slow air pressure to the pump to maxi-...
- Page 20 Parts List Ref. Part No. Description Part No. Description Qty. 116139 GRIP, handle 15C993 LABEL, identification 117630 SCREW, torx, tri--lobe 15C994 LABEL, identification 15C900 SUPPORT, motor, top 15C995 LABEL, warning, compressor 15C889 SUPPORT, motor, bottom 15C996 LABEL, warning, sprayer 15C664 COOLER, air 15C844 COVER, holder, nozzle...
-
Page 21: Parts Drawing
Parts Drawing 14 14b 14c Detail A Detail C & D Detail E (Page 23) (Page 23) Detail B (Page 22) Detail A ti3953b 309916... - Page 22 Parts Drawing Detail B Air Line Components 309916...
- Page 23 Parts Drawing Detail C Pump Elbow Connections Detail D Exhaust Pipe and Connector ti3956a ti3955a Detail E Air Line Connection ti3957a 309916...
-
Page 24: Parts List
Pump Parts List Ref. Part No. Description Part No. Description Qty. 188838 HOUSING, center, aluminum 188842 MANIFOLD, outlet, aluminum 188854 COVER, air valve, aluminum 188607 PLATE, air side, aluminum 116344 SCREW, mach, hex flange hd; 188607 PLATE, fluid side, aluminum M5 X 0.8;... - Page 25 Pump Parts Drawing 11 10{ *402 301* 401* 202* 201* 108* 202* *301 202* *201 202* 309916...
-
Page 26: Technical Data
Technical Data Maximum air working pressure ..120 psi (8.27 bar) Maximum delivery with texture material ..4.0 gpm Maximum working fluid pressure ..120 psi (8.27 bar) (15.14 lpm) Air pressure operating range . - Page 27 Notes 309916...
-
Page 28: Graco Warranty
Graco Warranty Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
