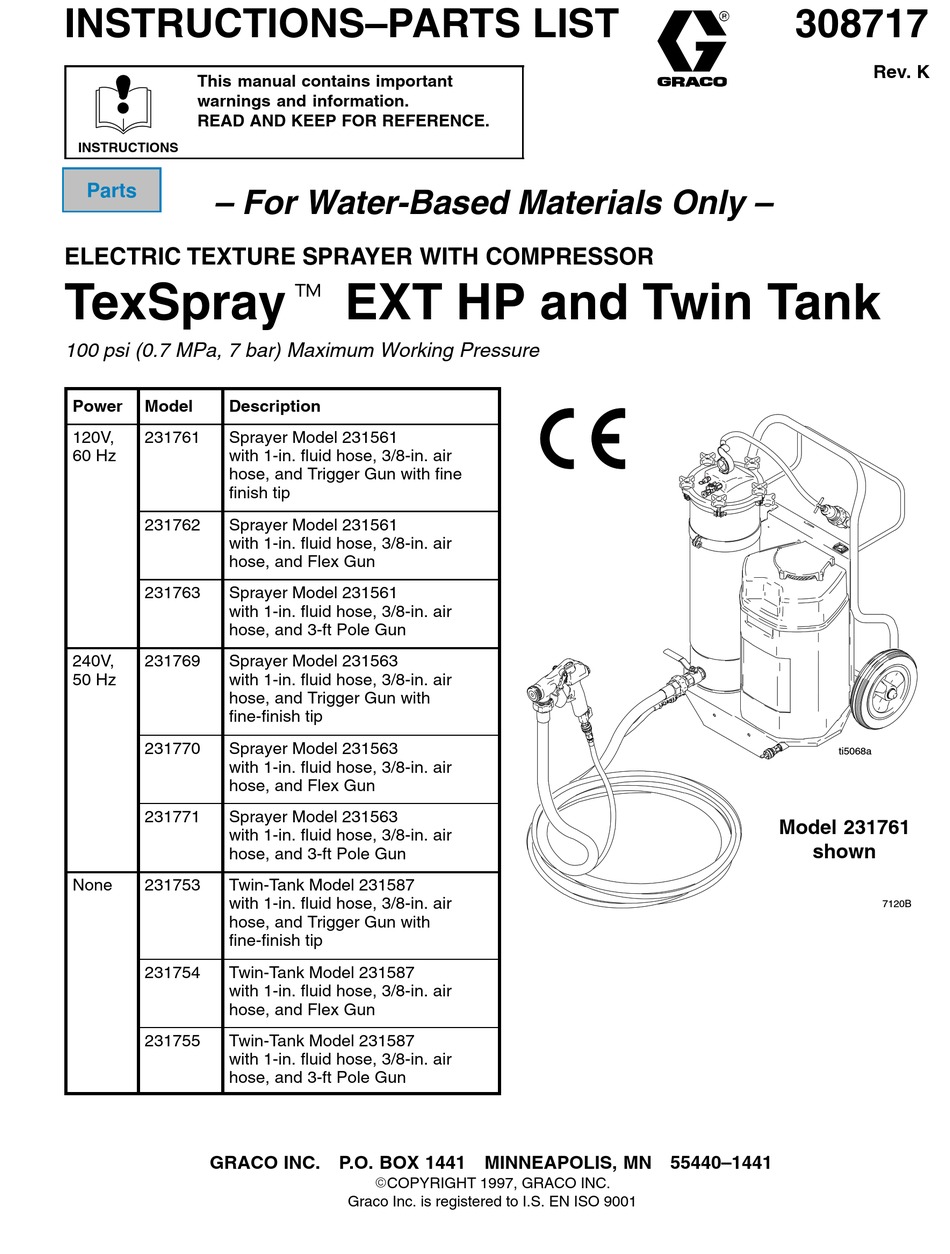

INSTRUCTIONS–PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Parts
– For Water-Based Materials Only –
ELECTRIC TEXTURE SPRAYER WITH COMPRESSOR
TexSprayt EXT HP and Twin Tank
100 psi (0.7 MPa, 7 bar) Maximum Working Pressure
Power
Model
Description
120V,
231761
Sprayer Model 231561
60 Hz
with 1-in. fluid hose, 3/8-in. air
hose, and Trigger Gun with fine
finish tip
231762
Sprayer Model 231561
with 1-in. fluid hose, 3/8-in. air
hose, and Flex Gun
231763
Sprayer Model 231561
with 1-in. fluid hose, 3/8-in. air
hose, and 3-ft Pole Gun
240V,
231769
Sprayer Model 231563
50 Hz
with 1-in. fluid hose, 3/8-in. air
hose, and Trigger Gun with
fine-finish tip
231770
Sprayer Model 231563
with 1-in. fluid hose, 3/8-in. air
hose, and Flex Gun
231771
Sprayer Model 231563
with 1-in. fluid hose, 3/8-in. air
hose, and 3-ft Pole Gun
None
231753
Twin-Tank Model 231587
with 1-in. fluid hose, 3/8-in. air
hose, and Trigger Gun with
fine-finish tip
231754
Twin-Tank Model 231587
with 1-in. fluid hose, 3/8-in. air
hose, and Flex Gun
231755
Twin-Tank Model 231587
with 1-in. fluid hose, 3/8-in. air
hose, and 3-ft Pole Gun
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1997, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308717
Rev. K
ti5068a
Model 231761
shown
7120B
