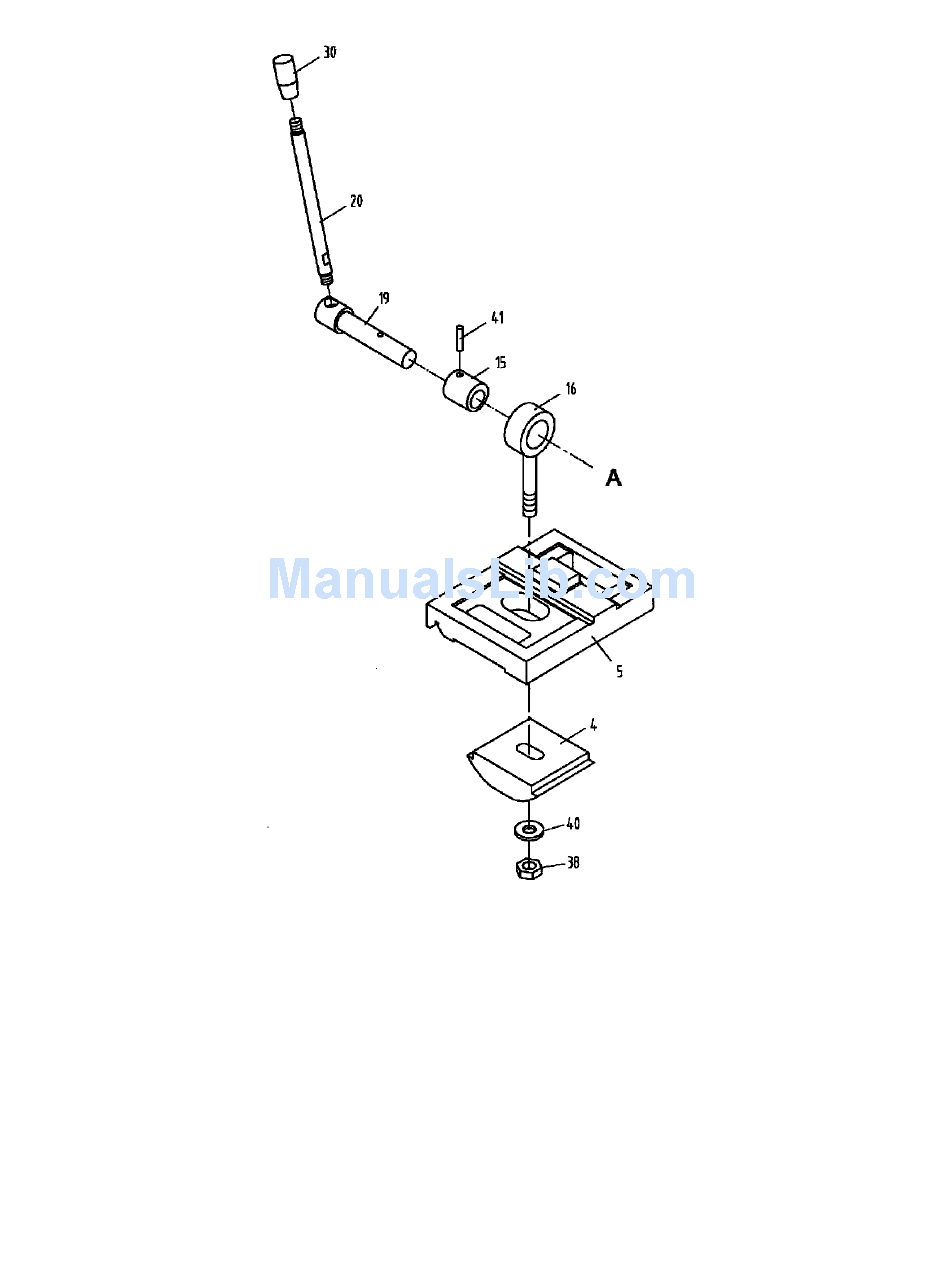

19.1 Tailstock Assembly II – Exploded View

19.2 Tailstock Assembly II – Parts List

Index

Part

4 .............. 08104 ........................ Clamp Plate ............................................................. ...................................... 1

5 .............. 08105G ..................... Base (For GHB-1340A/BDB-1340A) ....................... ...................................... 1

................ C0636A-03104G ....... Base (For GHB-1440A) ........................................... ...................................... 1

15 ............ 08211 ........................ Collar ....................................................................... ...................................... 1

16 ............ 08212 ........................ Screw (For GHB-1340A/BDB-1340A) ..................... ...................................... 1

................ C0636A-03707 .......... Screw (For GHB-1440A) ......................................... ...................................... 1

19 ............ 08213 ........................ Shaft ........................................................................ ...................................... 1

20 ............ 08214 ........................ Lever ....................................................................... ...................................... 1

30 ............ 07508 ........................ Knob ........................................................................ ...................................... 1

38 ............ TS-1540081 .............. Hex Nut .................................................................... M12 ............................... 1

40 ............ TS-2360121 .............. Washer .................................................................... 12 mm ........................... 1

41 ............ GHB1340-41TS......... Pin ........................................................................... 5x25 .............................. 1

Description

Size

Qty
