Wireless lan unit

Important information manual - 82 pages

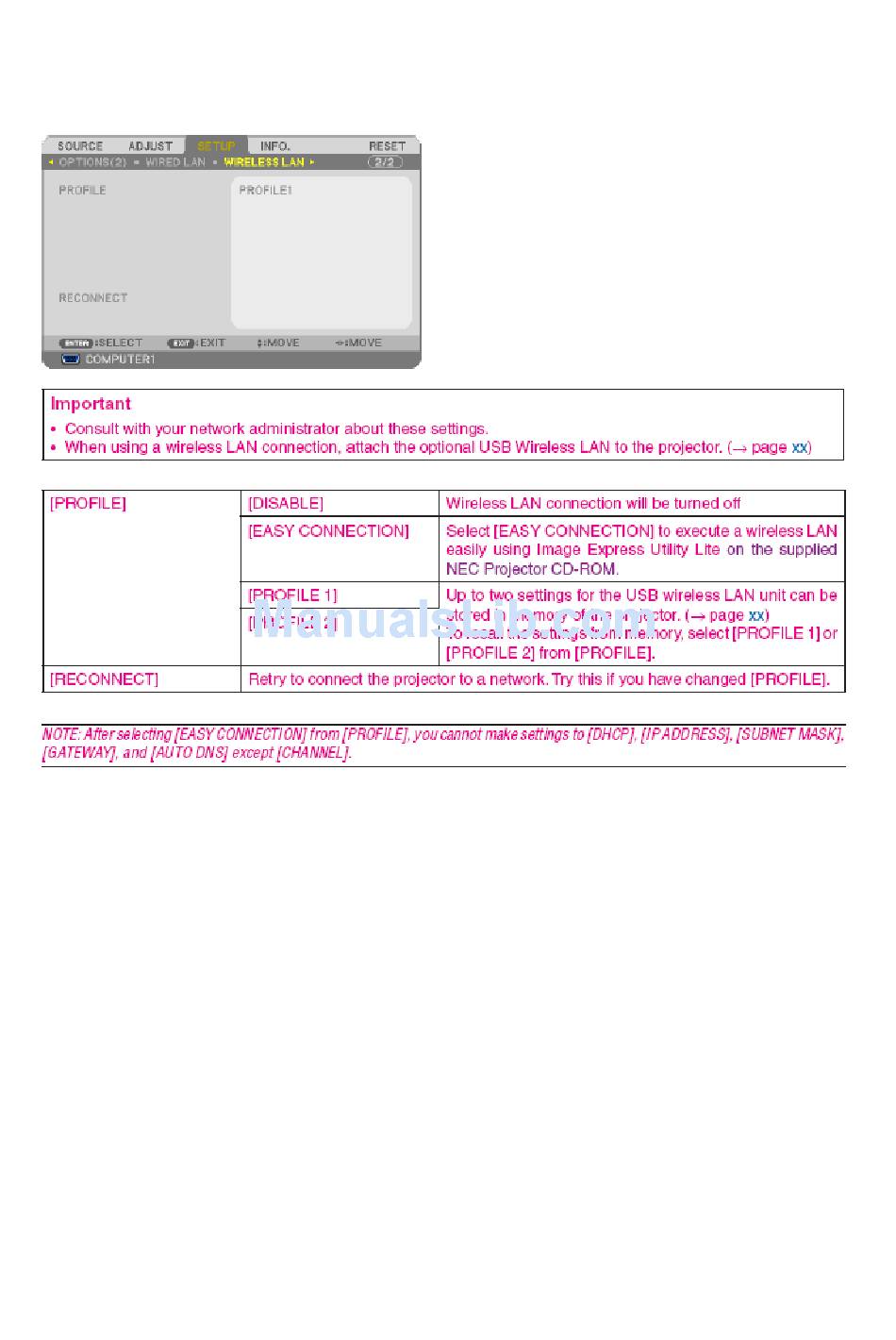

Setting up the Projector for a Wireless LAN Connection (with the Wireless LAN Unit equipped)

[WIRLESS LAN]

Hints on How to Set Up LAN Connection

To set up the projector for a LAN connection:Access the HTTP server function to display the web

browser (→ page xx) and select [NETWORK SETTINGS] → [SETTINGS] → [WIRELESS LAN] →

[PROFILE 1] or [PROFILE 2].Two settings can be set for the USB Wireless LAN Unit.Next select

[SETTINGS] for your selected profile, and set [ENABLE] or [DISABLE] for [DHCP], [IP ADDRESS],

[SUBNET MASK], and [GATEWAY]. Last click [SAVE]. To reflect changes, click the [SETTING] tab

and then click [APPLY]. (→ page xx)

To recall LAN settings stored in the profile number:Use [PROFILE 1] or [PROFILE 2] set on the

HTTP server, from the projector' menu, select [SETUP] → [WIRELESS LAN] → [PROFILE] →

[PROFILE 1] or [PROFILE 2]. Last select [OK] and press the ENTER button. (→ page xx)

To connect a DHCP server:From the projector menu, select [SETUP] → [WIRED LAN] →

[SETTINGS] → [DHCP] → [ON] and press the ENTER button. To specify IP address without using

the DHCP server, use the HTTP server function. (→ page xx)

To set only for wireless LAN (NETWORK TYPE and WEP/WPA):Access the HTTP server function
