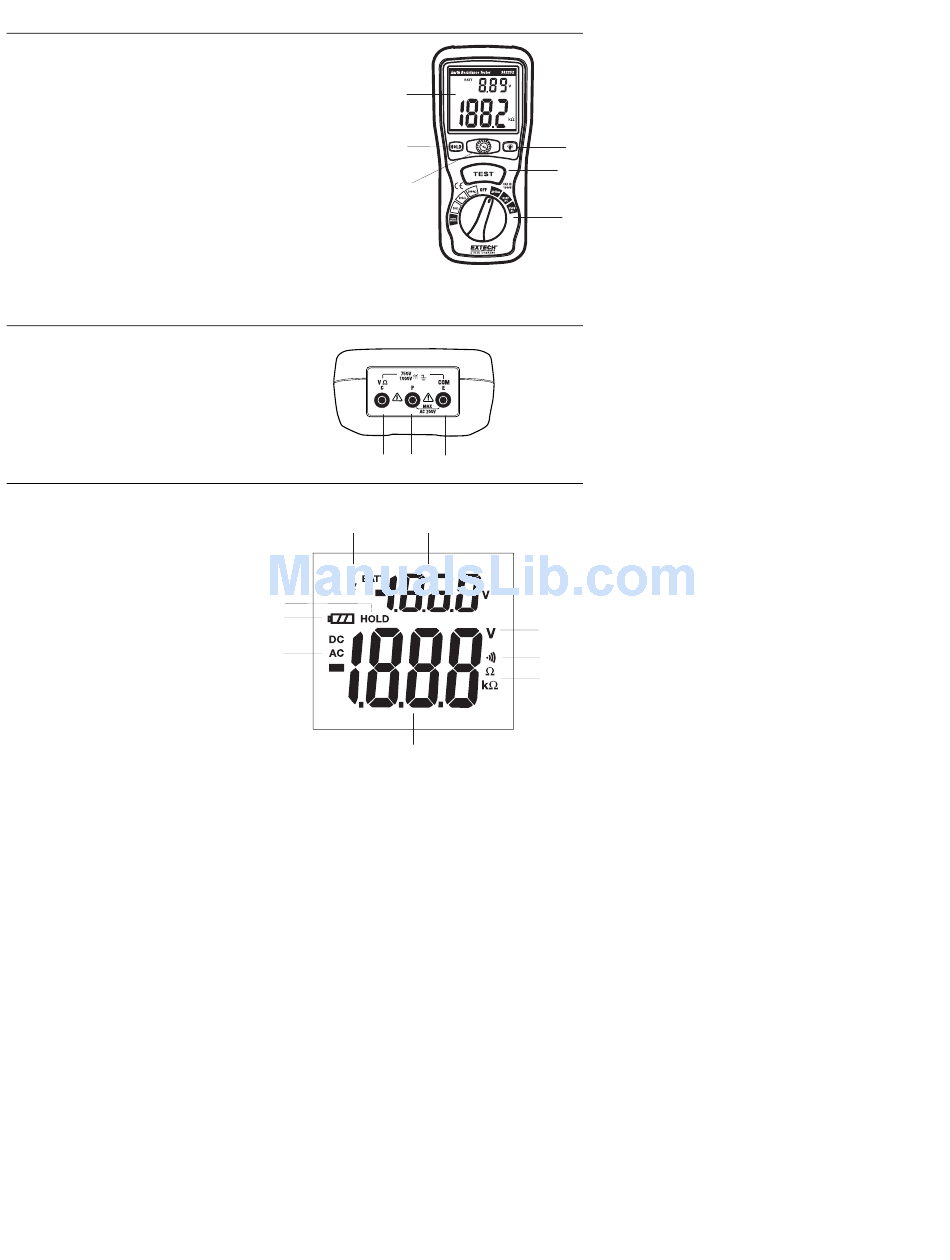

Meter Description

1. Digital Display – See Display Description below
2. HOLD key – Freezes measurement value on
display
3. 0 ADJ control- Adjusts Zero value on display
4. Backlight key – Turns on Backlight
5. TEST key – Enables Earth Resistance and Earth
Voltage Tests
6. Function Selector switch – Selects desired range
and function
Top View
1. VΩ/C Input
2. P Input
3. COM/E Input
Display Description
1. Test status Icon
2. Battery Charge indicator -
3. Voltage Unit indicator
4. Audible Signal Icon
Ω/kΩ Units Indicators
5.
6. Measurement Value
7. AC/DC Voltage Indicators
8. Low Battery Icon
9. HOLD Icon
1
2
3
1 2 3
1 2
9
8
7
6
Model 382252
3
4
5
6
3
4
5
Ver. 1.1 08/09
