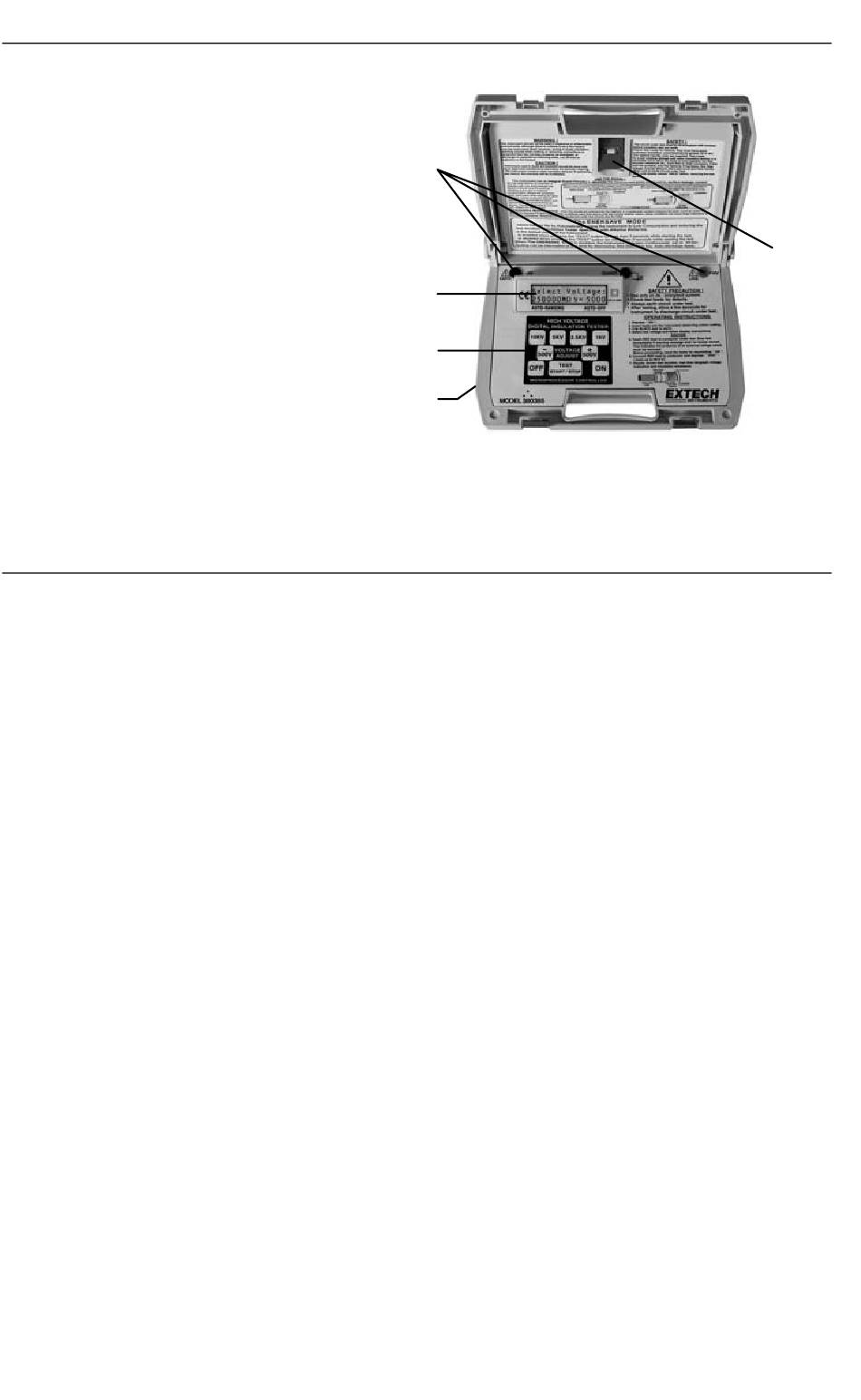

Meter Description
1.
Test lead jacks
2.
Dot Matrix Display
3.
Keypad
4.
Battery compartment (on bottom)
5.
Test lead compartment latch
Preparation
Warning: Ensure that the circuit under test does not include devices or components that
can be damaged by 10KVDC; such devices include power factor correction capacitors, low
voltage mineral insulated cables, electronic light dimmers, ballasts and starters for
fluorescent lamps.
Connecting the Test Leads to the meter
The Black (Earth), Red (Line), and Green (Guard) test leads connect to the meter
directly above the dot matrix display (the meter jacks are color coded). NOTE: The Green
(Guard) lead is attached to the Red lead and should be used (refer to applications section
next).
Connecting the Test Leads to the device under test
The Black (Earth) lead is connected to the conductive material. The Red (Line) and
Green (Guard) leads are connected to insulating, sheathing, and covering material as
shown in the following applications section.
1
2
3
4
4
5
380385 V1.5 3/04
