Simulating Discrete Alarms

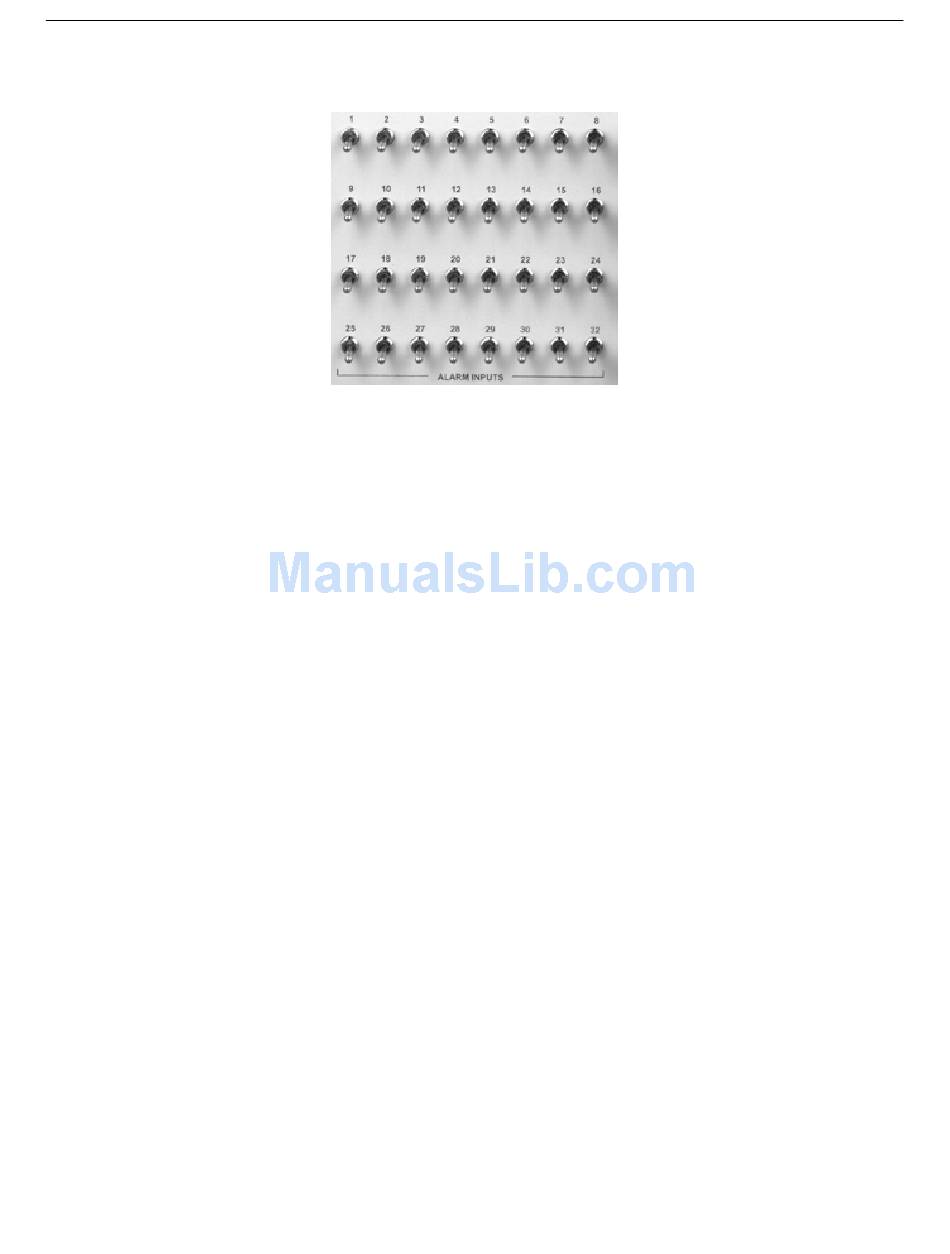

Fig. 4. Alarm input switches
The toggle switches on the control panel of the Test Fixture simulate discrete alarm inputs. The number of toggle switches
will depend on the Test Fixture purchased.
The toggle switches are OFF when in the DOWN position, and ON when in the UP position.
To simulate a discrete alarm, move a toggle switch to the on position. The NetGuardian will detect the input as a discrete alarm
at the alarm point indicated by the number on the toggle switch.
