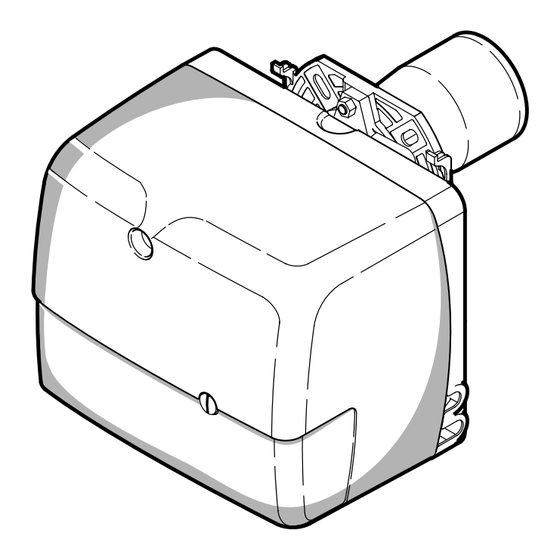

- Page 1 Installation, use and maintenance instructions Kerosene and gas oil burners One stage operation CODE MODEL TYPE 8099085 SIME MACK 1 EI 515 T3K 8099090 SIME MACK 2 EI 515 T5K 2902764 (1)
-
Page 3: Table Of Contents
INDEX BURNER DESCRIPTION ... . . 1 WORKING ..... . . 1.1 Burner equipment . -
Page 4: Technical Data
2. TECHNICAL DATA 2.1 TECHNICAL DATA Model MACK 1 EI MACK 2 EI 2 – 3.2 kg/h 2.8 – 3.9 kg/h Output - Thermal power (with air at 20 °C) 24 – 38.3 kW 33.6 – 46.6 kW (H i = 11.97 kWh/kg) Kerosene, viscosity 1.6 –... -
Page 5: Installation
3. INSTALLATION THE BURNER MUST BE INSTALLED IN CONFORMITY WITH LEGISLATION AND LOCAL STANDARDS. 3.1 BOILER FIXING Put on the flange (1) the screw and two nuts, (see fig. 2). Widen, if necessary, the insulating gasket holes (5). Fix the flange (1) to the boiler door (4) using screws (2) and (if necessary) the nuts (3) interposing the insulating gasket (5) , (see fig. -
Page 6: Hydraulic Systems
3.2 HYDRAULIC SYSTEMS The burner is designed to allow entry of the flexible oil-lines on either side of the burner. WARNING: Fig. 4 It is necessary to install a filter on the fuel supply line. The standard filter code 6276200 and that one with recirculation code 6276201 are available on request. -
Page 7: Electrical Wiring
3.3 ELECTRICAL WIRING NOTES: WARNING – Wires of min. 1 mm section. DO NOT EXCHANGE NEUTRAL WITH PHASE (Unless requested otherwise by local standards and legislation). 50Hz 230V – The electrical wiring carried out by the installer must be in compliance with the rules in force in the Country. -
Page 8: Working
ADJUSTMENTS CARRIED OUT IN FACTORY FOR SIME BOILERS The values shown in the table are measured on a SIME boiler (as per EN 267). They refer to 12.5% CO at sea level and with kerosene and gas oil and room temperature of 20 °C. -
Page 9: Nozzles Recommended
4.2 NOZZLES RECOMMENDED: Fig. 10 Monarch type R - NS; Delavan type W - E Steinen type H - Q ; Danfoss type H - S. 4.3 MAINTENANCE POSITION Access to the combustion head, electrodes and noz- zle, (see fig. 10). Remove the burner out of the boiler, after loosing the fixing nut to the flange. -
Page 10: Pump Pressure
It is important to take account of the fact that the air output of the fan differs according to whether the burner has its cover fitted or not. Therefore we recommended to proceed as follows: Adjust the air damper as indicated in the table. Mount the cover. -
Page 11: Faults / Solutions
6. FAULTS / SOLUTIONS Here below you can find some causes and the possible solutions for some problems that could cause a fail- ure to start or a bad working of the burner. A fault usually makes the lock-out lamp light which is situated inside the reset button of the control box (3, fig. - Page 12 Fonderie Sime S.p.A. - via Garbo, 27 - 37045 Legnago (Vr) - Italy Tel. +39 / 0442 631111 - Export Division fax number +39 / 0442 631293 - Sime Service fax number +39 / 0442 631292...
