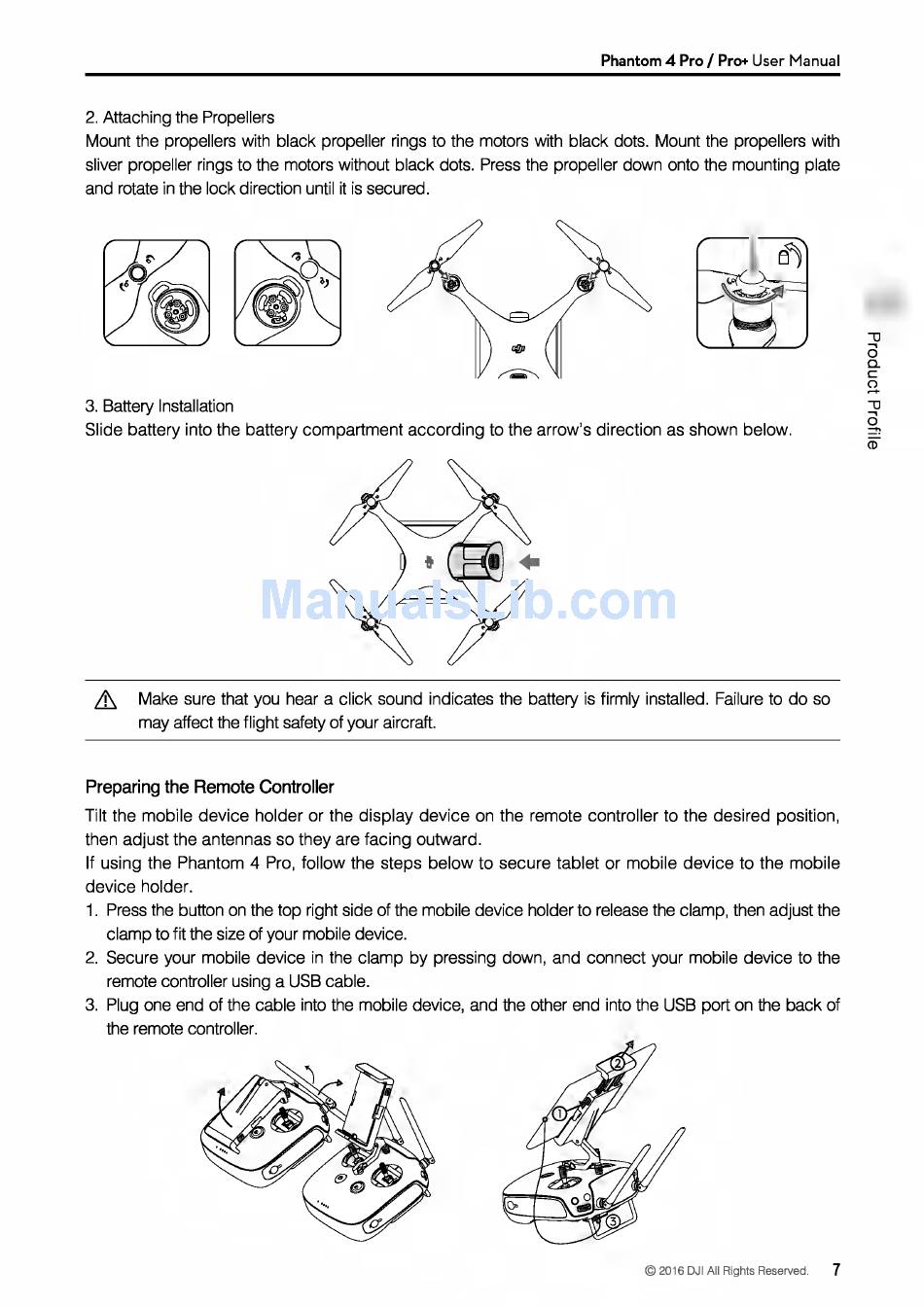

2. Attaching the Propellers
Mount the propellers with black propeller rings to the motors with black dots. Mount the propellers with
sliver propeller rings to the motors without black dots. Press the propeller down onto the mounting plate
and rotate in the lock direction until it is secured.
3. Battery Installation
Slide battery into the battery compartment according to the arrow's direction as shown below.
&
Make sure that you hear a click sound indicates the battery is firmly installed. Failure to do so
may affect the flight safety of your aircraft.
Preparing the Remote Controller
Tilt the mobile deviee holder or the display deviee on the remote controller to the desired position,
then ad just the antennas so they are facing outward.
If using the Phantom 4 Pro, follow the steps below to secure tablet or mobile deviee to the mobile
deviee holder.
1. Press the button on the top right side of the mobile deviee holder to release the clamp, then ad just the
clamp to fit the size of your mobile deviee.
2. Secure your mobile deviee in the clamp by pressing down, and connect your mobile deviee to the
remote controller using a USB cable.
3. Plug one end of the cable into the mobile deviee, and the other end into the USB port on the back of
the remote controller.
©
