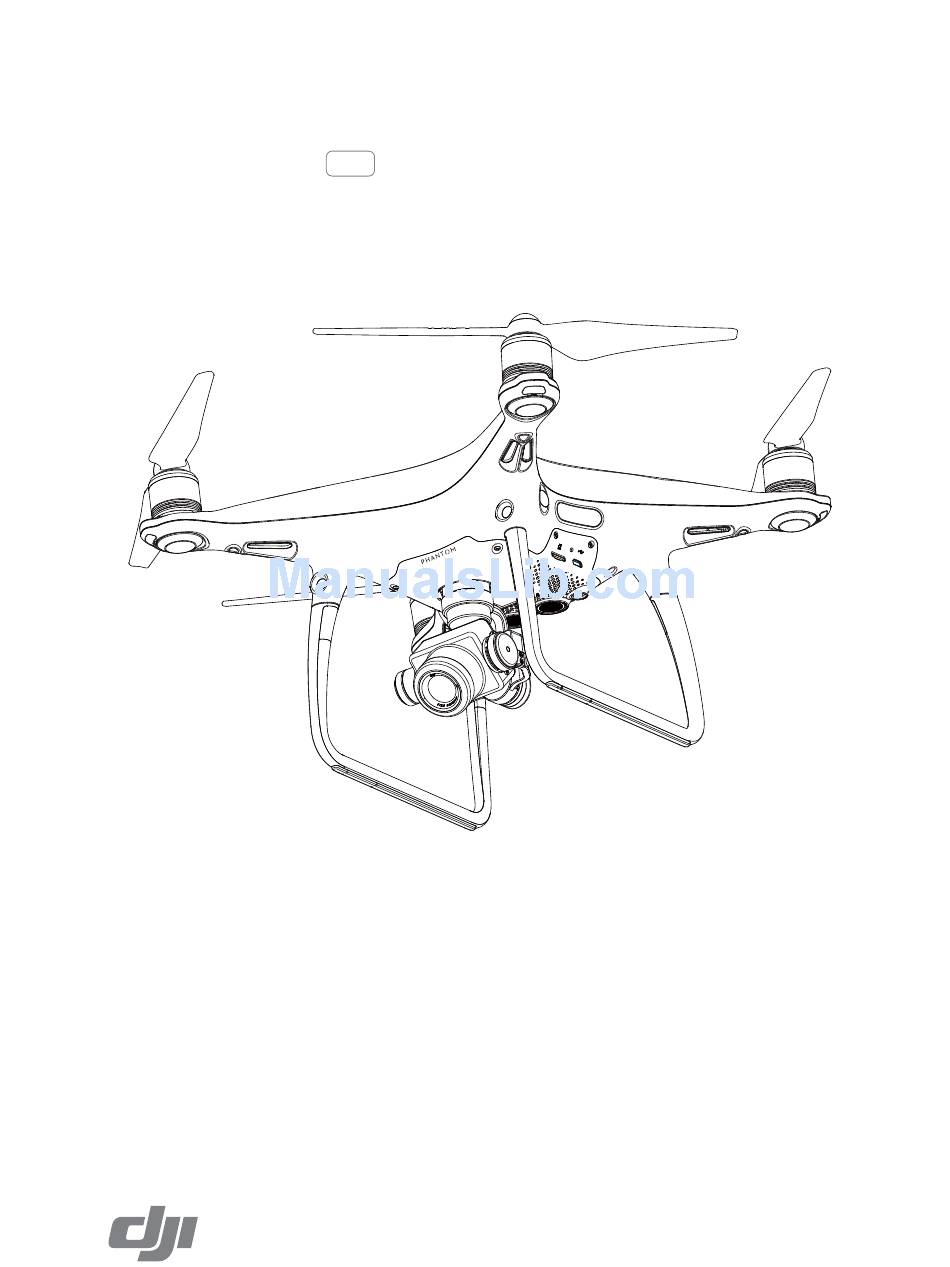

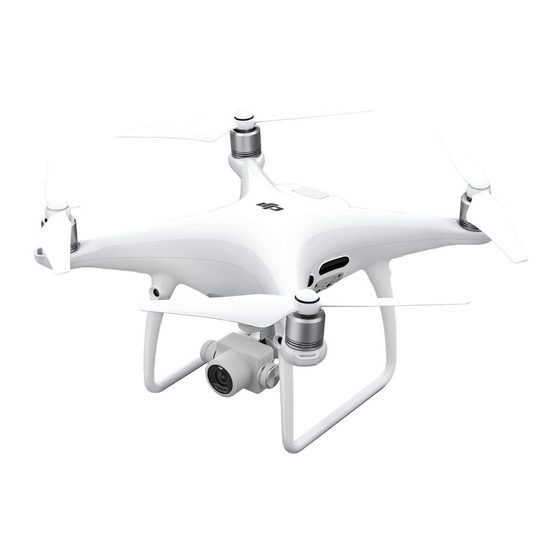

  • Page 1 PHANTOM 4 PRO/PRO User Manual V1.0 2016.10...

  • Page 2: Using This Manual

    Disclaimer refer to the User Manual for more details. Watch the Tutorial Videos Please watch the tutorial videos at the link below, which demonstrates how to use Phantom 4 Pro / Pro+ safely: http://www.dji.com/product/phantom-4-pro/info#video Download the DJI GO App The Android version of the DJI GO app is compatible with Android 4.1.2 or later.

  • Page 3: Table Of Contents

    Contents Using this manual Legends Read Before the First Flight Video Tutorials Download the DJI GO App Introduction Features Highlights Preparing the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return-to-Home (RTH) TapFly ActiveTrack...
  • Page 4 Flight Environment Requirements Flight Limits and No-Fly Zones Calibrating the Compass Auto Takeoff and Auto Landing Starting/Stopping the Motors Flight Test Appendix Aircraft Status Indicator Description Firmwares Update Intelligent Flight Mode After-Sales Information FCC Compliance © 2016 DJI. All Rights Reserved.
  • Page 5 This section introduces the Phantom 4 Pro / Pro+ and lists the components of the aircraft and remote controller. © 2016 DJI. All Rights Reserved.

  • Page 6: Introduction

    Dual frequency makes the Features Highlights Camera and Gimbal: With the Phantom 4 Pro / Pro+, you’re shooting 4K video at up to 60 frames per second and capturing 20 megapixel photos that look crisper and cleaner than ever attributed to its up- to-date 1-inch CMOS Exmor R sensor.
  • Page 7 Phantom 4 Pro/Pro+ User Manual 2. Attaching the Propellers Mount the propellers with black propeller rings to the motors with black dots. Mount the propellers with sliver propeller rings to the motors without black dots. Press the propeller down onto the mounting plate and rotate in the lock direction until it is secured in its position.

  • Page 8: Aircraft Diagram

    Phantom 4 Pro/Pro+ User Manual Aircraft Diagram [ 1 ] [1] GPS [ 2 ] [ 3 ] [2] Propeller [ 4 ] [ 6 ] [3] Motors [4] Front LED Indicator [ 5 ] [5] Gimbal and Camera [6] Vision Positioning and Obstacle...
  • Page 9 [15] [16] [9] Camera Settings Dial Turn the dial to adjust camera settings. (Only functions when the remote controller is [14] connected to a mobile device running the DJI [10] [13] GO app.) [10] Intelligent Flight Pause Button [11] [12] Press once to allow the aircraft to exit from TapFly, ActiveTrack and Advanced mode.
  • Page 10 Phantom 4 Pro/Pro+ User Manual Remote Controller Diagram (GL300E) [1] Antennas Relays aircraft control and video signal. [2] Display Screen Display device with Android system to run DJI GO app. [3] Speaker Outputs the display device voice. [4] Control Stick Controls the orientation and movement of the aircraft.
  • Page 11 Phantom 4 Pro/Pro+ User Manual [14] Microphone [18] Micro USB Port Records during shooting if this Reserved port. function is enabled. [19] Micro SD Slot [15] Flight Mode Switch Provide extra storage space for the display Switch between P-mode, S-mode, device, maximum supporting 128 GB.

  • Page 12: Aircraft

    Aircraft This section introduces the features of the Flight Controller, Vision Positioning System, and the Intelligent Flight Battery © 2016 DJI. All Rights Reserved.

  • Page 13: Flight Controller

    50 meters is required in windless conditions. Flight Mode Switch” on Page 33 for more information. © 2016 DJI. All Rights Reserved.

  • Page 14: Flight Status Indicator

    Phantom 4 Pro/Pro+ User Manual Flight Status Indicator The Phantom 4 Pro / Pro+ has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are Aircraft Status Indicator Front LED The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is turned on to indicate the front (or nose) of the aircraft.
  • Page 15 Failsafe. The aircraft cannot avoid obstruction during the Failsafe RTH when Obstacle Sensing system is the DJI GO app and enter “Camera” and select “MODE > Advanced Settings > Failsafe mode” to set the Failsafe altitude. User cannot control the aircraft while the aircraft is ascending to its failsafe altitude. However, user can press RTH button once to exit ascending and regain control.

  • Page 16: Dji Intelligent Flight Battery

    Use the RTH button on the remote controller (refer to “RTH button” on page 33 for more information) or tap the RTH button in the DJI GO app and follow the on-screen instructions when GPS is available to initiate Smart RTH. The aircraft will then automatically return to the last recorded Home Point. You may use the remote controller’s control sticks to control the aircraft’s position to avoid a collision during the Smart...
  • Page 17 Phantom 4 Pro/Pro+ User Manual The DJI GO app display will Critical Low The aircraft Aircraft status Allow the aircraft to battery level must land indicator blinks descend and land start to descend. The remote warning immediately. RED quickly. automatically.

  • Page 18: Using The Remote Controller

    Phantom 4 Pro/Pro+ User Manual Obstacle Avoidance During RTH Aircraft can now sense and actively attempt to avoid obstacle during FailSafe RTH, provided that the light condition is ideal for the Obstacle Sensing System. The details on how the aircraft will behave during obstacle avoid is listed below: 1.
  • Page 19 Phantom 4 Pro/Pro+ User Manual Launch DJI GO app and tap at the bottom of the camera view, read and understand the prompt statements. Safe to fly (GPS) Safe to fly (GPS) OPTI OPTI MENU Smart to follow Normal mode...
  • Page 20 Phantom 4 Pro/Pro+ User Manual OPTI Safe to fly (GPS) ISO 100 1/320 EV 0 4821 JPEG MENU STOP Note that the aircraft will also automatically adjust its speed when it senses there is obstacle at the front navigate the aircraft between the obstacles. Meanwhile the FailSafe procedure will override the TapFly...

This manual is also suitable for:

Phantom 4 pro+
