FREQUENTLY ASKED QUESTIONS

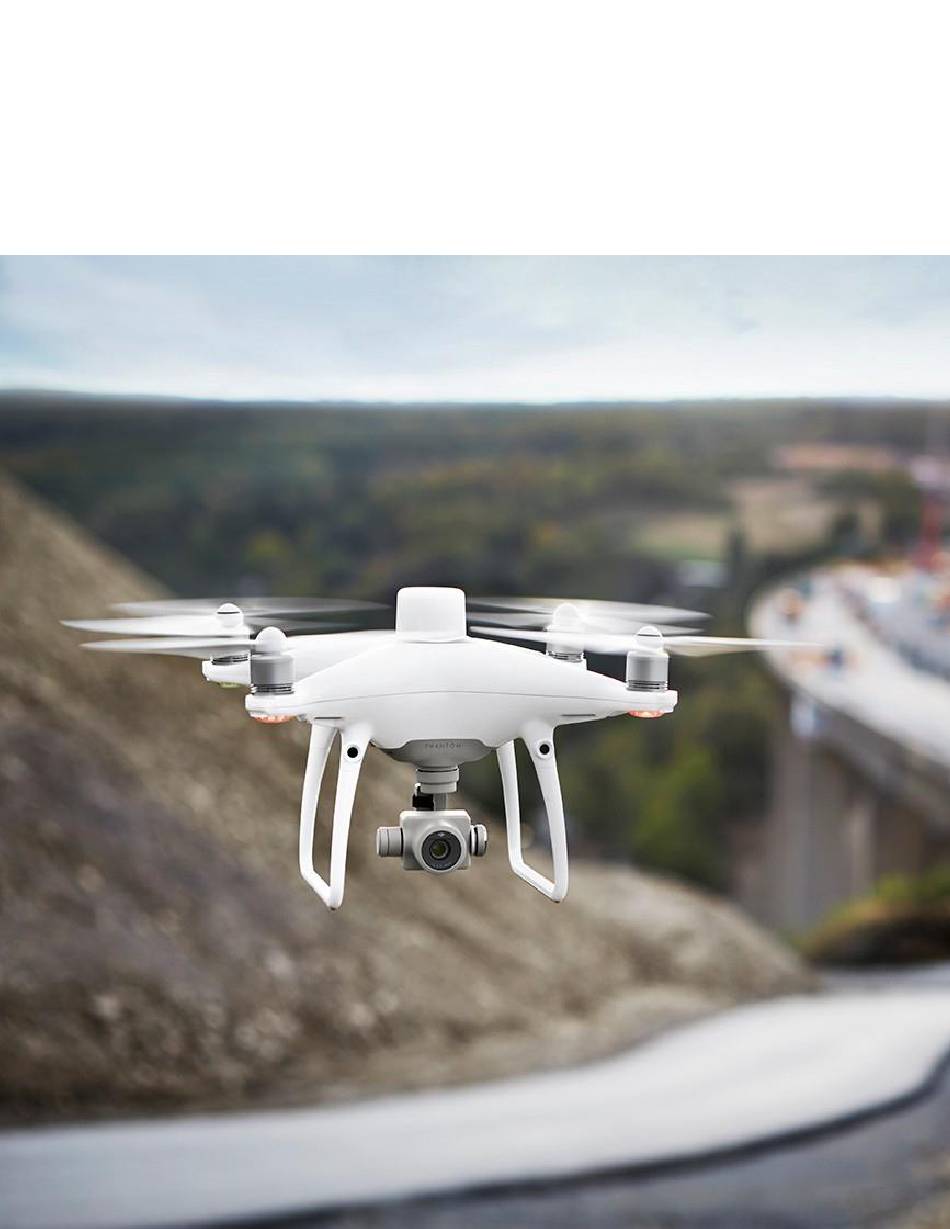

DJI PHANTOM 4 RTK with RTK-2 MOBILE STATION
Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHANTOM 4 RTK and is the answer not in the manual?

Questions and answers

Related Manuals for dji PHANTOM 4 RTK

Summary of Contents for dji PHANTOM 4 RTK

  • Page 1 FREQUENTLY ASKED QUESTIONS DJI PHANTOM 4 RTK with RTK-2 MOBILE STATION Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

  • Page 2: Table Of Contents

    DJI PHANTOM 4 RTK DRONE Product Camera Remote Controller Video Transmission Battery Position and Orientation Software Mapping DJI RTK-2 MOBILE STATION Product Power Source Using the D-RTK 2 Mobile Station Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

  • Page 3: Camera

    XMP file for post-processing. Can the ND filter of the Phantom 4 Pro be used on the Phantom 4 RTK? Yes, the ND filters made for the Phantom 4 Pro can also be used for the Phantom 4 RTK.

  • Page 4: Remote Controller

    How is the Phantom 4 RTK camera calibrated? Each Phantom 4 RTK camera goes through a calibration process that measures the distortions of the lens, and records the Corresponding undistort parameters in XMP DewarpData. When the “distortion correction” is switched off, the original image with distortion will be generated. When the “distortion correction”...

  • Page 5: Battery

    BATTERY Can I use my Phantom 4 Pro batteries with the Phantom 4 RTK and vice versa? Yes, the Phantom 4 RTK and Pro batteries are cross compatible and have the same capacity, meaning flight time won't be effected.

  • Page 6: Position And Orientation

    Timestamps.MRK is a ASCII format that stores exposure and time stamp. How do I find the XMP information of my Phantom 4 RTK photos? Open the photo in text format and search "XMP" to find this information on each photo.
  • Page 7 How do I run firmware updates on the D-RTK 2 Mobile Station? Currently you can only update it via the Phantom 4 RTK Remote Controller (not the SDK Remote Controller). Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

  • Page 8: Software

    How do I update the Phantom 4 RTK firmware? The Phantom 4 RTK firmware upgrade process is similar to that of the Phantom 4 Pro. Using the DJI Assistant 2 software, you can update the remote controller and aircraft firmware separately. You can also update the drone and remote controller simultaneously through the GS RTK app.
  • Page 9 After you finish planning, bind each Phantom 4 RTK with corresponding flight mission. Then, you can start one of the missions by itself or start all missions simultaneously. How many Phantom 4 RTK can I control at the same time while using the Block Segmentation? At most 5.
  • Page 10 Yes a flight path can be executed in reverse sequence. After a flight path has been generated from recorded waypoints, click on the reverse sequence button at the bottom of the interface to reverse the waypoint flight sequence. Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

  • Page 11: Mapping

    MAPPING What formats of differential data does the Phantom 4 RTK support? Currently the Phantom 4 RTK supports RTCM 3.0 data, RTCM 3.1 data, MSM4,MSM5, MSM6 and MSM7 data under RTCM3.2. Are the coordinates measured by the Phantom 4 RTK relative coordinates or absolute coordinates? The coordinates measured by the Phantom 4 RTK are absolute coordinates under WGS84.
  • Page 12 1. The GCP is set in a different coordinate system or height datum from that of the Phantom 4 RTK’s position. Please make sure they are in the same coordinate system. 2. The Phantom 4 RTK’s RTK status is not “FIX”. Ensure that the RTK status is “FIX” when collecting data.
  • Page 13 “2D Photogrammetry” and “Block Segmentation” planning modes. After this function is enabled, the Phantom 4 RTK will return to the center of the mapped area after completing the flight path, and gather images of the sloping features to improve altitude precision.

  • Page 14: Product

    If no new firmware updates are run, the D-RTK 2 High Precision GNSS Mobile Station is compatible with the Agras MG series, Phantom 4 RTK, P4 Multispectral, whereas the D-RTK 2 High Precision GNSS Mobile Station For Matrice Series is compatible only with the Matrice 210 RTK V2.
  • Page 15 Matrice 210 RTK V2 and Matrice 300 RTK. You can run firmware updates for the Agras series and Phantom 4 RTK through their operating apps or DJI Assistant 2. However, it is recommended to upgrate Matrice series firmware through DJI Assistant 2.

  • Page 16: Power Source

    If an external power source is connected before the internal battery is drained, the D-RTK 2 Mobile Station will continue to function, otherwise it will shut down. Purchase the DJI Phantom 4 RTK w/ RTK-2 Mobile Station Combo at www.tigersupplies.com.

  • Page 17: Using The D-Rtk 2 Mobile Station

    How do I run updates on the D-RTK 2 Mobile Station? Log in to DJI ASSISTANT 2 with your DJI account, connect the D-RTK 2 Mobile Station to the PC with a Type-C cable and run the firmware update.
