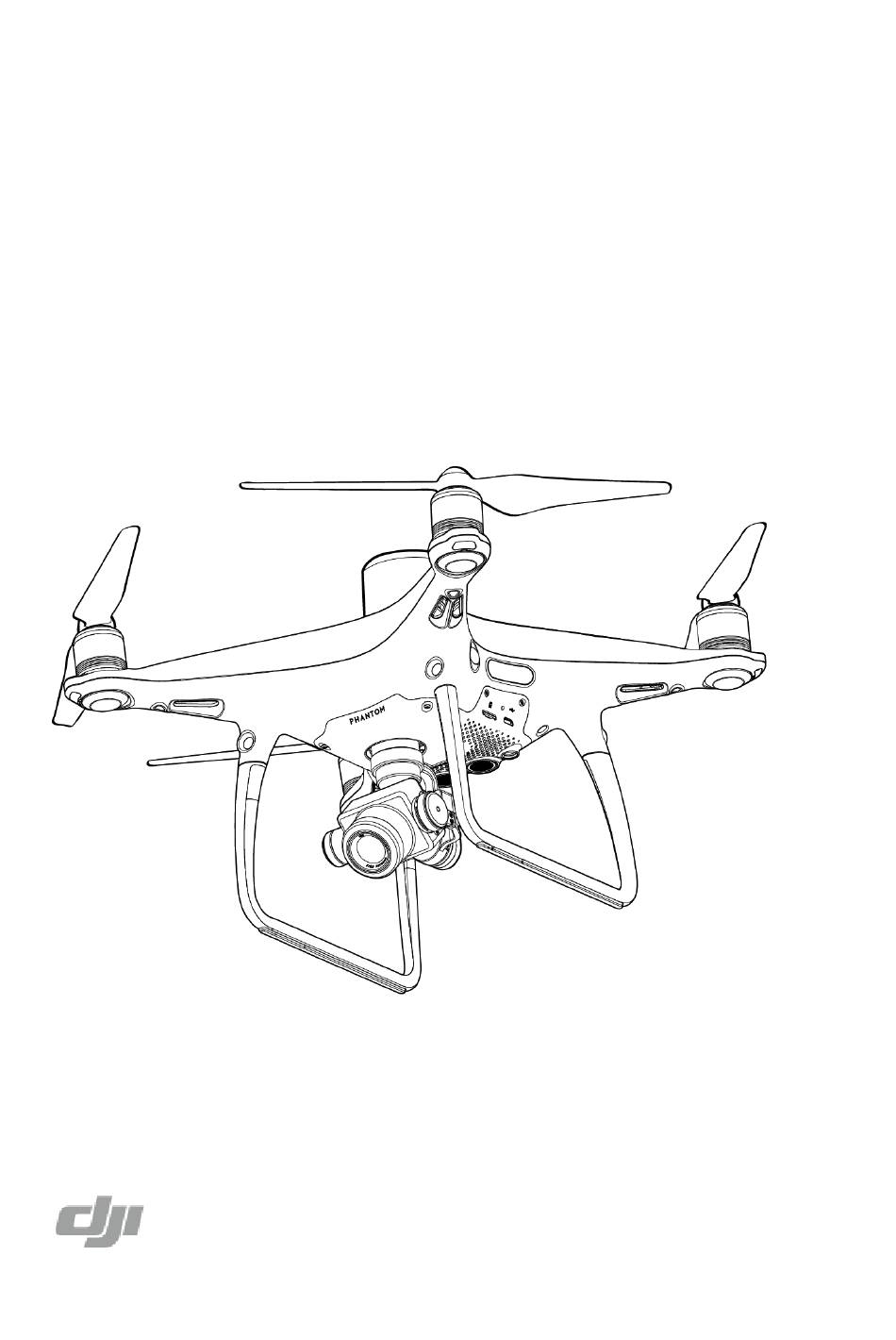

- Page 1 Phantom 4 RTK Quick Stark Guide V1.0 ...

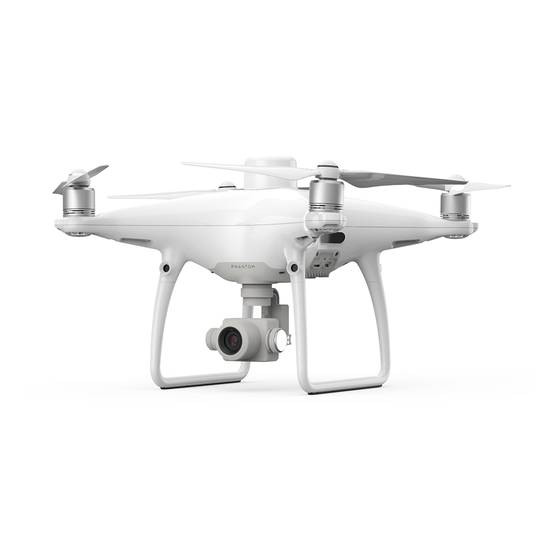

- Page 2 Phantom 4 RTK PHANTOM 4 RTK is equipped with 4 directions of obstacle avoidance allowing it to intelligently avoid obstacles during flight. Return‐to‐Home function and stable hover and flight indoors are also available.The aircraft has a built‐in DJI Onboard D‐RTK*, which provideshigh‐precision data for centimeter‐level positioning to realize more accurate mapping operation.The camera uses a 1‐inchCMOS sensor offering unprecedented clarity, lower noise, and better quality images to enhance aerial imaging for mapping. The maps generated through the mapping image data can be used for field planning of the Agras MG‐1S Advanced or MG‐1P series. ...
-
Page 3: Remote Controller
Remote Controller The powerful remote controller of the Phantom 4 RTK has a transmission range extending up to 4.3 mi (7 km)*. It features physical buttons and dials to control camera tilt, photo capture and video recording. Built into the remote controller is DJIOCUSYNC , providing a live HD view from the Phantom camera directly on the display. Dual frequency support makes the HD video downlink more stable. Replaceable batteries and antennas of the remote controller make it easy for daily operation and maintenance. 1 Antennas 10 Battery Level LEDs 19Pause Button 2Display Device 11 Micro SD Card Slot 20 Camera Settings Dial 3 Speaker 12 RTH Status LED 21 C1Button (customizable) 4 Control Sticks 13 RTH Button 22 C2Button (customizable) 5 Lanyard Attachment 14 Gimbal Dial 23 Battery Compartment Cover 6Power Button 15 Record Button 24Battery Compartment Cover Lock 7 Status LED 16 Flight Mode Switch 25Remote Controller Back Cover 8 USB‐CPort 17 Sleep/Wake Button 9 3.5 mmAudio Port 18 Shutter Button The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the rightstick controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt. *The remote controller is able to reach its maximum transmission distance (FCC) in a wide openarea with no Electro‐Magnetic Interference, and at an altitude of about 400 feet (120 meters). ... - Page 4 Using Phantom 4 RTK 1. Mount the Remote Controller Battery An external changeable Intelligent Battery is used for the remote controller, which is convenient for long‐term operation. Slide the Battery Compartment Cover Lock on back of the remote controller. Then mount the Intelligent Battery into the compartment and push it to the top position. Finally, close the cover. Battery Release Button Press and hold the Battery Release Button and push the battery down to remove it from the ...
- Page 5 Unfold Weak Strong 5. Prepare for Take off DJI MG APP Launch DJI MG, complete the Remove the gimbal clamp Power on the remote first‐time setup, and enter from the camera. controller and the Operation View. Black propeller rings go on motors with black dots. Silver propeller rings go on motors without black dots. Press the propeller down onto the mounting plate and rotate in ...
-
Page 6: Specifications
7. Mapping Plan the mapping area in the DJI MG app, and then resume the task to generate a map with more accurate positioning. Users can finish field planning on the new map and share the planning to the remote controller of the Agras MG ‐1S Advanced orMG‐1P series to achieve more accurate and efficient ... - Page 7 Operating Temperature 32° to 104° F ( 0° to 40° C) ●Gimbal Controllable ‐90° to +30° ●Vision System 31 mph (50 kph) at 6.6 ft (2 m) above ground Velocity Range Altitude Range 0 ‐ 33 ft (0 ‐ 10 m) Operating Range 0 ‐ 33 ft (0 ‐ 10 m) Obstacle Sensory Range 2 ‐ 98 ft (0.7 ‐ 30 m) Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux) ●Infrared Sensing System Obstacle Sensory Range 0.6 ‐ 23 ft (0.2 ‐ 7 m) Operating Environment Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.) ●Camera Sensor 1’’ CMOS; Effective pixels: 20M Lens FOV (Field of View) 84°, 24 mm (35 mm format equivalent) f/2.8 ‐ f/11. auto focus at 1 m ‐ ∞ ISO Range 100 ‐ 3200 (Auto) ...
-
Page 8: Compliance Information
Capacity 5870 mAh Voltage 15.2 V Battery Type LiPo 4S Energy 89.2 Wh Net Weight 468 g Charging Temperature Range 14° to 104° F (‐10° to 40° C) Max Charging Power 100 W ●Charging Hub(WCH2) Input Voltage 17.3 ‐ 26.2 V Output Voltage and Current 8.7 V, 6 A; 5 V, 2 A Operating Temperature 5° to 40°C (41° to 104°F) ●AC Power Adapter (A14‐057N1A) Voltage 17.4 V Rated Power 100 W Compliance Information FCC ComplianceNotice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. ... - Page 9 KCC Warning Message “해당무선설비는운용중전파혼신가능성이있으므로인명안전과관련된서비스는할수없습니다.” “해당무선설비는운용중전파혼신가능성이있음” EU Compliance Statement: SZ DJI TECHNOLOGY CO., LTD hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. A copy of the EU Declaration of Conformity is available online atwww.dji.com/euro‐compliance EU contact address: DJI GmbH, Industriestrasse. 12, 97618, Niederlauer, Germany Declaración de cumplimiento UE: SZ DJI TECHNOLOGY CO., LTD por la presente declara que este ...
- Page 10 Endereç ço de contact o na UE: DJI G GmbH, Indus triestrasse. 1 12, 97618, Nie ederlauer, Ge ermany Dichiara azione di con nformità UE: : SZ DJI TECH HNOLOGY CO O., LTD, dich iara che il p resente disp ositivo è conform me ai requisiti essenziali e alle altre disp posizioni rilev vanti della dir rettiva 2014/5 53/EU Una ...
