Panasonic AW-RP50 Quick Start Manual page 6

Controlling AW-XXXX Camera via AW-RM50 Wireless Remote
★ To control AW-XXXX via AW-RM50, the camera needs to be selected according to the IR ID setting (*1) set for it,
using the buttons [CAM1] – [CAM4] on the remote controller.
(*1) IR ID Setting: Enables controlling up to 4 cameras via AW-RM50.
This is a setting to prevent the interference while controlling multiple
cameras. 【Location of AW-XXXX IR ID Setting】
- Camera Menu: Systems ＞ Others ＞ Others2/4 ＞ IR ID ⇒ [CAM1] – [CAM4]
★ Please confirm the following point before using the wireless remote control.
- Aim the wireless remote control at a wireless remote control signal light-sensing area (front panel or side panel) on
AW-XXXX, and operate it within a range of 10 meters from these areas.
【Procedures for Major Operations】
● Controlling the power of AW-XXXX assigned to IR ID [CAM1]
Press AW-RM50 [CAM1] button. – (Fig. 1-A)
·
Hold down AW-RM50 [ON/STANDBY] button (for 2 sec). – (Fig. 1-
B)
● Displaying the camera menu of AW-XXXX assigned to IR ID [CAM2]
Press AW-RM50 [CAM2] button. – (Fig. 1-A)
Hold down AW-RM50 [MENU] button (for 2 sec). – (Fig. 1-C)
● Registering the pan-tilt position of AW-XXXX assigned to IR ID [CAM3] in the preset
memory
·
Press AW-RM50 [CAM3] button. – (Fig. 1-A)
·
Use the pan-tilt or zoom buttons to determine the camera angle.
·
While holding down AW-RM50 [PRESET] button, press the button corresponding to the
preset memory number you want to register in. – (Fig. 1-D)
* Using AW-RM50, up to 12 positions can be registered in the preset memories.
* If an already registered number is selected again, that preset memory position is overwritten.
* To recall a preset memory position, press the button in which the preset memory position
is registered.
* Default Setting: [CAM1]

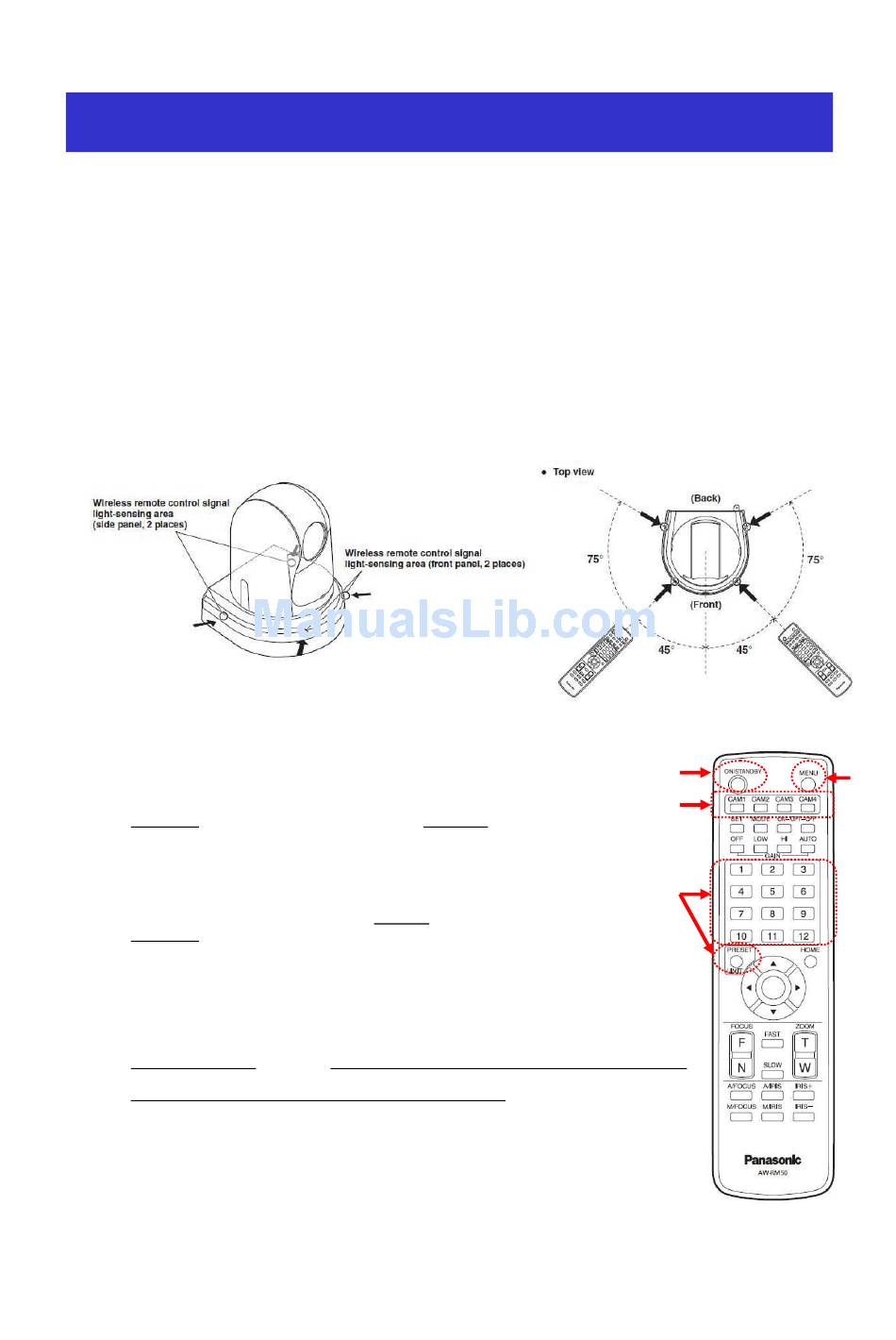

（(Figure 1: AW-RM50）
（B）
（A）
（D）
（C）
