Panasonic AW-RP50 Quick Start Manual page 4

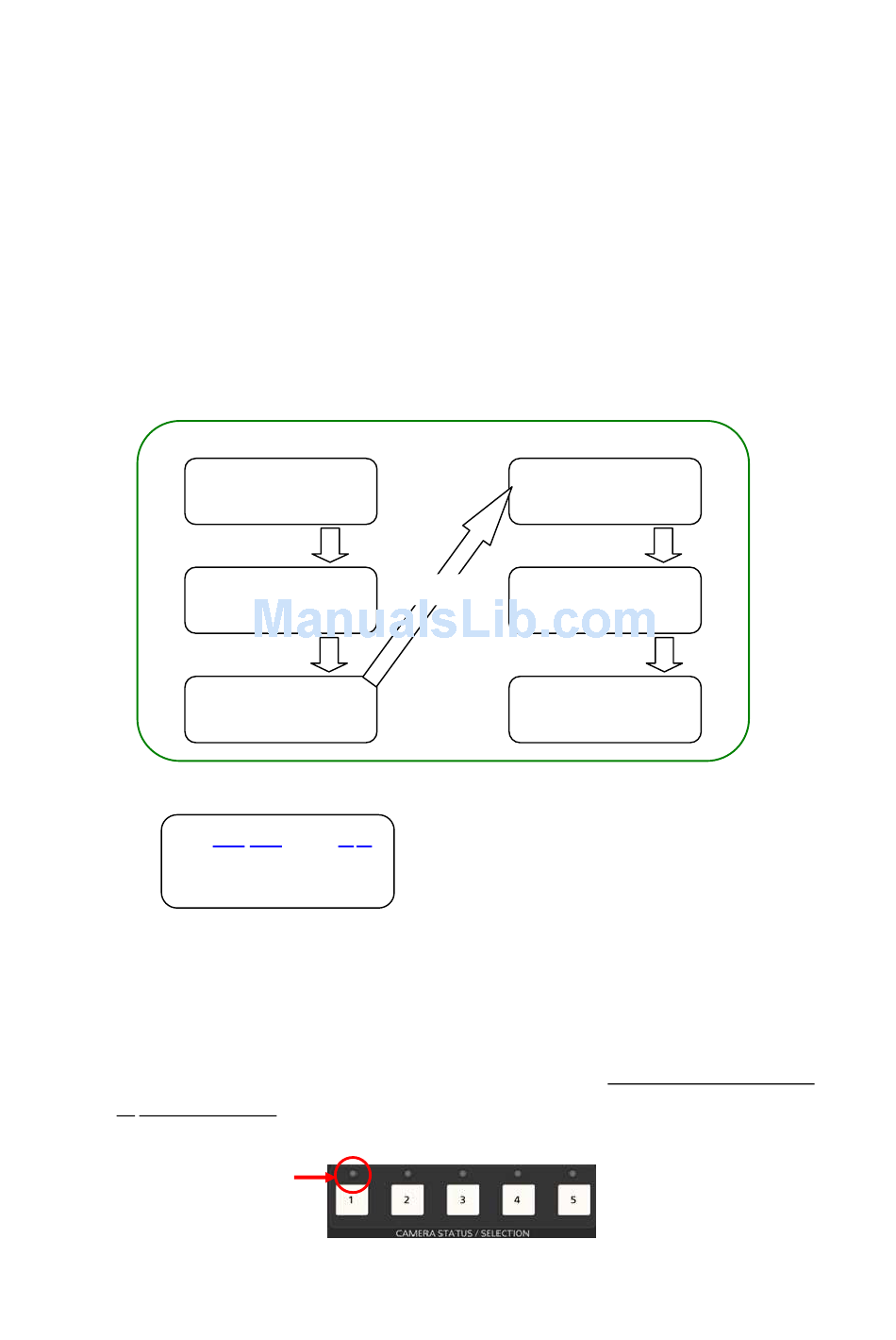

4. By [5] AUTO SET IP setting, execute the automatic assignment of IP addresses. (RENEW IP ADR)
①
In the state of the above-mentioned 3.-②, turn F1 dial to select [5] AUTO SET IP.
②
Press F1 dial to make [RENEW IP ADR] appear on the lower half of the LCD screen.
* If it does not appear, turn F2 dial to make [RENEW IP ADR] appear.
③
While [RENEW IP ADR] is displayed, press F2 dial. The number of units that AW-RP50 has newly detected
and the number of units that it currently manages (all the remote cameras and switchers) will be displayed on
the upper half of the LCD screen. (*2)
④
[NO] will be displayed on the lower half of the LCD screen. So, turn F2 dial to select [YES] and then press F2
dial.
⑤
When [COMPLETE] is displayed on the lower half of the LCD screen, the setting-up is completed.
MENU ON ⇒ Select [10]
[1]CAMERA CTL
Turn F1
[5]AUTO SET IP
Press
1．AUTO SET
(*2) The cameras (C) and switchers (S) that AW-RP50 manages are displayed as follows.
C:003/003
①
① ②
After setting up, LED buttons 1 – 3 at <CAMERA STATUS / SELECTION> on the AW-RP50 operation panel light up
in a few seconds according to the camera's power status. If a camera is in STANDBY mode (power OFF: factory
default), it lights up in orange. If in POWER ON mode (power ON), it lights up in green.
* When a camera is in STANDBY mode, the Power-ON operation needs to be done.
For this operation, please refer to "3. Turn AW-XXXX on" of the Manual 【Controlling AW-XXXX Camera
via AW-RP50 Controller】.
After setting up, this lights up
according to the camera's
power status.
Press F2
RENEW IP ADR
S:1/1
② ③ ④
③ ④
(AW-RP50: CAMERA STATUS/SELECTION Area)
C:003/003
Turn F2
C:003/003
Press F2
C:003/003
① Newly detected cameras
② Currently managed cameras + ①
③ Newly detected switchers
④ Currently managed switchers + ③
S:1/1
NO↓
S:1/1
YES↓
S:1/1
COMPLETE
