Summary of Contents for XtendLan ABOX56022

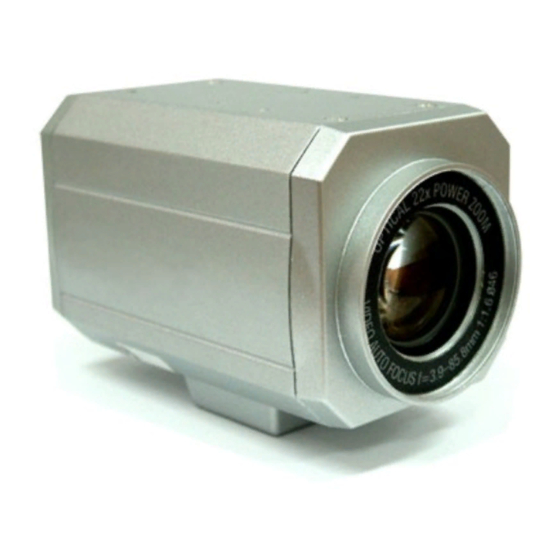

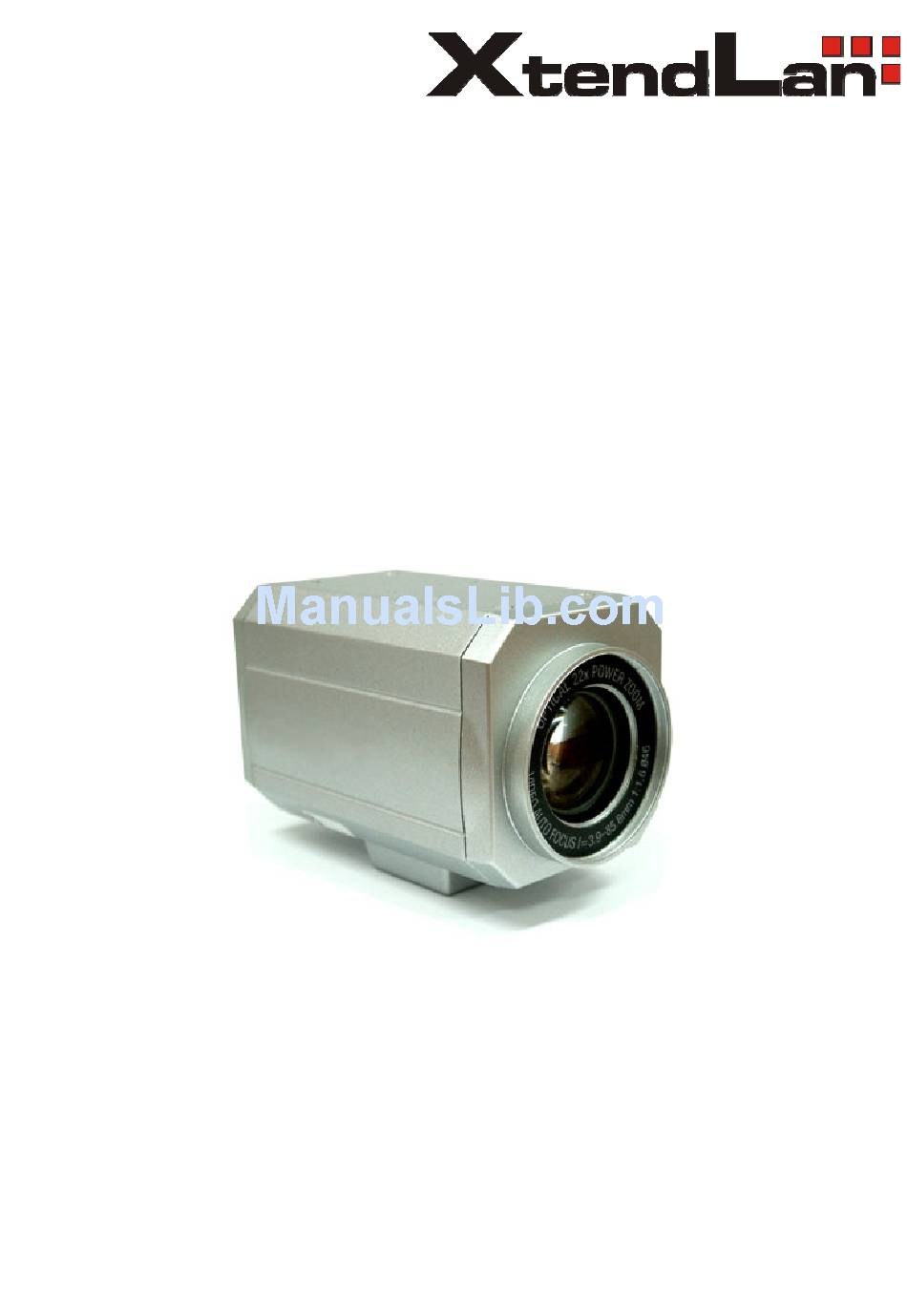

- Page 1 ABOX56022 Auto Zoom Color Camera User’s Guide...
-
Page 2: Main Features
______________________________________________________________________________________________________ XtendLan ABOX56022 User's guide www.xtendlan.com 1. Main Features: High Resolution The Horizontal resolution of 560/480/420 TVL can be achieved by using a high density CCD which provide clean, noiseless and reliable pictures. Zoom Up to 22 X Up to 22 X with the optical f:=3.9‐85.8mm Controlled by OSD You can control the camera using OSD menu and you can control lens directly with external control connection. Day & Night Function It automatically judges whether it is day or night to show the best picture, during the day color picture is provided and black and white picture is provided at night. Auto Focus The Camera can focus on subjects from about 0.1m(wide) from Lens surface to infinity automatically. 2. Technical Specification: Image sensor 3/1 SONY SUPER HAD CCD Power requirement 12V DC 10%(3.6 WATTS) Sync system PAL/NTSC Resolution 560 TVL Min Scene illumination 0.1 LUX(F1.6/0.3P‐P) ... -
Page 3: Rear Panel
______________________________________________________________________________________________________ XtendLan ABOX56022 User's guide www.xtendlan.com 3. Precaution Do not install the camera in extreme temperature conditions. Use the camera under conditions where temperatures are within ‐10°C to +50°C. Especially be careful for ventilation under high temperature. Do not install or use the camera in an environment where the humidity is high. It can cause the image quality to be poor. Do not install the camera under unstable lighting conditions. ... -
Page 4: Camera Setup Menu
______________________________________________________________________________________________________ XtendLan ABOX56022 User's guide www.xtendlan.com External Control Connector pin setting: PIN NO NAME NOTE ZOOM (TELE,WIDE) INPUT ±3V ~ ±12V FOCUS (NEAR,FAR) INPUT ±3V ~ ±12V IRIS (OPEN,CLOSE) INPUT ±3V ~ ±12V COM (ZOOM,FOCUS,IRIS) INPUT ±3V ~ ±12V 5. Camera Setup Menu...
