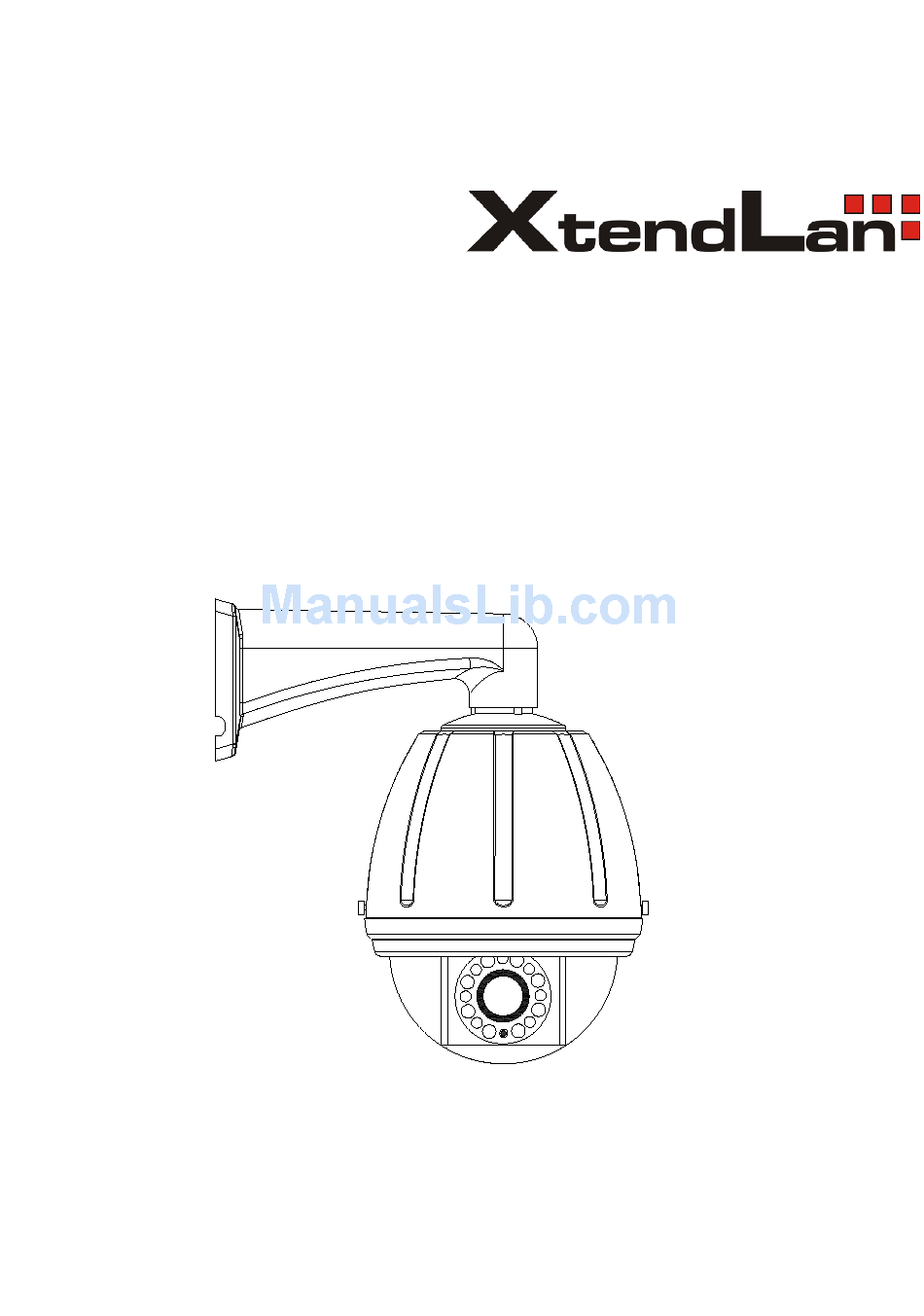

- Page 1 PEDOMEOIR48023SD Smart Constant Speed Dome Camera User Manual...
- Page 2 ● Please read the manual carefully before installing and using the unit. ● Part I: Introduction 1-1. Instructions We greatly appreciate your choosing our product! As stated in the warranty instruction, when a breakdown occurs to the properly used product, the product under warranty will be granted free maintenance or spare parts replacement.
-
Page 3: Main Technical Data
elegant and practical. The outer housing can endure long-term operation without distortion. 2. Precise conductive slip-ring is adopted, with which pan 360° endless running is realized and all-direction monitoring effect is realized. 3. The function of Position Limiting is realized by photoelectrical sensors, which avoids the limitations of traditional mechanical Position Limiting. -
Page 4: Mechanical Index
keyboard Pre-set position quantity: 16 preset positions Tour group quantity: 1 group (16 preset positions can be included) 2. Mechanical Index Dome movement: pan 360° endless, tilt 0°-90° Dome speed: pan/tilt, Pan 6º、9º、12º、15º adjustable Movement limiting position: adjustable between any two points 3. - Page 5 Part II: Installation Procedures 2-1. Outer shape and installation size Outer shape and installation size 第二部分：设备安装步骤 2-1、外形和安装尺寸 外形和安装尺寸...
- Page 6 2-2. Installation of Video Camera Connecting Lens Controlling Cable Camera Lens Controlling Cable should be provided by the camera supporter. Connect the Camera Lens Controlling Cable well according to the corresponding relationship between the camera and the outlet of decoding panel shown in the following table.
- Page 7 螺丝卡槽 Picture 4 Push the connecting ports end of the power, video and RS458 controlling integrated cable through the round hole of the bracket, and then fix the ball housing top to the round hole of the bracket. Fix the three M6 screws with screw knife, enabling the screws to (See Picture 4)) get into the screw slots.
- Page 8 mount type 出线槽 Cable slot 或200 400 or 200 Picture 6: Size of bracket of outer-door Constant Speed Ball of pendant mount type Select the position for installation of Constant Speed Ball and confirm the place with good endurance ability, mark the corresponding positions of 3 installation holes of the fixing tray on the ceiling with a pencil, then install the fixing tray in the ceiling with expanding bolts (not provided).
- Page 9 Tightening screw 锁紧螺钉 Picture 8 Step 2: Pull the power cable, video cable and controlling cable out via the cable out-going slot, then direct the dotted-line part of the bracket shown in the figure to the two corresponding pegs on the installed peg-board, then push the bracket downward until it locks in place.
- Page 10 弹簧压块 Spring pinning bar Picture 9 2-7. Connection of Power Supply Cable and Signal Cable The connection of cables begins with the completion of installation. 1. Please see in table 1 the application of cables Table 1 Cable Application Connecting objects Remarks DC12V power Power outlet...
- Page 11 connect to the video outlet provided by our company. Now, all the power cables and signal cables have been connected. Please check carefully to guarantee correctness and firmness of all connections. 5. Finally, please connect the 220V interface of our company’s provided special adaptor to AC220V power supply.
- Page 12 6 地址拨码开关 1-6 Address select switch 7、8 波特率拨码开关 7, 8 Baud rate select switch 左限位设置按钮 Key for left position setup 云台速度拨码开关(5-6) Key for dome speed adjustment(5-6) 协议拨码开关(1-4) Protocol select switch(1-4) 右限位设置按钮 Key for right position setup 视频输入接口 Video inlet 限位设置指示灯 Camera power +12V Position setup...
- Page 13 1-6 Address select switch 6 地址拨码开关 7, 8 Baud rate select switch 7、8 波特率拨码开关 Key for left position setup 左限位设置按钮 Key for dome speed adjustment(5-6) 云台速度拨码开关(5-6) Protocol select switch(1-4) 协议拨码开关(1-4) Key for right position setup 右限位设置按钮 限位设置指示灯 Position setup 摄像机电源 +12 Camera power +12V indicator 摄像机电源...
- Page 14 001101 011101 101101 111101 001110 011110 101110 111110 001111 011111 101111 111111 010000 100000 110000 Protocol KRE-301 for KODICOM card hard disk video recorder, protocol PELCO-D and RM110 for Shanghai Chenova hard disk video recorder all adopt the hexadecimal system, which is different from other protocols adopting decimal system, so the address should be converted into decimal system.
- Page 15 Table 5 Correspondence of Coding Switches and Protocols. Types of Protocols DIP- 4,3,2,1 0 0 0 0 PELCO_D 0 0 0 1 PELCO_P 0 0 1 0 VICON 0 0 1 1 PELCON 0 1 0 0 KALATEL-312 0 1 0 1 CCR-20G 0 1 1 0 ADR-8060...
- Page 16 MPG4 card of HY 9600，PELCO-P 2400 zhongjiaman Software Image sensitive M800-CIA 2400 card（Chengdu Kony） MPG4 card of Milky PELCO-D 2400，WISDOM 4800 Way software Please choose appropriate communication protocols according to the protocols adopted by constant speed ball controlling equipment (such as matrix, HD video recorder, keyboard). Before installation, a compatibility test of controlling and controlled equipment is recommended.
- Page 17 Setup left limiting position Start Tour Setup right limiting position Activate Home Position function Start left/right scan Disable Home Position function Start 360°scan of the dome Setup Home Position Stop auto scan of the dome 5. Setup the Movement Speed of the Dome The movement speed of the dome can be setup through the coding switch.
- Page 18 Switch on the power again, control the constant speed ball to make slow pan/tilt movement, observe its agility and stability, and check whether there is friction or collision between camera, cable and inner housing. If the process goes smoothly, you can adjust the scope of pan scan, i.e. scope of maximum left/right positions.
-
Page 19: Setup Of Left/Right Limiting Positions
preset positions in memory at most. Setup of tour group a. In the keyboard initial state, enter number “140”(110) and press the “PREVIEW” key to enter the tour setup. b. After entering the setup, add preset position number to the tour. Enter the first desired preset position number and press the “PREVIEW”... - Page 20 setup in three ways: ☆Setting the dome’s left/right limiting positions through the company’s special keyboard A. Once the dome is installed and power is on, the constant speed ball starts a self-check. After the self-check, the position of the dome is the left position, Setup the maximum left/right positions by the company’s keyboard connected to the constant speed ball through 485 bus cable.
- Page 21 D. On completing the setup of left/right limiting positions, press the two keys “S1” and “S2” simultaneously with your forefinger and middle finger for about 2 seconds till the green indicator—D11 is off. The off state of the green indicator suggests exit of the dome’s left/right limiting position setup.
- Page 22 setup of left/right limiting positions Press the key “S1” once on the dome camera panel would move the dome left; the second press stops the movement. Press the key “S2” once on the dome camera panel would move the dome right, the second press stops the movement.
-
Page 23: Simple Troubles And Corresponding Solutions
b. Press PREVIEW key Then the ball will carry out 360° endless scanning. 3-9. Stop the auto scan of the dome While the unit is carrying out scanning operation, if you require the unit carry out other operations, you can operate on the keyboard to stop the auto scan. Operation is as below: a. - Page 24 485 signal is weakening, the driving of 485 convertor is Replace the convertor not enough...
