Rhino ski/ snowboard carrier

Advertisement

Quick Links

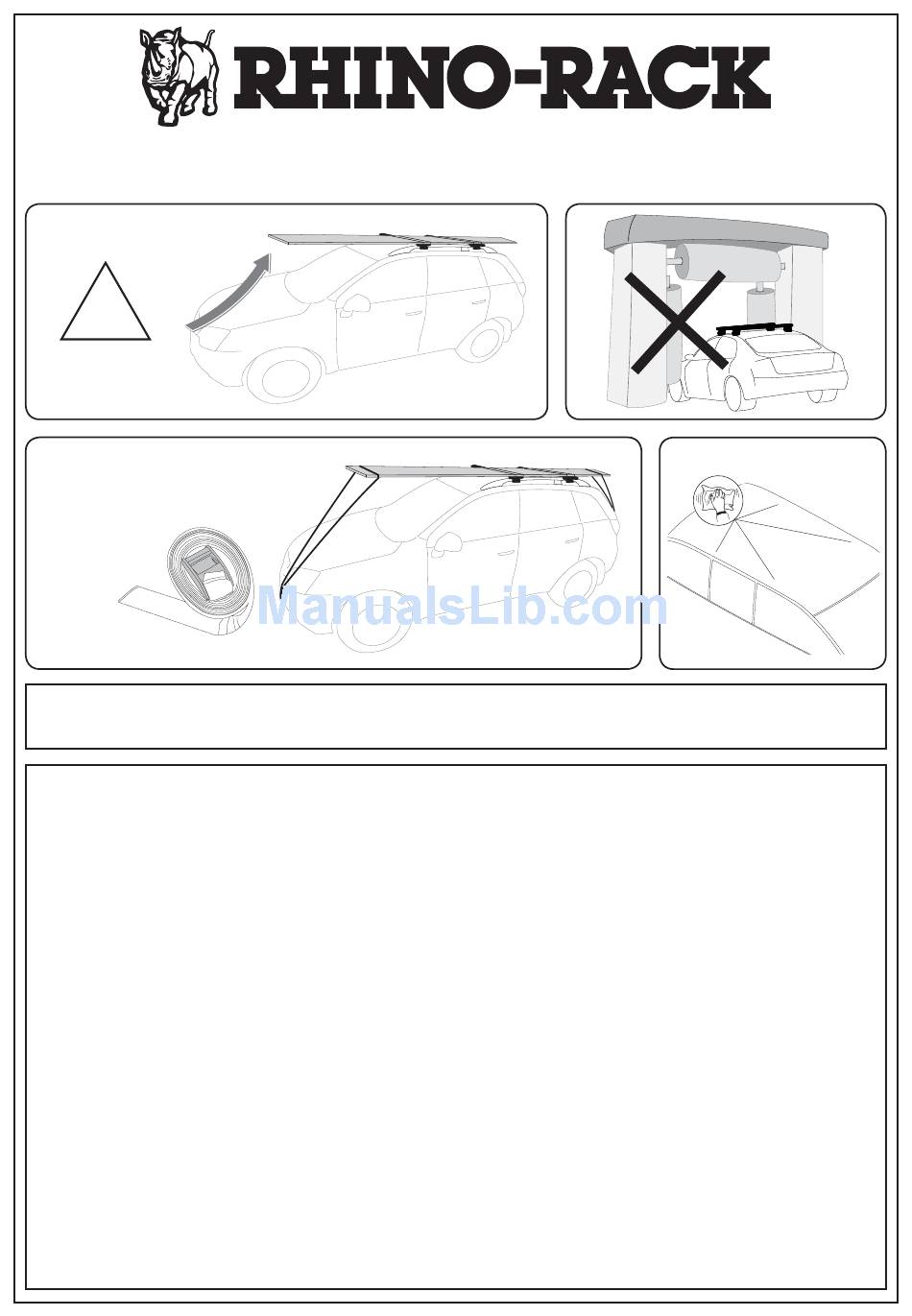

Rhino Ski/ Snowboard Carrier 572, 573, 574, 576
!
Important:
Please refer to your fi tting instruction to ensure that the roof racks are installed in the correct locations.
Check the contents of kit before commencing fi tment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
Maximum Load Capacity evenly distributed inside ski carriers:
6 Pair = 79lbs/36kg.
4 Pair = 53lbs/24kg.
2 Pair = 26lbs/12kg.
3 Pair = 39lbs/18kg.
Recommendations:
It is essential that all bolt connections be checked after driving a short distance when you fi rst install your crossbars and acces-
sories. Bolt connections should be checked again at regular intervals (probably once a week is enough, depending on road con-
ditions, usage, loads and distances travelled). Please ensure that all loads are evenly distributed and that the centre of gravity
is kept as low as possible. Make sure to fasten your load securely.
Use only non-stretch fastening ropes or straps.
Caution: The handling characteristics of the vehicle changes when you transport a load on the roof. For safety reasons we
recommend you exercise extreme care when transporting wind-resistant loads. Special consideration must be taken into account
when cornering and braking.
Please remove crossbars & accessories when putting vehicle through an automatic car wash.
Off-road use:
Ski/ Snowboard Carriers are not recommended for off-road use.
Note for Dealers and Fitters:
It is your responsibility to ensure instructions are given to the end user or client.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia.
(Ph) (02) 9638 4744
(Fax) (02) 9638 4822
These instructions remain the property of Rhino-Rack Australia Pty. Ltd. and may not be used or changed for any other purpose than intended.
Document No: R790
Prepared By: Kayle Everett
Authorised By: Chris Murty
CONTROLLED
Fit Time: 10min
Issue No: 02
Issue Date: 08/04/2016
Page 1 of 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 572 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rhino-Rack 572

  • Page 1 (Ph) (02) 9638 4744 Authorised By: Chris Murty Issue Date: 08/04/2016 (Fax) (02) 9638 4822 These instructions remain the property of Rhino-Rack Australia Pty. Ltd. and may not be used or changed for any other purpose than intended. Page 1 of 5...
  • Page 2: Parts List

    Rhino Ski Carrier 572, 573, 574, 576 Parts List Item Component Name Part No. Ski Carrier Keys M6 Spring Washer W004 Top Clamp M529 M6 x 40mm Security Screw B085-BLK M6 Flat Washer Black W003-BLK M6 Flat Washer Silver W003...
  • Page 3 Rhino Ski Carrier 572, 573, 574, 576 Attach top clamp. Attach top clamp (M529). Fasten tube nut, washers and T-bolt as shown, 2-3 lb/ft (3-4 Nm). M6 tube nut M6 spring washer M6 fl at washer Top clamp M6 T-bolt Attach to crossbars.
  • Page 4: Front Of Vehicle

    Rhino Ski Carrier 572, 573, 574, 576 Fasten ski carriers. Check ski carriers are sitting square to the crossbar. Tighten M6 screws on each clamp. Tighten to 2-3 lb/ft (3-4 Nm). DO NOT OVER TIGHTEN.   Locking the ski carrier.
  • Page 5 Rhino Ski Carrier 572, 573, 574, 576 Attaching Ski Carriers to C-groove of crossbar C-groove crossbars. Remove rubber buffer strip. Remove Top & Bottom clamp, refer Step 2. Locate T-bolts in the C-groove by sliding the whole assembly into the top of the crossbar.
