SERVICE MANUAL

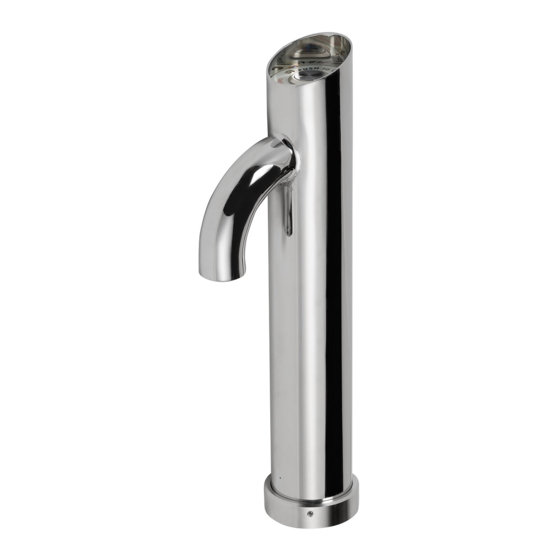

Tubular Font no drip tray
Marco Beverage Systems Limited.
63d Heather Road,
Sandyford Industrial Estate,
Dublin 18.
Ireland Tel: +353 (0)1 295 2674
Ireland Fax: +353 (0)1 295 3715
Email: sales@marco.ie
www.marco.ie
Marco Beverage Systems Limited.
Shire House, Strixton Manor,
Strixton, Wellingborough, Northants, NN29 7PA
UK Tel: +44 (0)2072 744 577
UK Fax: +44 (0)2079 788 141
Email: sales@marco-bev.co.uk
www.marco-bev.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Marco TUBULAR FONT
Summary of Contents for Marco TUBULAR FONT
- Page 1 SERVICE MANUAL Tubular Font no drip tray Marco Beverage Systems Limited. Marco Beverage Systems Limited. 63d Heather Road, Shire House, Strixton Manor, Sandyford Industrial Estate, Strixton, Wellingborough, Northants, NN29 7PA Dublin 18. Ireland Tel: +353 (0)1 295 2674 UK Tel: +44 (0)2072 744 577...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................3 INSTALLATION ...................... 4 Mounting ......................... 4 Plumbing ......................... 5 Electrical ......................... 6 CLEANING ......................7 RISK OF SCALDING ..................... 8 ASSEMBLY DRAWINGS ..................9 Parts List ......................... 9 Replacing the Button .................... 11 Service Manual 1000584 02-02-15 Page 2 of 11... -
Page 3: Introduction
1. INTRODUCTION The information provided in this manual is intended to assist in the installation and maintenance of the Marco Tubular Font no drip tray. Please read the instructions carefully to prevent accidents and ensure an efficient installation. This manual is not a substitute for any safety instructions or technical data affixed to the machine or its packaging. -
Page 4: Installation
2. INSTALLATION a. Mounting • Cut a Ø32mm circular cut out in the sink/counter for the font. • The font is then securely mounted as shown below using the washer and nut provided. • The wire and water outlet tube should pass freely through the large hole through to the underside of the counter. -
Page 5: Plumbing
Plumbing • This font is supplied with 1.5 metre of silicone tubing. • One end of this tube should be securely fitted to the reducer connector on the font and the other end should be connected to the font water outlet connector (A) on the top of the boiler. -
Page 6: Electrical
Mini Fit connector mounted on the top lid of the under counter boiler. Note: when connected to a Marco under counter boiler the electrical connections are not polarity sensitive. If a non-Marco Font or Boiler is being used contact your representative to ensure that the electrical connections are appropriate. -
Page 7: Cleaning
3. CLEANING The e of accidentally operating the font when cleaning around the font button. Service Manual 1000584 02-02-15 Page 7 of 11... -
Page 8: Risk Of Scalding
4. RISK OF SCALDING Bewa The u in conditions that can cause bodily injury or damage to property. If in doubt about the serviceability of the font always contact the manufacturer or your own supplier for advice. Service Manual 1000584 02-02-15 Page 8 of 11... -
Page 9: Assembly Drawings
DESCRIPTION 1401279 NUT M6 S/S WING 1200149 Rod M7 threaded 80mm 1400848 M4 x 4mm Grub screw 1800316 Gasket Switch Tubular Font 2200238 Tubular Font 2mm Ring 1401712 M3x10mm countersunk screw 1900393 Label round PtoD Caution Hot Water 1501221 Push button 2 pin 22mm... - Page 10 Service Manual 1000584 02-02-15 Page 10 of 11...
-
Page 11: Replacing The Button
b. Replacing the Button See b Service Manual 1000584 02-02-15 Page 11 of 11...
