  • Page 1 844 MPSR 844 MPSR UNI EN ISO 9001-085...

  • Page 2: Ec Compliance Declaration

    Via Benini, 1 40069 - Zola Predosa BOLOGNA - ITALY Hereby declares that: the 844 MPSR electronic control unit • complies with the essential safety requirements in the following EEC Directives: 73/23 EEC and subsequent amendment 93/68 EEC. 89/336 EEC and subsequent amendments 92/31 EEC and 93/68 EEC.

  • Page 3: General Safety Instructions

    6) FAAC S.p.A. shall not be liable for any damage or injury caused by improper use of the automation or by any use other than that for which it is intended.

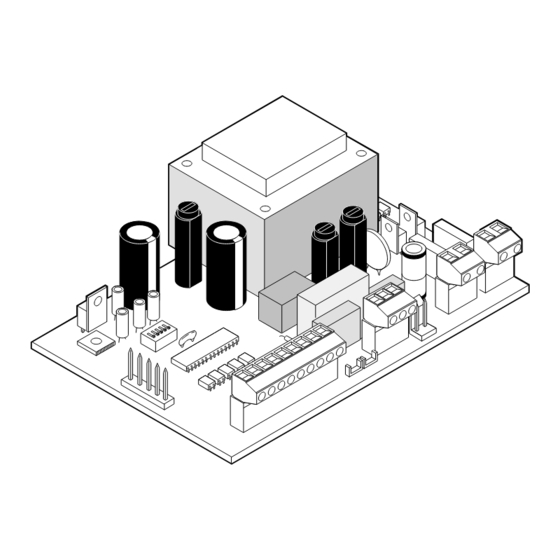

  • Page 4 ENGLISH ENGLISH 844 MPSR 1. 1. 844MPSR LAY-OUT These instructions apply to the following models: 844MPSR ELECTRONIC CONTROL UNIT 1. TECHNICAL CHARACTERISTICS RESET Table. 1 TECHNICAL CHARACTERISTICS OF 844MPSR BRAKE 844MPSR Power supply 230V~ (+6 -10 %) 50Hz Motor max. load...
  • Page 5 ENGLISH ENGLISH 3. DESCRIPTION 5.2.3. CONNECTORS J3-J4 (limit switch) J3 = Connection of limit switch for left-hand closure 3.1. CONNETOR J1 J4 = Connection of limit switch for right-hand closure The connector J1 is used for the quick connection of MINIDEC,DECODER, RP RECEIVER boards (Figs.

  • Page 6: Indicator Leds

    ENGLISH ENGLISH 3.7. TERMINAL BLOCK J8 (high voltage) Operating logics There are four operating logics available: Terminal block for connection of the 230V~ 50Hz power supply A1 = Automatic S1 = Safety (L=Line N=Neutral). Connect the earth wire to the operator as S2 = Safety Plus E = Semi-automatic shown in Fig.9...
  • Page 7 ENGLISH FAULT CONDITIONS 6. SEPARATE INSTALLATION The following conditions effect normal operation of the If you prefer to install the control unit 844 MPSR separately from automation: the operator, use the 844 INTERFACE card and the adapter microprocessor error cable (provided with the geared motor) and connect them intervention of the electronic safety timer (interruption of together as shown in fig.
  • Page 8 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
