Save and exit the BIOS Setup.

(3)

Configuring RAID by the RAID BIOS

Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and

proceed to Section 4 if you do not want to create a RAID.

(3)-1

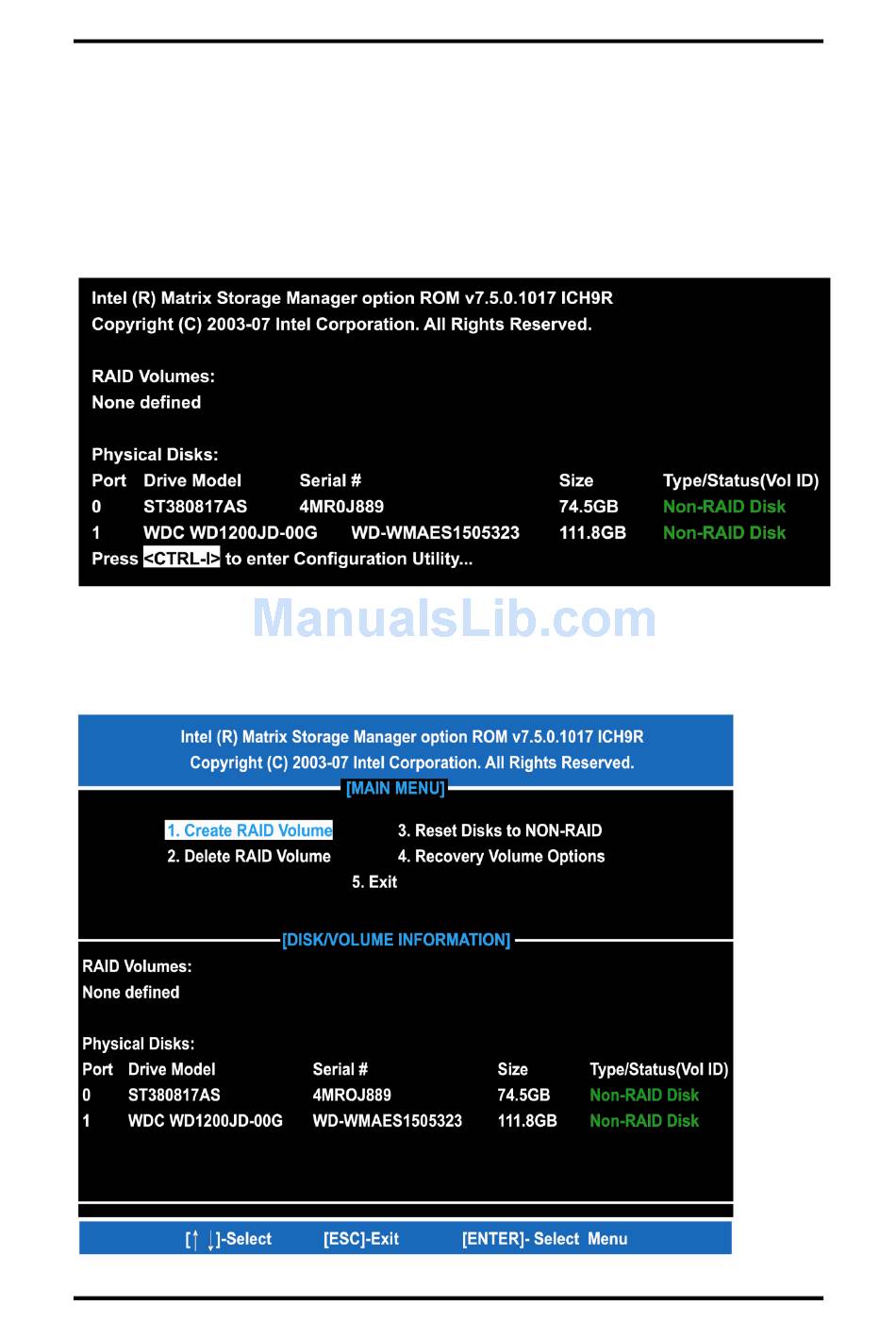

After the POST memory testing and before the operating system booting, a

message "Press <Ctrl-I> to enter Configuration Utility" shows up, accordingly, press

<CTRL+ I> to enter the RAID BIOS setup utility.

(3)-2

After you press <CTRL+ I>, the Create RAID Volume screen will appear. If you

want to create a RAID array, select the Create RAID Volume option in the Main

Menu and press ENTER.
