SHB102 LGA775 SBC User's Manual



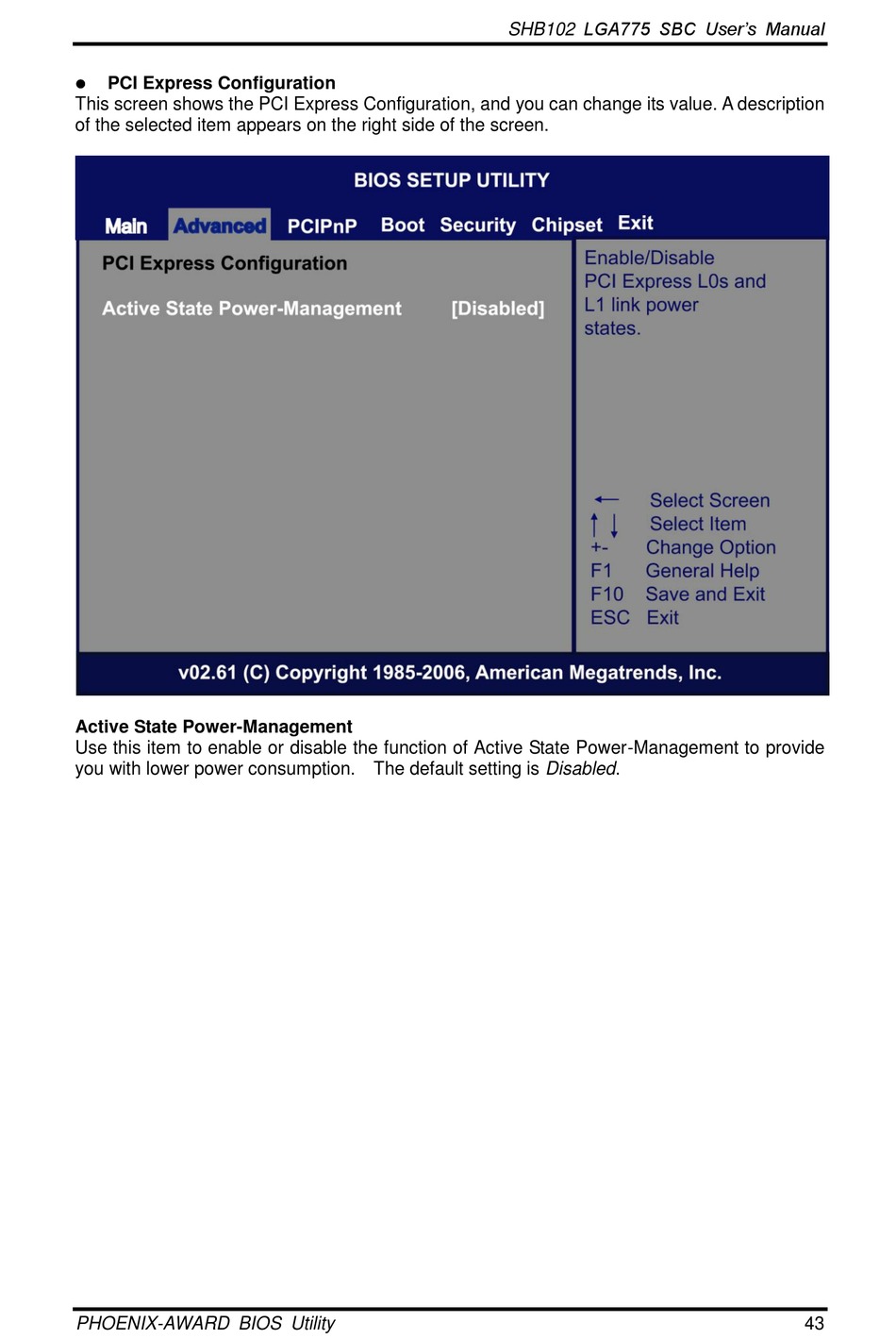

PCI Express Configuration

This screen shows the PCI Express Configuration, and you can change its value. A description

of the selected item appears on the right side of the screen.

Active State Power-Management

Use this item to enable or disable the function of Active State Power-Management to provide

you with lower power consumption. The default setting is Disabled.

PHOENIX-AWARD BIOS Utility
