Page 1: User Guide

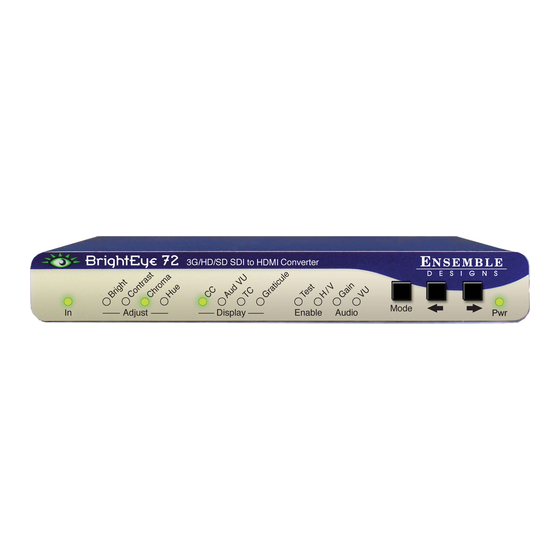

BrightEye 72 3G/HD/SD SDI to HDMI Converter User Guide BrightEye 72 3G/HD/SD SDI to HDMI Converter User Guide Revision 1.1 SW v1.0.0 www.ensembledesigns.com BrightEye 72 - Page 1... -
Page 2: Table Of Contents
MODULE CONFIGURATION AND CONTROL Front Panel Controls and Indicators Status Indicators Adjusting Parameters from the Front Panel Front Panel Control and On-Screen Display Examples of Using the Front Panel in Conjunction with On-Screen Display www.ensembledesigns.com BrightEye 72 - Page 2... - Page 3 USING THE BRIGHTEYE CONTROL APPLICATION Software version requirement Input Menu Proc Menu Color Correct Menu Audio Menu Config Menu Captions Menu Timecode Menu SOFTWARE UPDATING WARRANTY AND FACTORY SERVICE Warranty Factory Service SPECIFICATIONS GLOSSARY www.ensembledesigns.com BrightEye 72 - Page 3...
-
Page 4: Product Overview And Functional Description
Use with any HDMI Monitor The BrightEye 72 can be used with any HDMI monitor. Because there is a wide range of HDMI monitors available, you have a lot of choices when it comes to selecting which particular HDMI monitor you want to use. -
Page 5: Audio Metering Overlay And Disembedding
Audio Meters Audio Metering Overlay and Disembedding The BrightEye 72 has a sophisticated audio metering overlay capability that uses four groups of four-channel on-screen VU meters. It includes a hanging peak level indicator and a user-adjustable peak (headroom) indicator. You can disembed and visually monitor up to sixteen channels of audio. -
Page 6: Closed Caption Decoding
In fact, the HDMI standard provides no support for captions in ‘closed’ form. BrightEye 72 is able to deliver open captions to an HDMI display by rendering them as actual image content with its built-in character generator. -
Page 7: Horizontal And Vertical Shift
BrightEye 72 Horizontal and Vertical Shift The BrightEye 72 can shift images horizontally and/or vertically to enable inspection of content in the horizontal and vertical intervals outside of the picture itself, such as embedded audio, closed caption data blocks, and blanking edges of the signal. -
Page 8: Block Diagram
Corrector Caption Open Caption Reader Decoding Timecode Timecode 3G/HD/SD SDI Reader Window Gen Loopback Audio Meter Overlay Analog Audio Out Audio Out 16 Chan Selection Audio Demux BrightEye 72 Functional Block Diagram, Portrait View www.ensembledesigns.com BrightEye 72 - Page 8... - Page 9 3G/HD/SD SDI to HDMI Converter User Guide BrightEye 72 www.ensembledesigns.com BrightEye 72 - Page 9...
-
Page 10: Applications
In addition to video, you can also monitor ancillary data such as closed captions, timecode, and audio. Graticules are available to align titles. Use the BrightEye 72 in studio applications where you need to adjust the color temperature of on-set monitors so they look right on camera. -
Page 11: Rear Connectors
BrightEye 72 REAR CONNECTORS All connections to the BrightEye 72 are made on the rear of the unit. Refer to the illustration below for a reference of the rear connectors. A more detailed explanation of the rear connectors follows immediately below. -
Page 12: 3G/Hd/Sd Sdi In
This BNC input accepts SD SDI, HD SDI, or 3 Gb/s HD SDI video signals with or without embedded audio. 3G/HD/SD SDI Out The SDI Out BNC provides reclocked loopback output of the input video signal. Connect this BNC to a video destination such as a router, production switcher, or broadcast monitor. www.ensembledesigns.com BrightEye 72 - Page 12... -
Page 13: Module Configuration And Control
3G/HD/SD SDI to HDMI Converter User Guide BrightEye 72 MODULE CONFIGURATION AND CONTROL There are two methods for controlling and operating the BrightEye 72: From the front panel (with or without on-screen display on the HDMI out); With the BrightEye PC or Mac Control application. -
Page 14: Adjusting Parameters From The Front Panel
The second control relating to on-screen display is Include in OSD in the Color Correct menu in the BrightEye PC or Mac Control application. If you want to be able to adjust the Red, Green and www.ensembledesigns.com BrightEye 72 - Page 14... -
Page 15: Examples Of Using The Front Panel In Conjunction With On-Screen Display
Notice also that the input status is displaying in the upper left area of the monitor image, indicating input format, frequency, and the presence of embedded audio. This example also includes graticule lines and audio meters. Example of on-screen display while adjusting the Bright control from the front panel www.ensembledesigns.com BrightEye 72 - Page 15... - Page 16 Again, this example is displaying the input status in the upper left area of the monitor, indicating input format, frequency, and the presence of embedded audio. This example also includes graticule lines and audio meters. Example of on-screen display while adjusting the Caption Display control from the front panel www.ensembledesigns.com BrightEye 72 - Page 16...
- Page 17 Again, this example is displaying the input status in the upper left area of the monitor, indicating input format, frequency, and the presence of embedded audio. This example also includes audio meters. Graticule Example of on-screen display while adjusting the Graticule control from the front panel www.ensembledesigns.com BrightEye 72 - Page 17...
-
Page 18: Using The Brighteye Control Application
BrightEye PC/Mac Control application software is included on CD that came with your unit, or the application can be downloaded here: http://www.ensembledesigns.com/support/brighteye-support/ If the BrightEye 72 is connected to a computer running this software, the menus described in the following pages are available for controlling and monitoring the unit. www.ensembledesigns.com... -
Page 19: Input Menu
3 Gb/s Level A or Level B (SMPTE 424M, 425M) 525i, 625i (SMPTE 259M) • Sync Lock – indicates whether or not the BrightEye 72 is sync locked to a reference signal. • Embedded Aud – shows which groups of audio channels, if any, are embedded in the input. -
Page 20: Proc Menu
– adjusts the contrast level of the signal in IRE (range is -30 to 30, default is 0). • – adjusts the hue of the signal ± 180 degrees (range is -180 to 180, default is 0). www.ensembledesigns.com BrightEye 72 - Page 20... -
Page 21: Color Correct Menu
(closed caption) controls and will display their values on the on-screen display; however, no LEDs will blink when they are selected, since they have no LED on the front panel. Contact us if you’d like our Color Correction White Paper. www.ensembledesigns.com BrightEye 72 - Page 21... -
Page 22: Audio Menu
-4 dBFS, -5 dBFS, -6 dBFS, -7 dBFS, -8 dBFS, -9 dBFS, -10 dBFS. • Anlg Audio Out – Select the channels you want to use for audio output. Available choices are: Channels 1/2, 3/4, 5/6, 7/8, 9/10, 11/12, 13/14, 15/16. www.ensembledesigns.com BrightEye 72 - Page 22... -
Page 23: Config Menu
• OSD Enable – Use this control to enable the on-screen display of the BrightEye 72 software controls. When enabled, the software controls display on the HDMI monitor. Available choices are: Off, Input Status, Control Adjust, All. Input Status displays in the upper left corner of the HDMI monitor. -
Page 24: Captions Menu
Caption Display – Available choices are: Off or On Caption Demo (not shown) –This control is a demonstration mode of the caption capabilities of the BrightEye 72. In normal operation this control should be turned off. www.ensembledesigns.com BrightEye 72 - Page 24... -
Page 25: Timecode Menu
BrightEye 72 Timecode Menu The video path includes a timecode reader. BrightEye 72 can read and display running timecode from either DVITC (Digital Vertical Interval Time Code) on SD SDI inputs, or ATC (Ancillary Time Code) on HD SDI inputs. -
Page 26: Software Updating
This unit is covered by a five-year limited warranty. If you require service (under warranty or not), please contact Ensemble Designs and ask for customer service before you return the unit. This will allow the service technician an opportunity to provide any other suggestions for identifying the problem and to recommend possible solutions. -
Page 27: Specifications
1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz 3 Gb/s Level A or Level B (SMPTE 424M, 425M) 525i, 625i (SMPTE 259M) HDMI Output Number Type HDMI 1.3 Format Follows input www.ensembledesigns.com BrightEye 72 - Page 27... - Page 28 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors Weight 14 oz Power 12 volts, 7 watts (100-230 VAC modular power supply from Ensemble Designs sold separately) Temperature Range 0 to 40° C ambient Relative Humidity 0 to 95%, non-condensing www.ensembledesigns.com...
-
Page 29: Glossary
Checkfield A Checkfield signal is a special test signal that stresses particular aspects of serial digital transmission. The performance of the Phase Locked-Loops (PLLs) in an SDI receiver must be able to tolerate long www.ensembledesigns.com BrightEye 72 - Page 29... - Page 30 Thus, dBm refers to power relative to 1 milliwatt, and dBu refers to voltage relative to .775V RMS. The original unit of measure was the Bel (10 times bigger), named after Alexander Graham Bell. www.ensembledesigns.com BrightEye 72 - Page 30...
- Page 31 A synchronizer will not convert an NTSC signal to a PAL signal; it takes a standards converter to do that. Frequency Response A measurement of the accuracy of a system to carry or reproduce a range of signal frequencies. Similar to Bandwidth. www.ensembledesigns.com BrightEye 72 - Page 31...
- Page 32 Some bits come slightly early, other come slightly late. The measurement of this jitter is given either as the amount of time uncertainty or as the fraction of a bit width. For 270 Mb/s video, the allowable jitter is 740 picoseconds, or 0.2 UI (Unit Interval – one bit width). www.ensembledesigns.com BrightEye 72 - Page 32...
- Page 33 (Engineers at the BBC claim that it stands for Perfection At Last.) Progressive An image scanning technique which progresses through all of the lines in a frame in a single pass. Computer monitors all use progressive displays. This contrasts to the interlace technique common to www.ensembledesigns.com BrightEye 72 - Page 33...
- Page 34 SDI system can carry a signal for up to 20 kilometers. Single mode fibers require particular care in their installation due to the extremely small optical aperture that they present at splice and connection points. See also Multi-mode. www.ensembledesigns.com BrightEye 72 - Page 34...
- Page 35 (R-Y) and Cb (B-Y). Y/Pr/Pb In analog component video, the image is carried in three components. The luminance is Y, the R-Y color difference signal is Pr, and the B-Y color difference signal is Pb. www.ensembledesigns.com BrightEye 72 - Page 35...
