Ensemble Designs BrightEye Mitto series Quick Start Manual

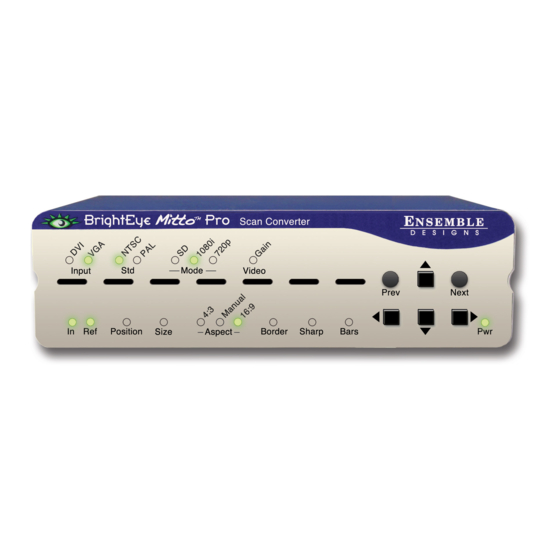

Front Panel Control Buttons
Arrow and Button Selection
Prev and Next navigate through the various controls, such as Aspect and Position.
When a control is selected its LED blinks on and off. Arrows change values for the
control you selected.
Size
The Size and Position controls let you select exactly what
part of the computer image you want to output to video.
When the Size LED is blinking, adjust the position of the
lower right corner of the selection. Use the four arrows to
control size.
Short cut: Press and hold up and down (or right and left)
arrows at the same time to reset to maximum possible size.
Position
When the Position LED is blinking, adjust the position of
the upper left corner of the selection. Use the four arrows
to control position. Press and hold for faster movement.
Short cut: Press and hold left and right arrows at the same
time to reset the H position to default values. Press and
hold up and down to reset V position.
Full Screen
With Position or Size LED blinking, press and hold the up,
left and right arrows at the same time to go to full screen.
Controls • Adjustments • Timing • Video Levels • Audio Levels • Aspect Ratio • Position • Size • Controls • Adjustments • Timing • Video Levels • Audio Levels • Aspect Ratio • Position • Size • Controls • Adjustments • Timing
Software Control
BrightEye PC and BrightEye Mac software provide complete and intuitive
control of the BrightEye Mitto including handles for timing, video format,
and video level adjustments.
Click the Selection Tool button in BrightEye Mac or PC to bring up the
Selection Tool.
Video Selection Tool
Click and drag to move and resize selection
The Selection Tool shows up as a black box around your
selection. It shows the portion of the video that will be output
from BrightEye Mitto. If your selection is small, such as a
YouTube™ video, it will be upconverted to full screen video.
Video!
Size
Position
Resize the selection window by clicking and dragging. Mitto's
video output automatically goes to pillar box or letter box as
needed. Mitto maintains perfect aspect ratio.
www.ensembledesigns.com +1 530.478.1830
10/2012
Purveyors of Fine Video Gear - Loved By Engineers Worldwide
In 1989, a former television station engineer who loved designing
and building video equipment, decided to start a new company.
He relished the idea of taking an existing group of equipment
and adding a few special pieces in order to create an even more
elegant ensemble. So, he designed and built his first product and
the company was born.
We listen to you - just tell us what you need and we'll do our best
to build it. We are completely focused on you and the equipment
you need. Being privately held means we don't have to worry
about a big board of directors or anything else that might take
attention away from real business. And, you can be sure that when
you call a real person will answer the phone. We love this business
and we're here to stay.
BrightEye and Avenue signal processing gear is used worldwide
in broadcast, production, post and sports facilities. Call us for
proven and reliable HD up/downconverters, frame syncs, audio
embedders, video converters, logo inserters, protection switches
Purveyors of Fine Video Gear - Loved By Engineers Worldwide
and sync pulse generators. And, you can relax knowing that each
product has a full five- year warranty.
Software and Ca
Quick Start Guide
Included w
BrightEye Mitto™
•
Included with your Mit
BrightEye Mitto™
• one U
BrightEye
one USB cable •
•
two VGA to DVI ad two V
3G / HD / SD Scan Converter 1. Install BrightE
3G / HD / SD Scan Converter
3G / HD / SD Scan Converter
1. Insta
The BrightEye Mac/PC
into your computer an
http://www.ensemble
The Bright
2. Connecting Yo
into your c
http://ww
• Connect a USB cable
• Connect the Mitto's D
• Connect the comput
2. Conn
Place holder.
• Connect the Mitto's S
Better screen shot of • If you are using audio
UI needed. connector.
• If you have a referen • Connect
zero-timed to the refer
• Connect
Superior Quality, Easy-To-Use
• Turn on your Mitto a
• Connect
Place holder.
• Connect
