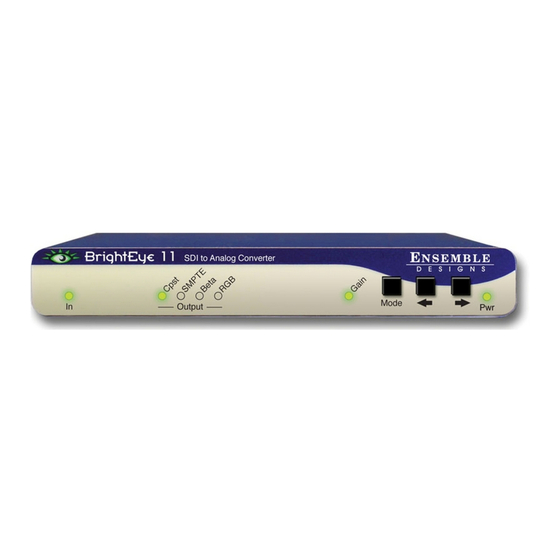

Ensemble Designs BrightEye 11 User Manual
  1. Manuals
  2. Brands
  3. Ensemble Designs Manuals
  4. Media Converter
  5. BrightEye 11
  6. User manual

Ensemble Designs BrightEye 11 User Manual

Sdi to analog converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SDI to Analog Converter
E
N S E M B L E
D
E
S
I
G
This user guide provides detailed information for using the BrightEye™11 SDI
to Analog Converter module.
The information is organized into the following sections:
• Product Overview
• Functional Description
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using The BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary
BrightEye 11

User Guide

N
S
BrightEye-1
TM
Revision 3.0 SW v1.0.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BrightEye 11 and is the answer not in the manual?

Questions and answers

Related Manuals for Ensemble Designs BrightEye 11

Summary of Contents for Ensemble Designs BrightEye 11

  • Page 1: User Guide

    BrightEye 11 SDI to Analog Converter User Guide N S E M B L E Revision 3.0 SW v1.0.4 This user guide provides detailed information for using the BrightEye™11 SDI to Analog Converter module. The information is organized into the following sections: •...

  • Page 2: Product Overview

    BrightEye PC or Mac. During this stage, gain can be adjusted for the correct output levels. BrightEye 11 is powered by a 12 volt DC universal power supply. This power supply can accept an input voltage between 90 and 230 volts, at 50 or 60 Hertz. It uses a standard IEC line cord and can be used anywhere in the world.
  • Page 3 This application, shown in the illustration below, utilizes the full functionality of BrightEye 11 by using the SDI output to feed a destination such as a video router while monitoring the signal on an RGB monitor at the same time.
  • Page 4 BrightEye 11 SDI to Analog Converter Driving an RGB Projector BrightEye 11 is an ideal solution for converting SDI to analog for driving an RGB projector similar to the example shown below. BrightEye 11 Projector SDI In Application for Driving an RGB Projector...

  • Page 5: Rear Connectors

    BrightEye 11 REAR CONNECTORS All connections to the BrightEye 11 converter are made on the rear of the unit. Refer to the illustration below. BrightEye 11 Rear Connectors Power Connection Connect a modular power supply to the 12 volt DC power input connection on the far left of the unit.
  • Page 6 BrightEye 11 SDI to Analog Converter C, Pr, R Out The function of this connector varies according to the selected output format as follows: • C – S-Video C output (use Y /C S-Video adapter) NTSC or PAL • Pr – SMPTE/Beta analog component color difference R-Y channel output •...

  • Page 7: Operation

    BrightEye 11 OPERATION Control and operation of the BrightEye 11 converter is performed from the front panel or with the BrightEye Control application. Some control settings are only available with BrightEye PC or Mac. These parameters NOTE cannot be monitored or controlled with the front panel.

  • Page 8: Adjusting Parameters From The Front Panel

    BrightEye 11 SDI to Analog Converter ADJUSTING PARAMETERS FROM THE FRONT PANEL Use the Mode, Right Arrow, and Left Arrow buttons to select and adjust parameters from the front panel. Pressing the Mode button activates the front panel for editing and tabs between each section of editable parameters.

  • Page 9: Using The Brighteye Control Application

    USING THE BRIGHTEYE CONTROL APPLICATION The BrightEye PC and BrightEye Mac applications included on CD-ROM are designed to allow you to configure and control the BrightEye 11 from a personal computer. Installation and instructions for using this software application are given in the PDF manual on disk.
  • Page 10 BrightEye 11 SDI to Analog Converter • Setup – check the box to add setup to the output signal (525 mode). Leave the box unchecked for no setup. This control is only available on BrightEye PC. There is no front panel control or indication of this setting.Setup will be grayed out when a SMPTE, RGB, or 625 input signal is present.

  • Page 11: Warranty And Factory Service

    WARRANTY AND FACTORY SERVICE Warranty Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of five years from the date of delivery. During this two year warranty period, Ensemble Designs, Inc. will repair any defective units at Ensemble’s expense if the unit should be determined to be defective after con-...

  • Page 12: Specifications

    BrightEye 11 SDI to Analog Converter SPECIFICATIONS Serial Digital Input: Number: Signal Type: 270 Mb/s SD Serial Digital (SMPTE 259M) Impedance: 75 Ω Return Loss: > 15 dB Max Cable Length 300 meters Analog Output: Number: One component or one composite andk one Y/C...

  • Page 13: Brighteye Power Supply Information

    BrightEye 11 BRIGHTEYE POWER SUPPLY INFORMATION Below is a list of power supplies and optional items that may have come with your BrightEye: BEPS BrightEye Individual Power Supply. BEPS6 Spider Power Supply. This powers 6 single high BrightEyes or 3 double high BrightEyes (BrightEye 90 family).
  • Page 14 BrightEye 11 SDI to Analog Converter GLOSSARY This is a brief glossary of commonly used terms associated with this product. AES/EBU The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair.
  • Page 15 BrightEye 11 Chroma The color or chroma content of a signal, consisting of the hue and saturation of the image. See also Color Difference. Component In a component video system, the totality of the image is carried by three separate but related components. This method provides the best image fidelity with the fewest artifacts, but it requires three independent transmission paths (cables).
  • Page 16 BrightEye 11 SDI to Analog Converter dBFS In Digital Audio systems, the largest numerical value that can be represented is referred to as Full Scale. No values or audio levels greater than FS can be repro- duced because they would be clipped. The nominal operating point (roughly corre- sponding to 0 VU) must be set below FS in order to have headroom for audio peaks.
  • Page 17 BrightEye 11 The International Electrotechnical Commission provides a wide range of worldwide standards. They have provided standardization of the AC power con- nection to products by means of an IEC line cord. The connection point uses three flat contact blades in a triangular arrangement, set in a rectangular connector.
  • Page 18 BrightEye 11 SDI to Analog Converter Multi-mode Multi-mode fibers have a larger diameter core (either 50 or 62.5 microns), and a correspondingly larger aperture. It is much easier to couple light energy into a multi-mode fiber, but internal reflections will cause multiple “modes” of the signal to propagate down the fiber.
  • Page 19 BrightEye 11 Return Loss An idealized input or output circuit will exactly match its desired impedance (generally 75 ohms) as a purely resistive element, with no reactive (capacitive or inductive elements). In the real world we can only approach the ideal. So our real inputs and outputs will have some capacitance and inductance.
  • Page 20 BrightEye 11 SDI to Analog Converter A Time Base Corrector is a system to reduce the Time Base Error in a signal to acceptable levels. It accomplishes this by using a FIFO (First In, First Out) memory. The incoming video is written into the memory using its own jittery timing.
