Techly IDATA EXTIP-383IR User Manual page 10

PS3
PS3
HDMI Source
EN

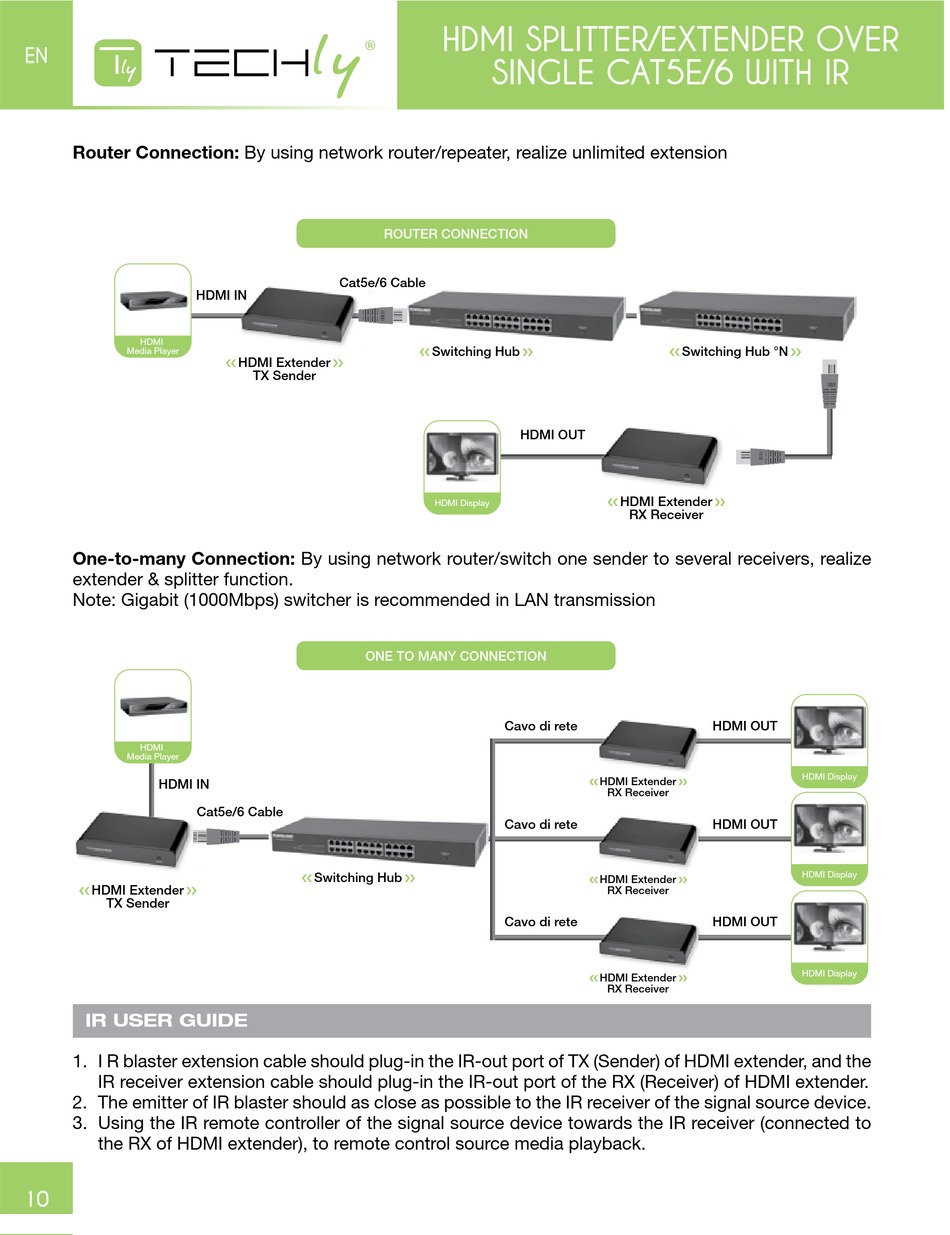

Router Connection: By using network router/repeater, realize unlimited extension
HDMI IN
HDMI IN
HDMI
Media Player
HDMI
Media Player
One-to-many Connection: By using network router/switch one sender to several receivers, realize
extender & splitter function.
Note: Gigabit (1000Mbps) switcher is recommended in LAN transmission
HDMI
Media Player
HDMI IN
HDMI
Media Player
Cat5e/6 Cable
HDMI IN
Cat5e/6 Cable
HDMI Extender
‹‹ ››
TX Sender
HDMI Extender
‹‹ ››
TX Sender
IR USER GUIDE
1. I R blaster extension cable should plug-in the IR-out port of TX (Sender) of HDMI extender, and the
IR receiver extension cable should plug-in the IR-out port of the RX (Receiver) of HDMI extender.
2. The emitter of IR blaster should as close as possible to the IR receiver of the signal source device.
3. Using the IR remote controller of the signal source device towards the IR receiver (connected to
the RX of HDMI extender), to remote control source media playback.
10
