Parker 890CS Product Manual
  1. Manuals
  2. Brands
  3. Parker Manuals
  4. DC Drives
  5. 890CS
  6. Product manual

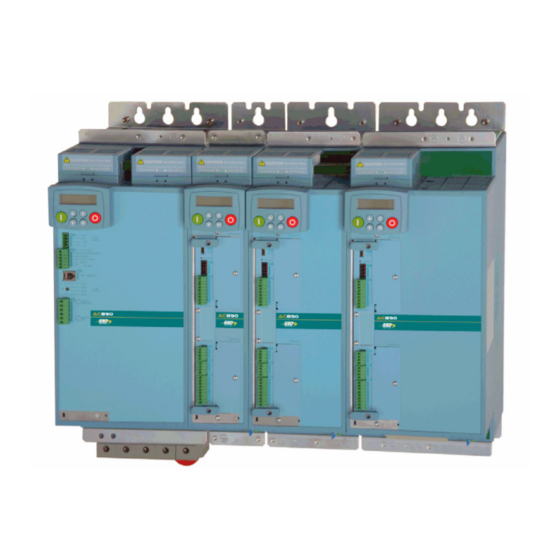

Parker 890CS Product Manual
