Menu Maps

This section will help you get to your destination while
letting you know what test leads you may need when you
arrive. The test leads are represented by symbols for their
connectors.

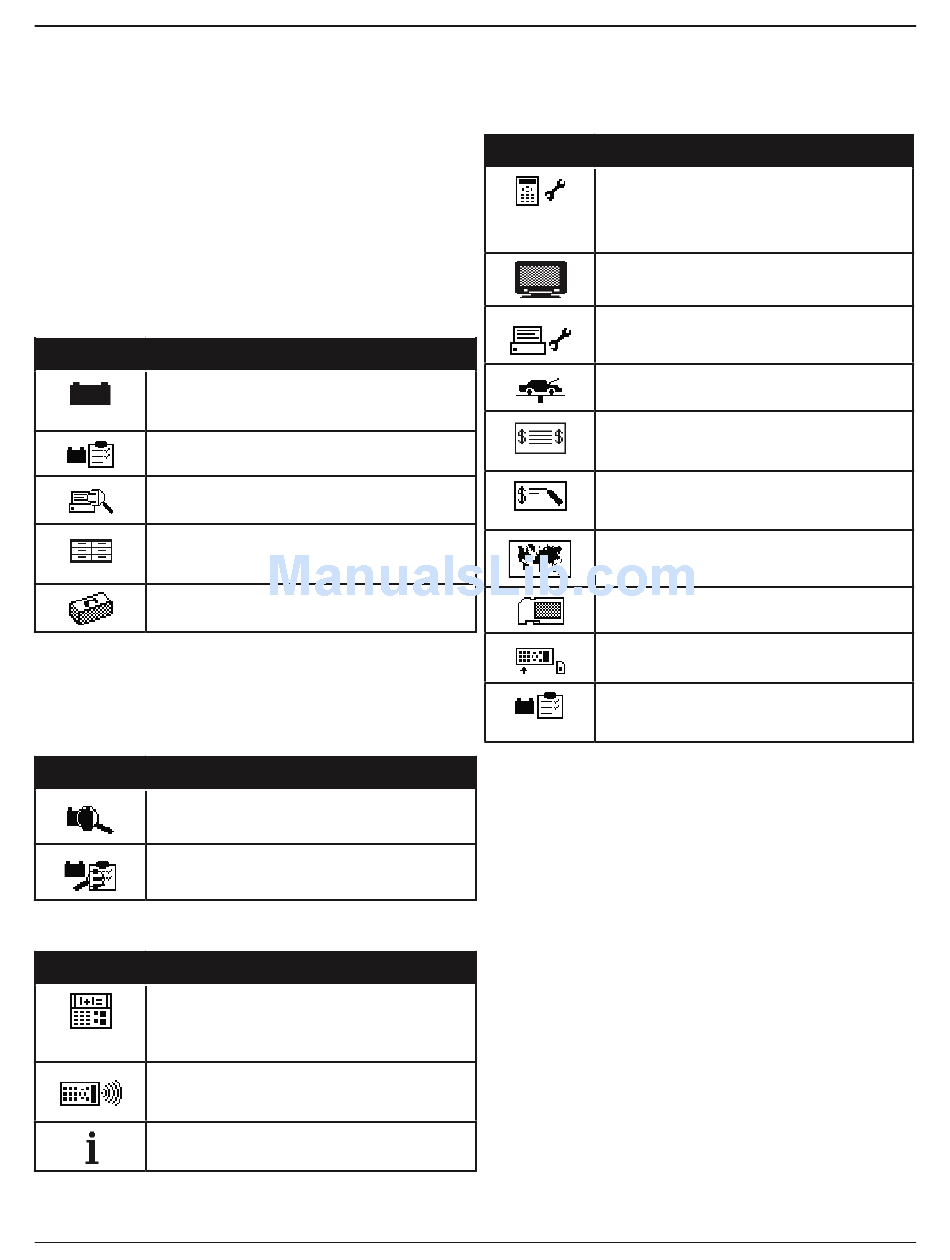

Main Menu

The Main Menu is the starting point for all tools and utilities,
which are depicted as icons. Some icons lead directly to the
function they represent, while others are menu icons that
lead to two or more functions. Menu icons are marked here
with an asterisk (*) and are mapped on the following pages.
Icon
The BATTERY TEST tests a battery using the
battery information you select in a series of
screens.
QC TEST is used for testing stock or
compound batteries.
PRINT/VIEW for all statistical info and
software version info.
INFO contains a test counter, data transfer
utility, and the EXP software version and
serial number.
UTILITY includes functionality to setup the
tester.

Print/View Menu

The tester stores the last test results in its memory until you
perform another test. To review or print results before you
retest, select a test type in the Print/View Menu.
Icon
Displays the last test results.
Displays the last QC test result.

Info Menu

Icon
TOTALS displays the total battery tests
performed since the tester was first used, the
totals by decision, or allows you to clear the
counters.
An optional IR software and hardware
package enables you to transfer test data to
a PC.
Displays the software version and serial
number.
www.midtronics.com
Description
Description
Description

Utility Menu

The Utility Menu lets you customize your analyzer for your
needs.
Icon
The CONFIG TESTER menu allows you to
set the following parameters:
TIME, MODE, DATE, FORMAT,
TEMPERATURE UNITS and WRITE FAIL.
The DISPLAY allows you to set the contrast
of the LCD.
Enables you to configure the printer to IrDA.
Create your own address details for
printouts with the SHOP INFO icon.
If you have created a coupon in the
COUPON utility, use coupon to enable or
disable.
EDIT COUPON allows you to create and
store up to three separate coupons to be
printed on test results.
With the LANGUAGE menu you can select
one of the 10 available languages.
With FORMAT CARD you erase all
information on the data card
With UPDATE you can install new software
on the tester
BATTERY LIST allows you to add and
delete batteries, and import and export
battery lists.
9
