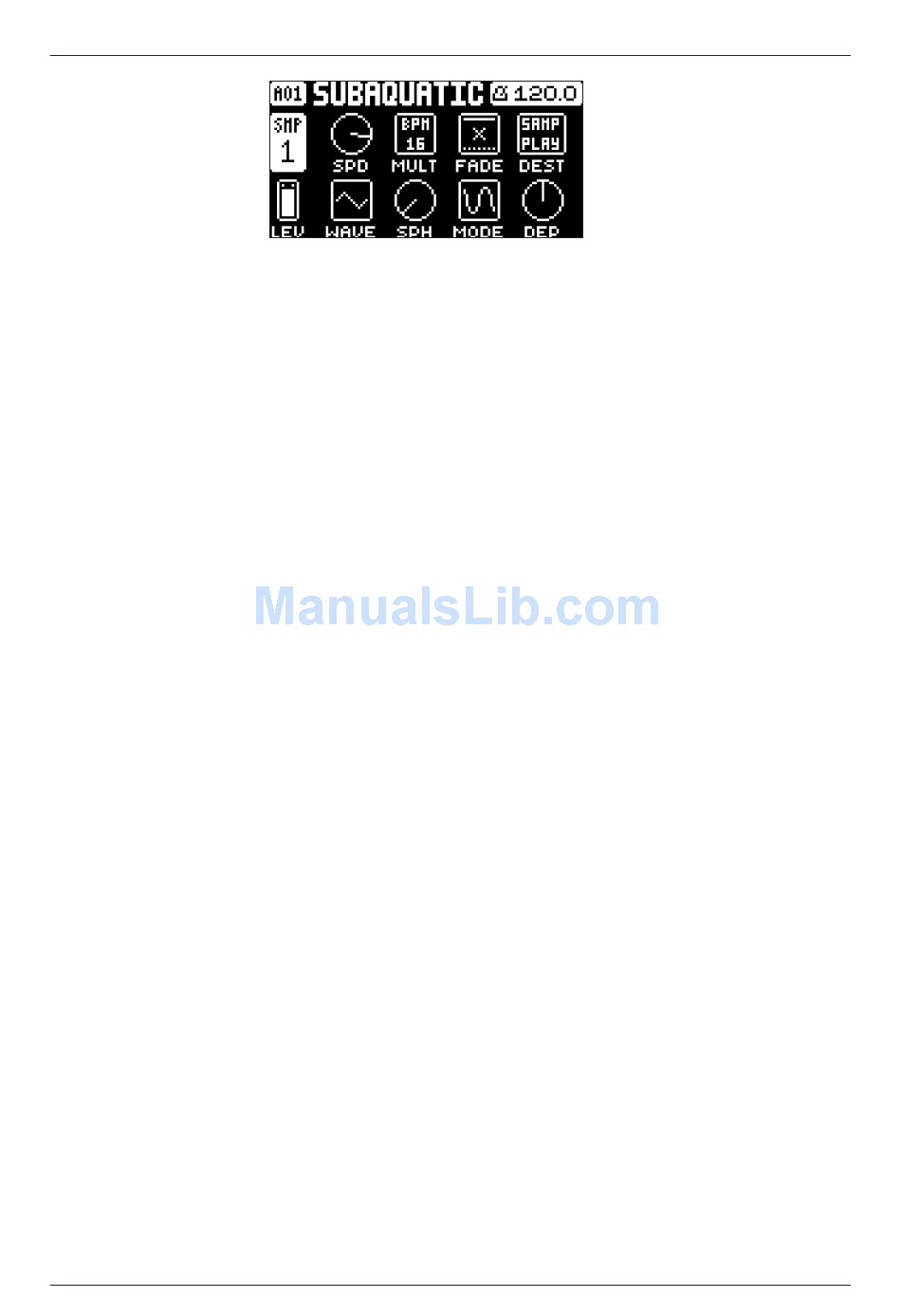

11.7.1 SPD
Speed sets the speed of the LFO. Try settings of 8, 16 or 32 to sync the LFO to straight beats. The knob
is bipolar. The LFO cycle can be played backward by using negative values. (-64.00–63.00)
11.7.2 MULT
Multiplier multiplies the SPD parameter by the set factor either by multiplying the current tempo (BPM
settings), or by multiplying a fixed tempo of 120 BPM.
11.7.3 FADE
Fade In/Out makes it possible to fade in/fade out the LFO modulation. The knob is bipolar. Positive val-
ues give a fade-out, negative values give a fade in. 0 gives no fade in/fade out. (-64–63)
11.7.4 DEST
Destination selects the modulation destination for the LFO. Preview how the LFO modulation will affect
the sound by highlighting a destination. Press [YES] to confirm the selection.
11.7.5 WAVE
Waveform sets the LFO waveform. There are seven waveforms: Triangle, Sine, Square, Sawtooth, Expo-
nential, Ramp, and Random.
11.7.6 SPH
Start Phase sets the point within the wave cycle where the LFO will start when it is trigged. 0 makes the
LFO start at the beginning of a complete wave cycle, 64 makes it start at the center. (0–127)
11.7.7 MODE
Trig Mode sets how the LFO will act when a note is trigged.
• FRE is the default free-running mode. It makes the LFO run continuously, never restarting or
stopping even if notes are trigged..
• TRG makes the LFO restart when a note is trigged.
• HLD makes the LFO run free in the background, but when a note is trigged the LFO output level is
latched and held still until the next note is trigged.
• ONE will make the LFO start from the beginning when a note is trigged, run for one cycle and then
stop. This makes its function similar to an envelope.
• HLF will make the LFO start from the beginning when a note is trigged, run for half a cycle and
then stop.
11.7.8 DEP
Depth sets the depth and polarity of the LFO modulation. Both negative (inverted) and positive modula-
tion depth is possible. A center setting, 0.00, equals no modulation depth. (-64.00–63.00)
11. AUDIO TRACK PARAMETERS
