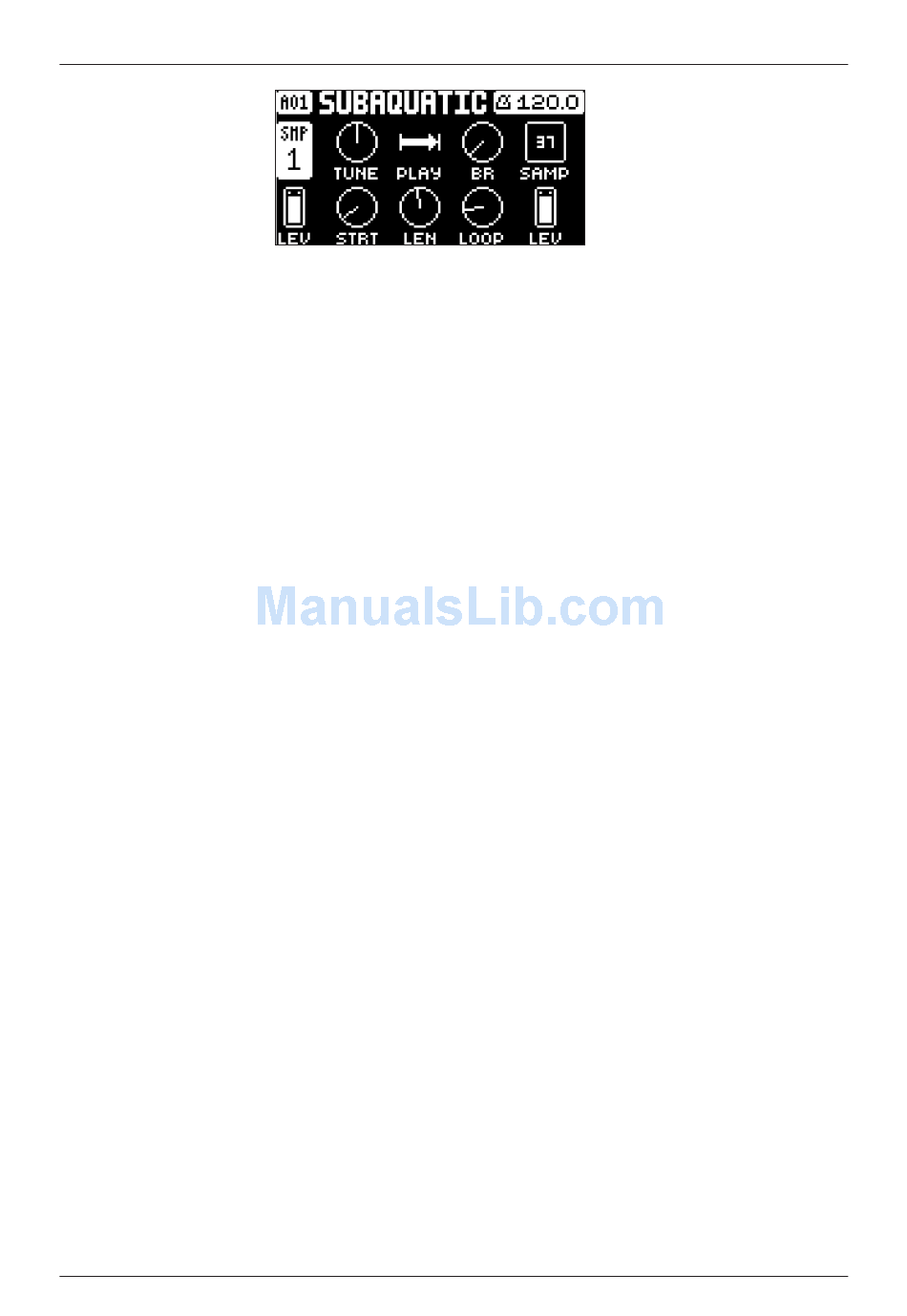

11.3.1 TUN
Tune sets the pitch of the sample. The knob works in a bipolar fashion, and a value of 0 leaves the pitch
unchanged. (-24.00–+24.00, equivalent to four octaves.)
11.3.2 PLAY
Play Mode sets the play mode of the sample. It controls how the sample will be played back when it is
trigged.
The different modes are:
• REVERSE The sample will be played back in reverse once every time it is trigged.
• REVERSE LOOP The sample will loop continuously in reverse between Loop Position and Length.
How long it will loop for is set with the LEN parameter on the TRIG page. This time is also constrained
by the AMP page envelope parameters HLD and DEC.
• FORWARD LOOP The sample starts at the STRT position and will loop continuously between Loop
Position and Length. How long it will loop for is set with the LEN parameter on the TRIG page. This
time is also constrained by the AMP page envelope parameters HLD and DEC.
• FORWARD The sample will be played back once every time it is trigged.
11.3.3 BR
Bit Reduction. Increasing the value of this parameter decreases the resolution of the sample, making it
more lo-fi. (0–127)
11.3.4 SAMP
Sample Select. Here you can browse the list of the up to 127 samples that are loaded to the project, and
assign them to the audio tracks. Turn the knob clockwise to scroll down the list, counter-clockwise to
scroll up. The first position, OFF, plays no sample. Press [FUNC] + [SRC] to quickly access this parame-
ter. You must to load a sample from the +Drive to the project before you can assign it to a track. For more
information, please see "14.4 ASSIGNING A SAMPLE TO A TRACK FROM THE +DRIVE" on page 50.
(OFF, 1–127).
11.3.5 STRT
Start sets the start position for playback of the sample. (0.00–120.00)
11.3.6 LEN
Length sets the length of the playback of the sample. Start + Length effectively define the end point of
the portion of the sample that is played. (0.00–120.00)
11.3.7 LOOP
Loop Pos sets the position in the sample to where playback will return to after reaching the Length
Position (defined by STRT + LEN) of the sample if PLAY MODE is set to FORWARD LOOP or REVERSE
LOOP. The sample is then looped between the end of LEN and LOOP. (0.00–120.00)
11.3.8 LEV
Sample Level sets the level of the sample. (0.00–127.00)
