3. PANEL LAYOUT AND CONNECTORS

3. PANEL LAYOUT AND CONNECTORS

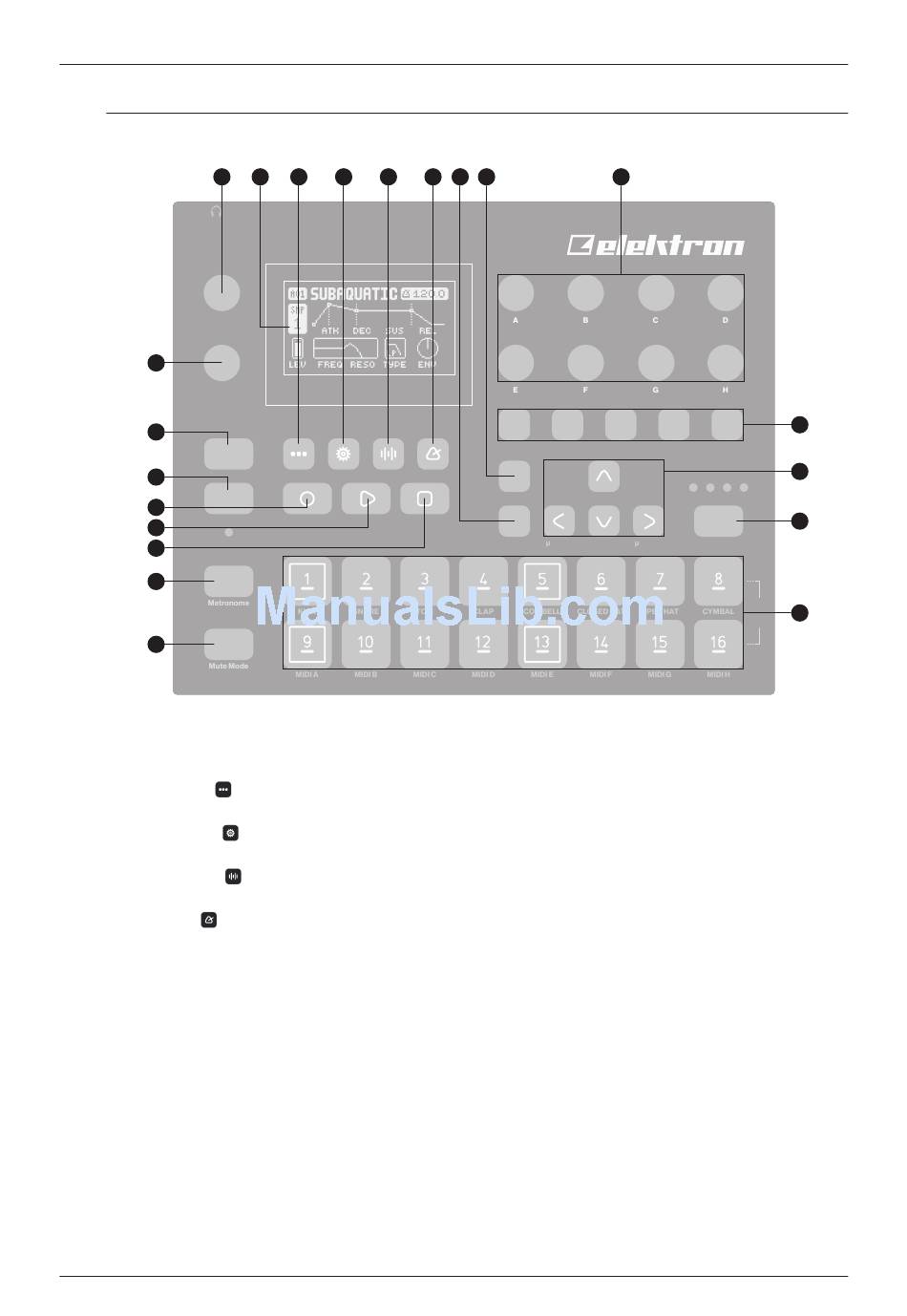

3.1 FRONT PANEL

1
Master Volume
21
Level/Data
Sound Browser
20
FUNC
19
TRK
18
Chromatic
17
16
15
PTN
14
BANK
1. MASTER VOLUME sets the volume for the main outputs and the headphones output.
2. Screen.
3. [PATTERN]
The secondary function accesses the Import/Export menu.
4. [SETTINGS]
The secondary function saves the current project.
5. [SAMPLING]
The secondary function starts Direct Sampling.
6. [TEMPO] opens the TEMPO menu, where you can adjust the global/pattern tempo and also adjust
the swing. The secondary function makes it possible to tap the tempo.
7. [NO] key. Used for exiting an active menu, backing one step and negating. The secondary function is to
temporary reload the active pattern.
8. [YES] key. Used for entering sub-menus, selecting and confirming. The secondary function is to tempo-
rary save the active pattern.
9. DATA ENTRY knobs A-H. Used for setting parameter values. Press and turn the knobs to change values
in larger increments.
10. [PARAMETER] keys access the PARAMETER pages of the active track. The color of the keys indicates
if the page is active (red/orange) or inactive (off).
• [TRIG PARAMETERS] accesses parameters such as NOTE, VELOCITY, and other trig related param-
eters. The secondary function accesses the QUANTIZE menu.
• [SRC] takes you to the SOURCE page that deals with sample playback on audio tracks. For MIDI
tracks this page has parameters such as CHANNEL, PROGRAM, and AFTERTOUCH. The secondary
function accesses SAMPLE SELECT.
• [FLTR] accesses the FILTER page. Here are the parameters for the multimode filter for the audio tracks.
On MIDI tracks you find the CC value settings here. The secondary function accesses the DELAY page.
