TILE
CUTTING
SAW
500W 115mm
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 500W
Input: 230 – 240V~50Hz
No Load Speed: 5,200min
¯1
Blade: Ø115 x Ø22.2mm
Max. Depth Of Cut: 24mm
Table Size: 330 x 360mm
Weight: 5.9 kg
ozito.com.au
WHAT'S IN THE BOX

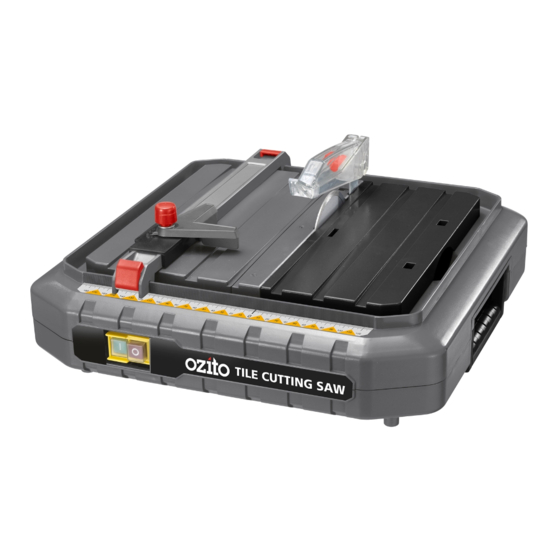

Tile Cutting Saw
Diamond Blade
Parallel Fence &
Mitre Guide
Blade Guard
Spanners x 2, Rubber
Feet x 4
TCS-115
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ozito TCS-115
Summary of Contents for Ozito TCS-115
- Page 1 SPECIFICATIONS Motor: 500W Input: 230 – 240V~50Hz No Load Speed: 5,200min ¯1 Blade Guard Blade: Ø115 x Ø22.2mm Max. Depth Of Cut: 24mm Table Size: 330 x 360mm Weight: 5.9 kg ozito.com.au Spanners x 2, Rubber Feet x 4 TCS-115...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION TILE CUTTING SAW 1. ASSEMBLY 1. Mitre guide locking knob 8. Diamond blade 2. Parallel fence 9. Blade guard Prior to using the Tile cutting saw, the rubber feet, diamond blade, blade 3. Mitre guide 10. -
Page 3: Fitting The Blade Guard
Fitting the blade guard 5. Slide the blade cover back into its original position. 1. Remove the screw and washer from the blade guard bracket. 6. Fasten the blade cover in place with the washer and screw. 2. Position the blade guard bracket within the water reservoir. -
Page 4: Setup And Adjustments
2. SET UP AND ADJUSTMENTS Setting up the parallel fence WARNING! ENSURE THE TOOL IS DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING 1. Release the parallel fence locking ANY OF THE FOLLOWING OPERATIONS. clips and place the parallel fence onto the working table. Ensure that it is parallel to the blade. -
Page 5: Operation
Securely hold the mitre guide and workpiece and evenly guide the workpiece into the diamond blade. Make sure that the workpiece sits firmly in the guide before making the cut. TCS-115... -
Page 6: Maintenance
MAINTENANCE 4. CHANGING THE BLADE CAUTION! NEVER USE A BLADE THAT IS TOO THICK TO 6 . Place the new diamond blade on ALLOW THE OUTER BLADE WASHER TO ENGAGE WITH the spindle, so that it sits centrally THE FLATS ON THE SPINDLE. IT WILL PREVENT THE aligned on the inner flange. -
Page 7: Description Of Symbols
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tile saw by an unauthorised person Power tools that are no longer usable should not be disposed of or by mishandling of the tool. - Page 8 Tool: SPARE PARTS Model No. 42 43 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. Switch SPTCS115-05 Safety Guard SPTCS115-35...
-
Page 9: Electrical Safety
The tool is earthed in accordance with AS/NZS 60335-1 Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. GENERAL POWER TOOL SAFETY WARNINGS... -
Page 10: Warranty
Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0913...
