User Manual Home Automation CAV-705U • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
20. Miscellaneous....................24 21. Specifications ....................25 1. Greeting ● Thank you for purchasing a COMMAX product ● Please, use the product after carefully reading this Manual ● This type of videophone can be used in apartments, villas and other buildings as a... -
Page 3: Warnings And Caution
www.safemag.ru 2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated. - Page 4 www.safemag.ru Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Parts And Functions

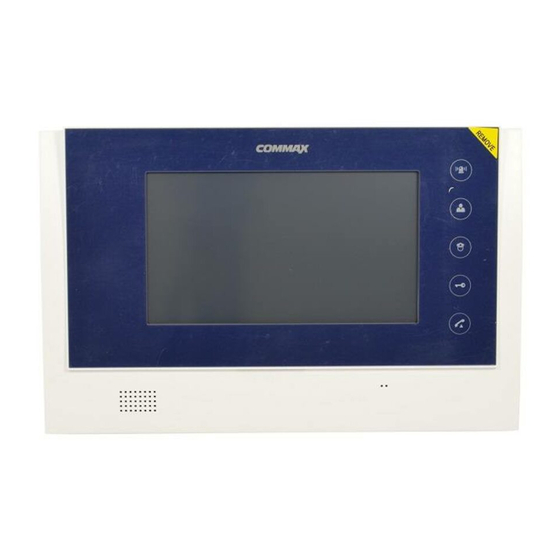

3. Parts and functions CAV-705U ① ⑤ ⑥ ⑦ ⑪ ⑧ ⑨ ⑩ ② ③ ④ Part Part LCD & TOUCH SCREEN Guard button Speaker Door release button Power LED Talk button Power switch Emergency button Wiring connector Monitoring button... -
Page 6: Compositions
4. Compositions ▲ Monitor ▲ Wall bracket ▲ User manual 벽걸이 브라켓 사용설명서 본체( CAV-705U) GH1T 4X18 ZNW GH1T 4 X 50 ZnY PHM 3 X 6 ZnY 2P(3EA) 3P(1EA) 4P(1EA) Connectors 연결 컨넥터 Connectors 연결 컨넥터 Connectors 연결 컨넥터... -
Page 7: Main Menu
www.safemag.ru 5. Main menu ① Door : Door camera monitoring and talk ② Guard : Guard station call and talk ③ Telephone : Telephone and extension/neighbor talk ④ EMS(Energy Management System) : Remote control(Secumax - remote metering and control) Device control(Lighting / Gas valve / Boiler) ⑤... -
Page 8: Household Setting (Household No./ Pin / Extension)
www.safemag.ru 6. Household setting (household No./ PIN / extension) ※ It shows the following screen after pressing 「 「 Setting 」 」 icon and 「 「 Household」 」 in order. 1. Household No. setting It shows setting menu of building and room No. after pressing 「 House Num 」 icon ①... -
Page 9: Away Mode Setting
www.safemag.ru 7. Away mode setting ※ It shows the following screen after pressing 「 「 Setting」 」 icon and 「 「 Setting away mode」 」 in order. ① You can activate each icon to be operating in away mode. (Devices and sensors should be installed before activating) - Security1(Burglar1) : Activating security 1 sensor in away mode - Security2(Burglar2): Activating security 2 sensor in away mode - All lights off : Activating all lights Off in away mode... -
Page 10: Individual Door Talk
www.safemag.ru 8. Individual door talk ● ● How to use door monitoring/talk and basic function 1. Individual door monitoring and talk ① When you press 「 Door 」 icon, it shows door monitoring ② When you press 「 Talk 」 icon, it enables to talk ③... - Page 11 www.safemag.ru ● ● Display setting It shows Color, Contrast and Brightness after pressing 「 Display 」 icon while talking/monitoring. (You can make factory default(medium value) by pressing 「 Initial 」 ) ● ● Screen scrolling and zoom in & out 1.
-
Page 12: Guard Station Talk
www.safemag.ru 9. Guard station talk ● ● How to use guard call and talk 1. Guard call ① When you press 「 Guard 」 icon, it executes calling and talking ② When you press 「 Talk end 」 icon, it ends talking 2. -
Page 13: Emergency Function
www.safemag.ru 10. Emergency function ● ● How to activate emergency function It generates emergency when you press 'Emergency button more than 1 sec on the right upper side. (With emergency sound generating, guard station gets emergency signal from household ● ● How to release emergency function You should check all the circumstances in your house after emergency happened and press 「... -
Page 14: Telephone Function(Telephone/Extension/Neighbor Talk)
www.safemag.ru 11. Telephone function (Telephone/Extension/Neighbor talk) ※ It shows the following screen once you press 「 「 Telephone 」 」 icon ● ● How to register numbers and make a telephone call ① Calling : Press 「 Telephone 」 icon and conafter entering the numbers you want to call Press 「... -
Page 15: Volume Control(Receiving / Calling / Button Tone)
www.safemag.ru 12. Volume control(Receiving / calling / button tone) ※ It shows the following screen once you press 「 「 Volume 」 」 icon ● ● How to control volume 1 It shows control pad after pressing 「 Volume 」 icon 2 You can control volume through +, - of volume control from assigned icon ※... -
Page 16: Ems Function (Device Control)
www.safemag.ru 13. EMS function (Device control) ※ Each device tab is shown automatically after product booting In case a device is not properly connected, it does not appear. (In order to make sure device checking, please make power on again. ※... - Page 17 www.safemag.ru 2) Gas control : Press 「 「 EMS」 」 → → 「 「 Gas」 」 in order to move to control screen. ● ● Gas valve status screen Open / Close : It shows the status of the assigned valve ●...
- Page 18 www.safemag.ru 3) Boiler control : Press 「 「 EMS」 」 → → 「 「 Boiler」 」 in order to move to control screen. ● ● Temp control status screen ① Operating condition : The display highlighted in green means ON and grey means OFF. ②...
- Page 19 www.safemag.ru 4) Remote control : Press 「 「 EMS」 」 → → 「 「 Remote control」 」 in order to move to control screen. ● ● Remote metering You can check the real time based following date by pressing [Requesting remote metering data] ①...
-
Page 20: Detoured Call
www.safemag.ru 14. Detoured call ● In case away mode is activated, all the calls from lobby and individual door detour and talk with guard station ※ receiving sound might be lower as the call routs through many paths 15. Delivery notice When guard station makes delivery call to household, 「... - Page 21 www.safemag.ru Security2 function After pressing 「 Security2 」 icon while standby status, it makes 「 Security2 」 icon and its function are activated. Burglar alarm rings(Police car sound) and signal delivers to guard station when it gets movement. How to release security function Press 「...
-
Page 22: Wiring
17. Wiring Diagram VIDEO CAMERA FIRE_LADDER LB_VD_CONT VIDEO OUT VIDEO IN LOBBY LB_CONV CAV-705U DATA GD_CONV 3 GUARD GD_CONV 2 DC_OUT GD_CONV 1 DC14V(+) (300mA) VIDEO OUT 485 DEVICE 485+A (LIGHTING, CONV SLAVE PHONE 485-B GAS,BOILER) 485+A 485-B EMERGENCY_... - Page 23 www.safemag.ru ▣ Emergency Button Connect the emergency switch referring to wiring diagram. Please press it more than 1 sec to avoid malfunctioning. ▣ Fire ladder It generates alarm in case of using fire ladder. Please connect two wires from lead switch when you do not use emergency ladder to avoid malfunctioning ▣...
-
Page 24: Operation Tips
www.safemag.ru 18. Operation tips Troubles Cause Remedy Replace camera to the Due to backlight, aperture Blackened visitor’ image ● place where there is no is respond too brightly in clear background backlight Due to foreign substance on Remove foreign Blurry screen ●... -
Page 25: Attention When In Use
If you still can’t correct an operating problem, contact your dealer. If your dealer is unable to solve your problem, contact Commax Customer Service. Please don’t open the cabinet and attempt to repair the unit, as this will void your warranty. -
Page 26: Specifications
www.safemag.ru 21. Specifications Content Item Telephone: 2 wires, Door camera: 4 wires, Fire ladder : 2 wires, Lobby: 4 wires in common, Guard station : 8 wires in common, SLAVE : 6 wires, Wiring Emergency switch : 2 wires, Sensor: 12 wires Power 100~240V, 50~60Hz(FREE VOLTAGE) , 0.3A Power... - Page 27 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM02705U0010 Printed In Korea / 2014.05.104 www.safemag.ru...
