User Manual

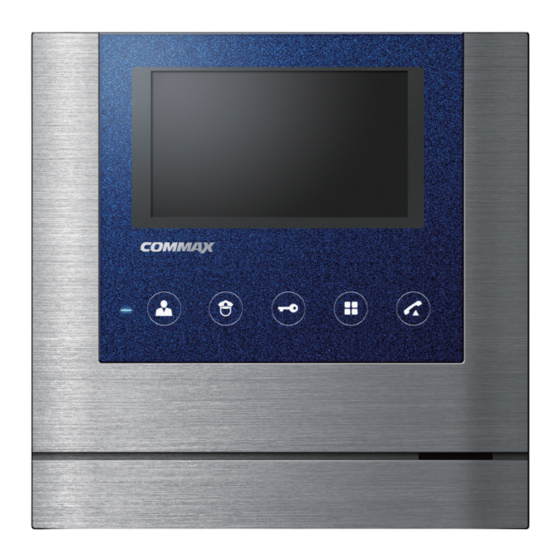

Color Video Door Phone CAV-43MG
Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAV-43MG and is the answer not in the manual?

Questions and answers

Summary of Contents for Commax CAV-43MG

  • Page 1 Color Video Door Phone CAV-43MG Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
  • Page 2: Table Of Contents

    8. Wiring Installation Method ··························································································11 9. PART NAME AND FUNCTIONS ··················································································12 10. Specifications ········································································································12 1. Greeting Thank you for purchasing a COMMAX product ● Please, use the product after carefully reading this Manual ● This type of videophone can be used in apartments, villas and other buildings as a ●...
  • Page 3: Warnings And Caution

    2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning If an abnormal sound, burning Please don’t disassemble, Please don’t insert any Please use only the designated smell or smoke is coming out metallic or burnable materials batteries for the products of repair or rebuild this product of the product, please plug out arbitrarily (please contact the into the ventilation hole.
  • Page 5: Part Name And Functions

    3. Part names and functions 번호 내 용 번호 내 용 Power ON/OFF switch Door release button (UP button) : It’s for door release or moving to the other menu item Power LED Microphone MENU(Menu button) Monitor(LCD) : It shows the visitor’s image. Talk button Monitor button(SELECT button) Speaker...
  • Page 6: Operating

    4. Operating 4-1. Call from door camera ① When a visitor at the door calls, it chimes and the image of the visitor is shown on the screen. ② By pressing MONITOR BUTTON, you can talk to a person at the door. If you press DOOR RELEASE BUTTON, the door is released.
  • Page 7: Set Up

    4-4. Monitoring (1)In case both lobby and individual cameras are installed Click the monitor button once in standby mode to check the images from Individual camera. Click the button twice for Lobby images and three times for returning to standby mode. (Note. It is not available during the talk. During the monitoring - (Calling is available with the camera by pressing the talk button during the monitoring.) (2) In case only lobby is installed...
  • Page 8 ④ After adjusting, press the SELECT button and save the setup. (4) RESET : It initializes the screen setup. ※ Setting Method ① In Setting mode to move DOOR VIDEO SET please press SELECT button Press UP/DOWN button to move RESET category. ②...
  • Page 9 ② Press SELECT button to select category. ③ Press UP/DOWN button to control CHIME-BELL VOLUME. The user can check all of CHIME-BELL VOULME size. ④ Press the SELECT button when you set up. (2) EXIT : Return to previous MENU. 5-2.
  • Page 10: Reset

    ※ Setting Method ① 5-2 In SYSTEM SETTING MODE to move HOME SET category and press SELECT buttom to move LOBBY ID by UP/DOWN button. ② Press SELECT button to select category (Standard: 01) ③ Press UP/DOWN button to input from 01 to 39. (MAIN LOBBY ID) ④...
  • Page 11: The Use Of Lobby Phone (In Case There Are Common Lobby)

    7. The use of lobby phone (In case there are common lobby) 1) When paging the household Enter the Household Number. Press the page button. ● Enter the household number you want to cal.1 ex) unit 101 A paging tone will sound. ex) household 101 1, 0, 1 ⇒...
  • Page 12: Wiring Installation Method

    8. Wiring Installation Method...
  • Page 13: Part Name And Functions

    9. PART NAME AND FUNCTIONS ③ Manual ② Bracket for wall mount ① Body of CAV-43MG ⑥ 2P Connector(2EA) ④ T4 X 18(4EA) ⑤ M3 X 6(1EA) 4P Connector(1EA) Screw for wall mount Screw for body 10P Connet(1EA) 10.Specifications 모델명...
  • Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2017.01.104...
