513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int'l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
Printed In Korea/ 2010.0 4.101

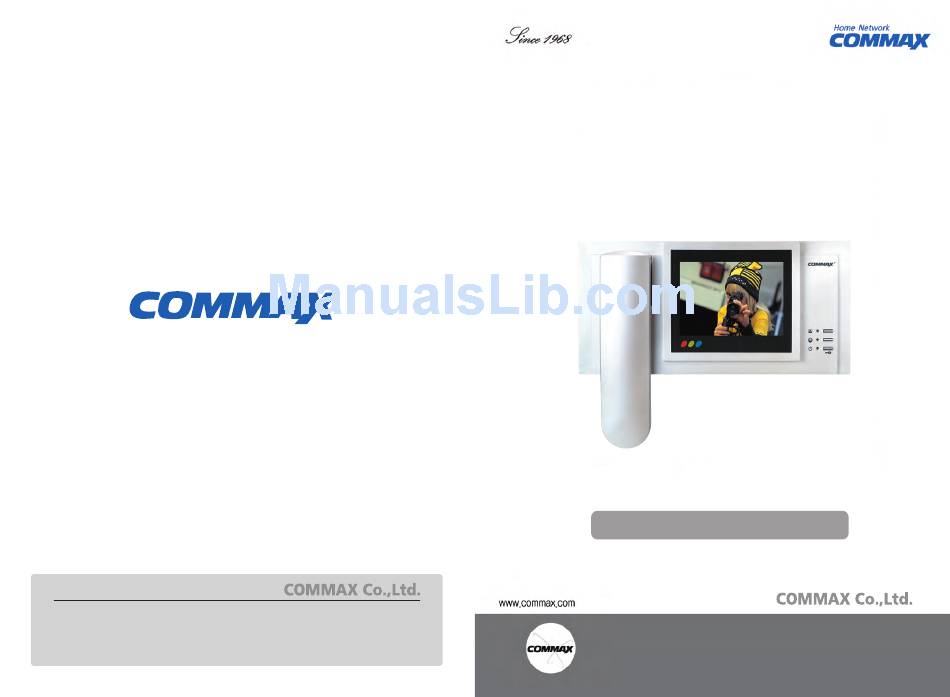

User Manual

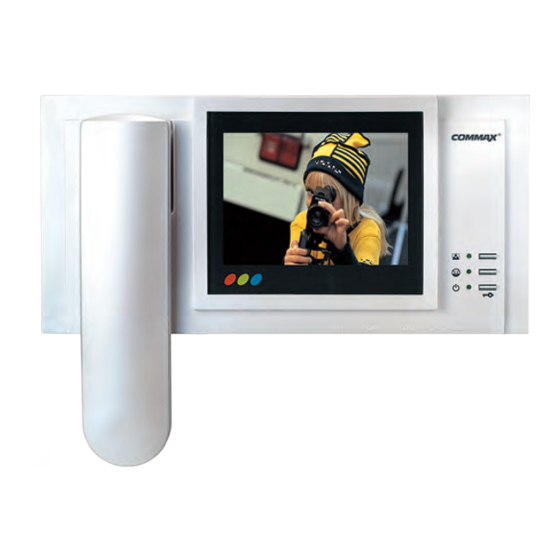

VIDEO DOOR PHONE CAV-51M
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAV-51M and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CAV-51M

Summary of Contents for Commax CAV-51M

  • Page 1: User Manual

    513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 • Thank you for purchasing COMMAX products. Web site : www.commax.com • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Table of Contents Warnings and caution Features & Specifications Part Name & Function Multi Entry Panel Calling Sub unit calling (Intercommunication) Guard station or external area calling Call/ Talk duration Setting In-House unit as a Master and Sub Unite Chime sound Changing and initialization of the password Opening the entrance of a Multi-entry Panel With Password...

  • Page 3: Warnings And Caution

    Warnings and caution Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket.
  • Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the Otherwise, it may not function plug immediately and contact properly. Commax service center.

  • Page 5: Features & Specifications

    4. 5”TFT LCD Monitor 5. 3 buttons : “Guard station call”, “Door release” and “Extension call” 6. COMMAX chime (Sol, Mi, Do) is the ring tone that sounds from Multi Entry Panel. “Ding-Dong” sounds from an individual door when there is a call.

  • Page 6: Part Name & Function

    3. Parts Names & Functions Details Details 1 Handset Color Control 2 LCD Screen Contrast Control 3 Extension call button and a Lamp Video brightness control 4 Guard station call button and a Lamp Call volume control 5 Door release button and a Power Lamp Speaker 6 Power switch This is an in-house unit that is a Color videophone.

  • Page 7: Multi Entry Panel Calling

    4. Multi Entry Panel Calling 1. When receiving a call from the Multi-Entry Panel, you will hear the COMMAX chime and the image of the visitor will be shown on the screen 2. Pick up the handset to initiate conversation.

  • Page 8: Call/ Talk Duration

    7. Call / Talk duration This is applied to all calls and conversation. 1. Calling time lasts for 30 seconds. 2. Talking duration lasts for 60 seconds. 8. Setting In-House unit as a Master and Sub Units. - This setting should be set by the Multi Entry Panel which should be connected to channel 1 - When a single unit is installed, the setting should be set as a master unit.

  • Page 9: Chime Sound

    1) Setting Master Set the ID as “ 0” on Multi-Entry panel which shold be connected to chanel 1 ① - The default of all Multi Entry Panels is assigned to “0” . ② While picking up the handset of an in-house unit, press the “extension call”...

  • Page 10: Opening The Entrance Of A Multi-Entry Panel With Password

    11. Opening the entrance of a Multi-entry panel with password Note : The doors do not open by default password “1234” Only after changing default Password, can you use this function. 1) Open the entrance with resident password. ① Enter the resident number and “ ”...

  • Page 11: Wiring

    12. Wiring and System diagram 1. Wiring 2. Wiring method - Please pay attention to the polarity of the wires. Units will not work properly when mis-wired. - The Power of the Master unit is supplied from the Building distributor without an additional power supply, but additional sub units requires a separate a power source.

  • Page 12: System Diagrm

    3. Diagram...
  • Page 13 Memo...
