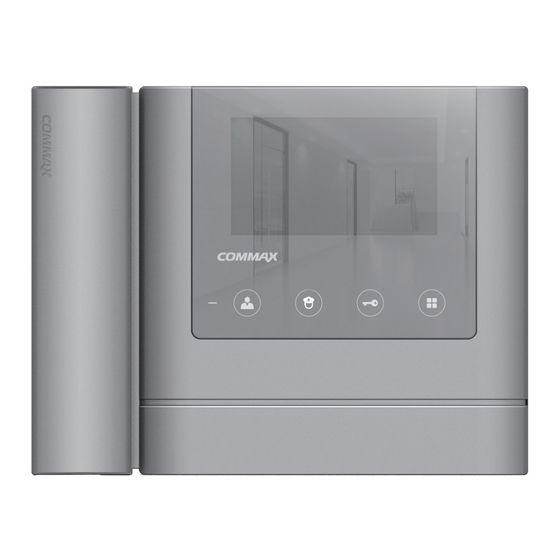

  • Page 1 User Manual Color Video Door Phone CAV-43MHG / CAV-43MHG(M) Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    9. Wiring method ········································································12 10. Component ··········································································14 11. Specifications ·······································································14 1. Greeting Thank you for purchasing a COMMAX product ● Please, use the product after carefully reading this Manual ● This type of videophone can be used in apartments, villas and other buildings as a ●...

  • Page 3: Warnings And Caution

    2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Part Names And Functions

    3. Part names and functions Handset Monitor Power Switch Menu Button Power LED Monitor Button Door Open Button Guard Button 4. Usage instruction ※ Caution : When you are holding the handset while the hook switch is off and someone may push the button of camera, you may lose your hearing because of high volume of calling sound.
  • Page 6 4-2. Call from the Lobby ① Visitor’s image will be shown on the monitor with emitting chime sound when a visitor presses the call button. ② By picking up the handset, you can talk with the visitor. (Screen will be turned off after 60 sec automatically from the beginning of conversation) ③...
  • Page 7 4-4. Monitoring. When you receive initial call , your device automatically searches for the door camera and displays OSD accordingly Display with Door camera Display with no Door camera By pressing monitor button, display above appears. If you press button of your desired space (monitoring[ ], guard[...

  • Page 8: User Setting

    5. User Setting •After Menu screen appears, you can change setting with below 4 buttons Menu start and finish :[ ] (Menu button -‘[ ] ’) SELECT : [ ] (Guard button-‘[ ] ’) Move upward /move right : [ ] (Door release button –‘▲’...
  • Page 9 After moving to RESET from DOOR VIDEO SET, press SELECT button for RESET. Select YES with move button. Complete your setting by pressing SELECT button ※ Notice :Display control and reset function adjusts each video(DOOR/LOBBY) collectively (5) EXIT: Return to EXIT of initial menu 5-2.
  • Page 10 (3)EXIT: Return to EXIT of initial menu ☞Tip: ringing tone simple volume control function While you are calling or monitoring, there appears volume control icon on the screen. You can control ringing tone volume by pressing door open button. Ringing tone volume control(door open button): Every time you press button once, Ringing tone changes 0 ~3 stages.

  • Page 11: System Setting

    System Setting You can set HOME SET(Household information setting) and INFORMATION(Product information check) after pressing menu button for 3 seconds in stand by mode. 6-1. HOME SET (Household information entry) Move to HOME SET from System setting mode and select below (1) HOME ID : Setting Building No.

  • Page 12: How To Use Lobby Phone

    6-2. INFORMATION(product information) In MENU mode, move to INFORMATION and check out Product Information (1) MODEL : Product Name (2) VERSION : Product Version (3) HOME ID : Currently set Building No. & Household No. (4) TOUCH : Touch program Version 6-3.

  • Page 13: Installation

    8. Installation ▷ Monitor installation Note • Avoid installing the product in the area of direct sunlight. • The position of the unit's body should fit the standard height range (Recommended height range is 1450 ~ 1500mm.) • Avoid installing the product exposed to gas exposure, magnetic force, in humid temperatures, as it may damage the condition and performance of the product.
  • Page 14 ※ Cautions for wiring If it is to be installed near high voltage line, please use coaxial cable for grounding Keep the cable out of the sheath exposure to prevent to be shorted Be sure to turn off the monitor before you connect the monitor with cameras. Be careful of the polarity of the cable when you connect the monitor with cameras Lobby Entrance In case of connecting between lobby panel &...

  • Page 15: Component

    10. Component 11. Specifications Model CAV-43MHG / CAV-43MHG(M) Spec CAMERA :4 lines, LOBBY : 8 lines Transmission style Rated Voltage 100-240V~, 50/60Hz (FREE VOLTAGE) Power consumption MAX : 10W, Stand-by : 2W HAND-SET mode Conversation Display 4.3" COLOR TFT-LCD (DIGITAL)
  • Page 16 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2017.01.104 PM0243MHG010...
