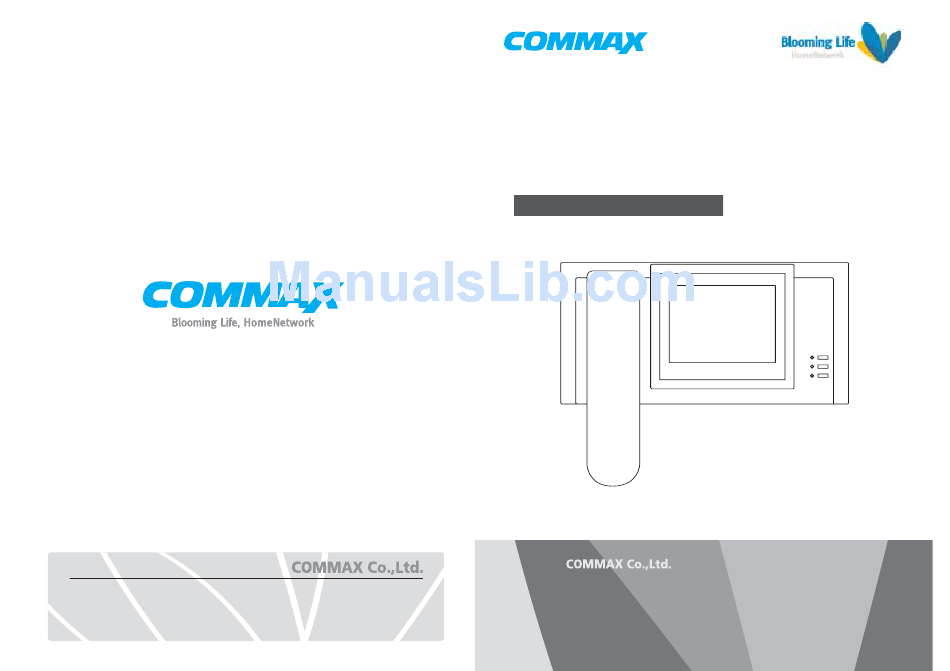

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea
Int'l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133
Web site : www.commax.com
VIDEO
DOOR PHONE
Printed In Korea / 2008.05
Model No. CAV- 51M
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety)
before using a product and follow instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal
operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAV-51M and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CAV-51M

Summary of Contents for Commax CAV-51M

  • Page 1 VIDEO DOOR PHONE Model No. CAV- 51M • Thank you for purchasing COMMAX products. 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea • Please carefully read this User’s Guide (in particular, precautions for safety) Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 before using a product and follow instructions to use a product exactly.

  • Page 2: Chime Sound

    Warnings and caution Features & Specifications Part Name & Function Multi Entry Panel Calling Sub unit calling (Intercommunication) Guard station or external area calling Call/ Talk duration Setting In-House unit as a Master and Sub Unite Chime sound Changing and initialization of the password Opening the entrance of a Multi-entry Panel With Password Wiring...
  • Page 3 Make sure to follow the instructions to prevent any danger or property losses. It indicates prohibition. It indicates prohibition of disassembly. Warning Death or serious It indicates prohibition of contact. injury is expected. It indicates dos and don’ts. It indicates that the plug should be pulled out from the socket. Do not put the plug in the socket Do not connect to other products Do not forcibly bend the cord or...
  • Page 4 Install the product in a flat and Pull the plug if the product is If the product generates strange stable place. not used for a long time. sound, make sure to pull the plug immediately and contact Otherwise, it may not function Commax service center. properly.
  • Page 5 4. 5”TFT LCD Monitor 5. 3 buttons : “Guard station call”, “Door release” and “Extension call” 6. COMMAX chime (Sol, Mi, Do) is the ring tone that sounds from Multi Entry Panel. “Ding-Dong” sounds from an individual door when there is a call.
  • Page 6 VO LUME BR IT C O N T C O LO R O FF O N ( Stand By) Details Details 1 Handset Color Control 2 LCD Screen Contrast Control 3 Extension call button and a Lamp Video brightness control 4 Guard station call button and a Lamp Call volume control 5 Door release button and a Power Lamp...
  • Page 7 1. When receiving a call from the Multi-Entry Panel, you will hear the COMMAX chime and the image of the visitor will be shown on the screen 2. Pick up the handset to initiate conversation. 3. When opening the door of the Multi Entry Panel during a conversation, Press the “Door release”...
  • Page 8 This is applied to all calls and conversation. 1. Calling time lasts for 30 seconds. 2. Talking duration lasts for 60 seconds. - This setting should be set by the Multi Entry Panel which should be connected to channel 1 - When a single unit is installed, the setting should be set as a master unit.
  • Page 9 1) Setting Master Set the ID as 0 on Multi-Entry panel which shold be connected to chanel 1 - The default of all Multi Entry Panels is assigned to 0 . While picking up the handset of an in-house unit, press the extension call button and the door release button at the same time.
  • Page 10 Note : The doors do not open by default password “1234” Only after changing default Password, can you use this function. 1) Open the entrance with resident password. Enter the resident number and “ ” button Enter the PIN number and the “ ”...
  • Page 11 1. Wiring 2. Wiring method - Please pay attention to the polarity of the wires. Units will not work properly when mis-wired. - The Power of the Master unit is supplied from the Building distributor without an additional power supply, but additional sub units requires a separate a power source. (There is no power line connection between Master unit and Sub units)
  • Page 12 3. Diagram...
  • Page 13 Memo...
