Summary of Contents for Commax CAV-35NM

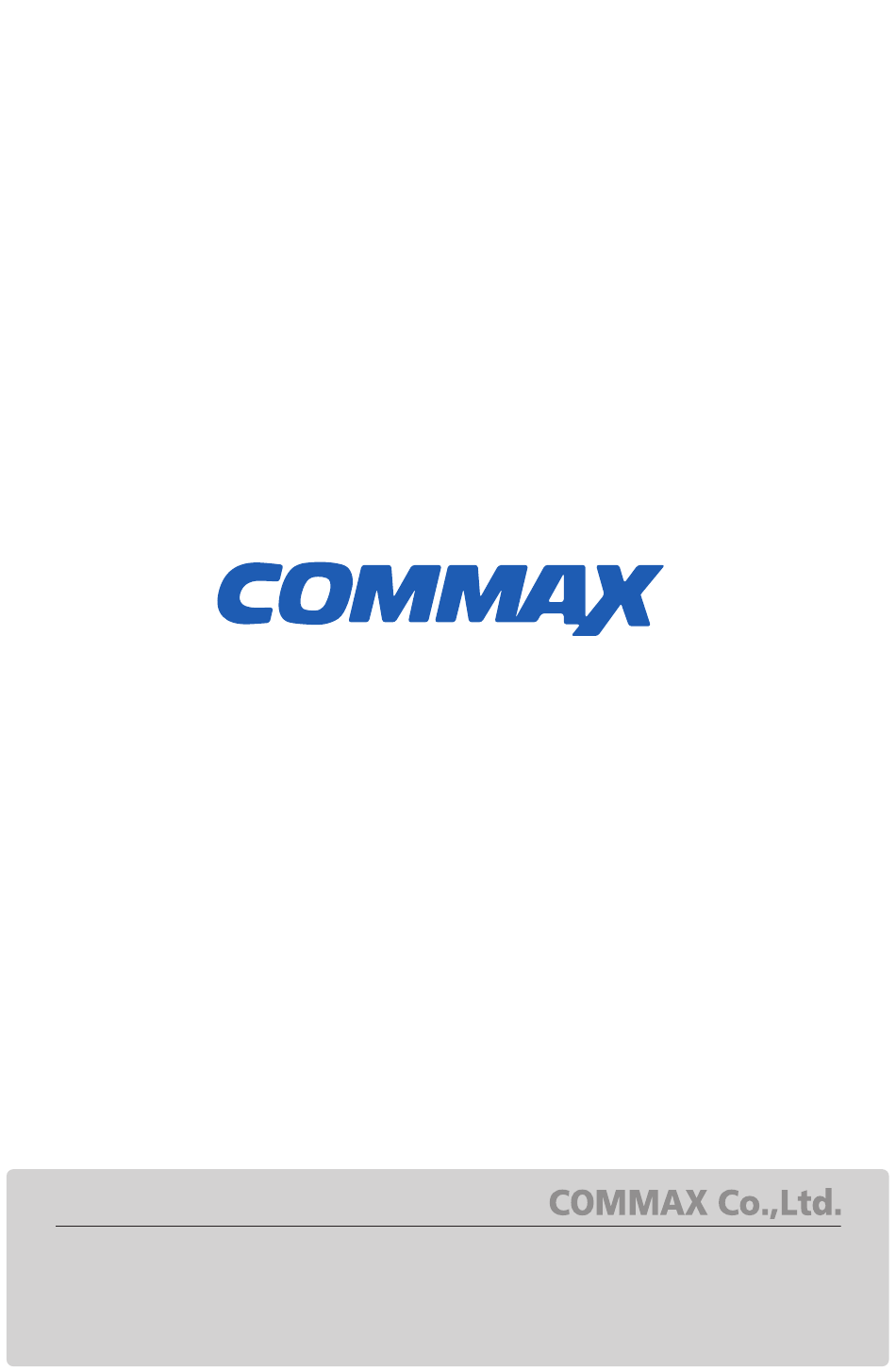

- Page 1 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2010.09.103...

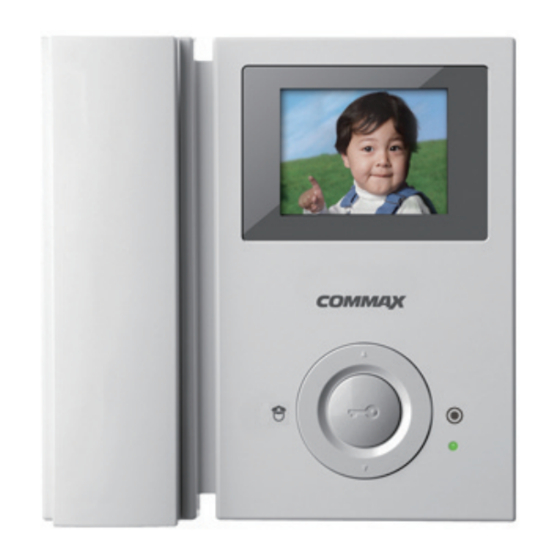

- Page 2 User Manual COLOR VIDEO DOOR PHONE CAV-35NM • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
-
Page 3: Table Of Contents
1. Greetings Thank you very much for purchasing of COMMAX products. Please read carefully this user manual and follow its rules. This intercom can be used in offices, and shopping outlets, and provide convenience to use communication on long distances. -
Page 4: Warnings And Cautions
2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated. - Page 5 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.
-
Page 6: Freatues
4) 3.5 inch TFT LCD Monitor 5) Available to call "Porter (Guard Phone)" , "Door release"and "Extension interphone". 6) COMMAX chime (Sol, Mi, Do) is the ring tone that sounds from Lobby phone. "Ding- Dong"sounds from an individual door when there is a call. -
Page 7: Part Names And Functions
4. Part names and functions Part name Part name Hand set Guard call button LCD Screen Volume switch UP button BRIGHT control switch Door release button COLOR control switch Interphone button CONT control switch Power indicator RESET button DOWN button Power switch... -
Page 8: Basic Use
5. Basic use 1) Call from Lobby phone ① When receiving a call from the lobby phone, sound COMMAX chime and the visitor's image will be shown on the screen. (Chime rings 2 times.) ② Hold a handset to make a conversation ③... -
Page 9: Chime Sound From Individual Door Unit
6. Setting House unit as a Master and Sub Units. A. This setting should be set by the Lobby phone which should be connected to channel 1 of CCU-BS. B. When a single unit is installed in a household, it should be set as a master unit. (In case more than 2 units are installed in a household, one of them should be set as a master, and the rest should be set as slave units.) C. -
Page 10: The Change And Initialization Of The Password
④ Press the "Extension" button on an in-house unit then the "*** -> S" message is displayed on the Multi Entry Panel. Register desired household number in Multi Entry unit, and then press "CalI"button. ⑤ The electric sound will be heard after completion ⑥... -
Page 11: Opening The Entrance Of Multi-Entry Panel With Password
8. Opening the entrance of Multi-entry panel with password 1) Open the entrance with resident password. (The doors do not open by default password "1234". you use this function only after changing default password into new one,) ① Enter the resident number in Multi Entry Panel. ②... -
Page 12: Wiring And System Diagram
3) CONT Setting ① Press the COLOR button in the right in status of the screen on ② Power LED is blinked as fast (COLOR control mode) ③ Control the BRIGHT as the user wants by pressing UP/DOWN button ④ Hold "CONT"button for 2 seconds and release it to be saved ⑤... - Page 13 2) Wiring method ① Please pay attention to the polarity of the wires. Units will not work properly when mis-wired. ② As using UTP(CAT.5) cable, each cable color should be matched as shown the above wiring diagram. ③ The P ower of the Master unit is supplied from the Floor Distributor(a power per 8 Floor Distributors) without an additional power supply, but additional sub units requires a separate a power source.
-
Page 14: Specification
11. Specification Model No. CAV-35NM Wiring To floor distributor : 6 wires (TALK2, DATA1, POWER1, VIDEO1, GND1) Power Voltage 24~28V / 5A (Power is supplied from Floor Distributor) / an extra power is required for Slave units. Communication Method Hand set Display 8.89Cm(3.5") TFT LCD...
