User Manual

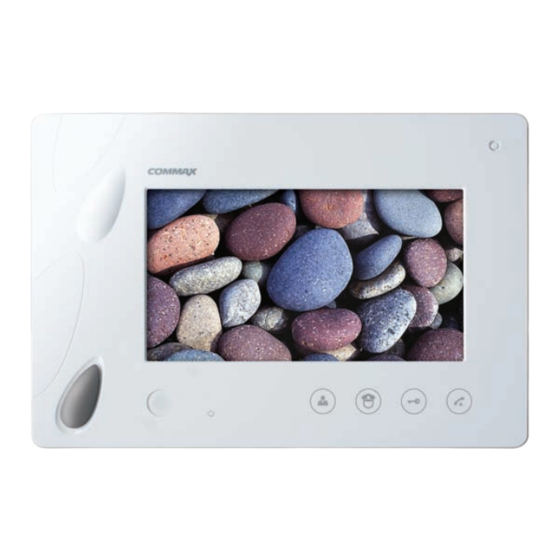

Color Video Door Phone CAV-70PG
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAV-70PG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CAV-70PG

Summary of Contents for Commax CAV-70PG

  • Page 1: User Manual

    User Manual Color Video Door Phone CAV-70PG • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    8. Wiring method ......................11 9. Contents ........................12 10. Instructions for use....................12 11. Miscellaneous......................12 12. Specifications ......................13 1. Greetings ● Thank you very much for choosing COMMAX. ● Please read this manual carefully before you use the product.

  • Page 3: Safety Warning& Caution

    2. Safety Warning & Caution Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated.
  • Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.

  • Page 5: Part Names& Functions

    3. Part names and functions Name Name Monitor Call volume control (max /min) Microphone MENU(menu switch) Speaker SELECT(select button) Power indicator LED UP button (△) Monitoring button (individual door) DOWN button (▽) Guard Button Power Switch Door release button Program Download Talk button Camera Conversation volume...

  • Page 6: Operating

    4. Operating 1. Call from the individual entrance ① When the visitor presses the call button, an electronic chime sound rings and the visitor’s image appears on the monitor. ② Conversation with the individual entrance will begin when you presses the call button.

  • Page 7: Configuration

    (2) Calling the guard station. ① After pressing the talk button, press the guard button, and you can hear the call sound of guard sound. ② Conversation will begin when a guard station responds 4. Monitoring. (1) In case both lobby and individual cameras are installed Click the monitor button once in standby mode to check the images from Individual camera.
  • Page 8 ● Move to DOOR(LOBBY) VIDEO SET in the screen set mode of 5-1 and after press the SELECT button, move to menu below with △ / ▽ button. (create LOBBY VIDEO SET during conversation or call from lobby phone.) (1) BRIGHTNESS : adjusting brightness. (2) CONTRAST : adjusting contrast.
  • Page 9 ④ Press the SELECT button. (2) EXIT: Return to the screen set mode of 1. ✽ How to set up ① Move to DOOR(LOBBY) VIDEO SET in the screen set mode of 5-1 and after press the SELECT button, move to EXIT with △ / ▽ button. ②...
  • Page 10 the No. (Default value is 1234. When register new 4-digit number, it will be set automatically.) ※ Caution : Be sure to avoid numbers for security. (On account of security, if the password is just like 0000 or 1234,4321, it will not be working.) (3) EXIT : Return to System set mode of 2.

  • Page 11: How To Use Lobby Inter Phone

    6. How to use lobby inter phone Enter theHousehold Number. Press the page button. 1) When paging the household ex) unit 101 A paging tone will sound. ● Enter the household number you want to cal.1 ⇒ ex) household 101 1, 0, 1 ●...

  • Page 12: Installing Method

    7. Installation method 1. Installation Method of camera monitor Caution ① Keep out of direct sunlight. ② Proper installation height is at 145~150Cm from the ground. ③ When to install it, avoid the place where can be influenced by Magnetism Humidity, Direct light and heater 2.

  • Page 13: Contents

    본체 (CAV-43Q) 벽걸이브라켓 GH1T 4 X 50 ZnY PHM 3 X 6 ZnY 사용설명서 연결컨넥터 벽걸이 설치스크류 본체 설치스크류 CAV-70PG 연결컨넥터 벽걸이 설치스크류 본체 설치스크류 POWER CORD 480 장원형단잭 POWER CORD 480 장원형단잭 (T)4 X 18mm 2P*300(1EA)/ 4P*300(1EA) 2P*300(1EA)/ 4P*300(1EA) 벽걸이브라켓...

  • Page 14: Specifications

    12. Specifications Model CAV-70PG Spec Transmission style CAMERA 4 lines(polar), LOBBY 8 lines(polar) Rated Voltage 100-240V~, 50/60Hz (FREE VOLTAGE) Power consumption MAX : 15W, Stand-by : 4W Conversation HANDS FREE mode(Voice Switch circuit) Display 17.78Cm(7") COLOR TFT-LCD (DIGITAL) Calling sound...
  • Page 15 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0270PG0011 Printed In Korea / 2011.12.104...
