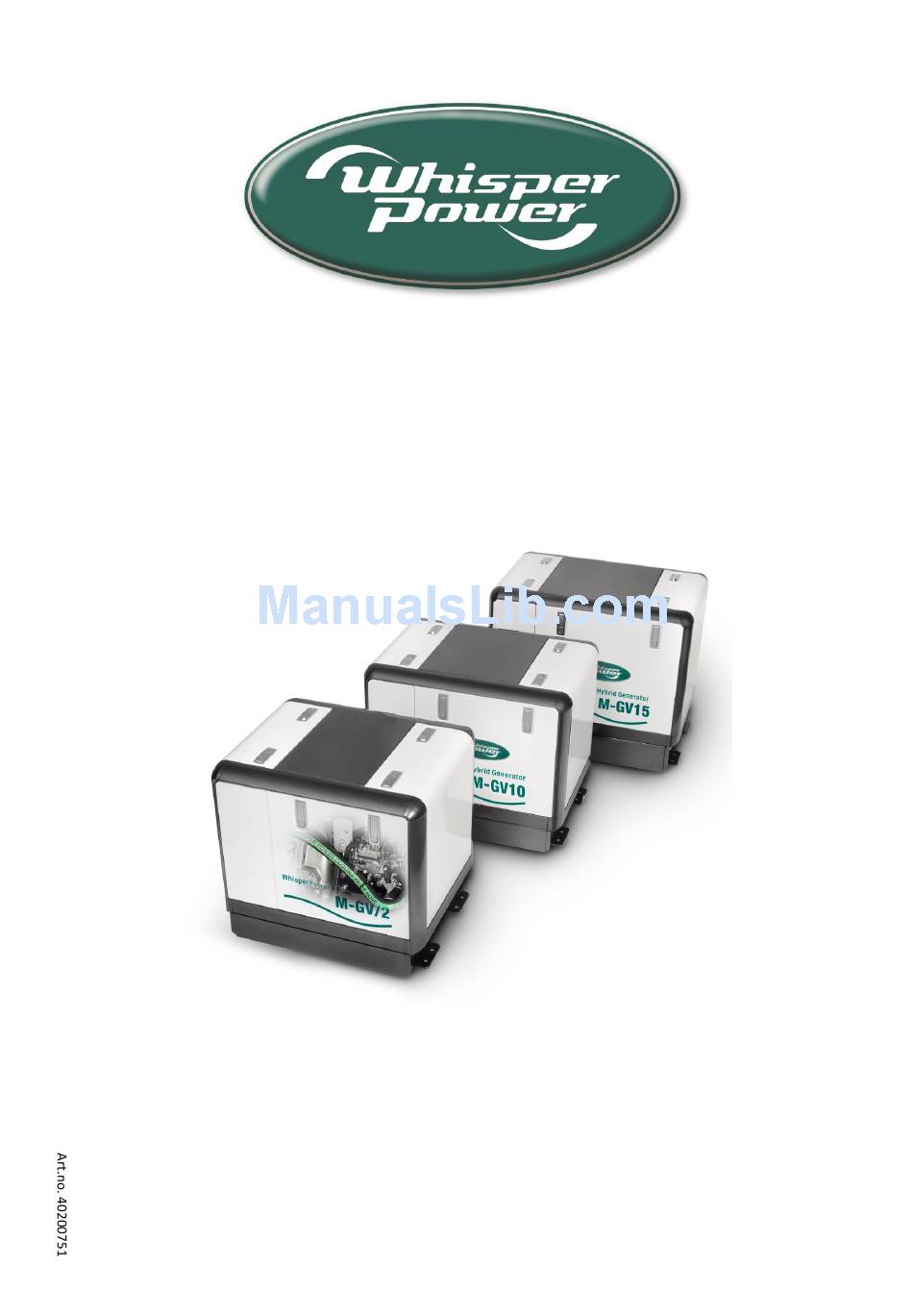

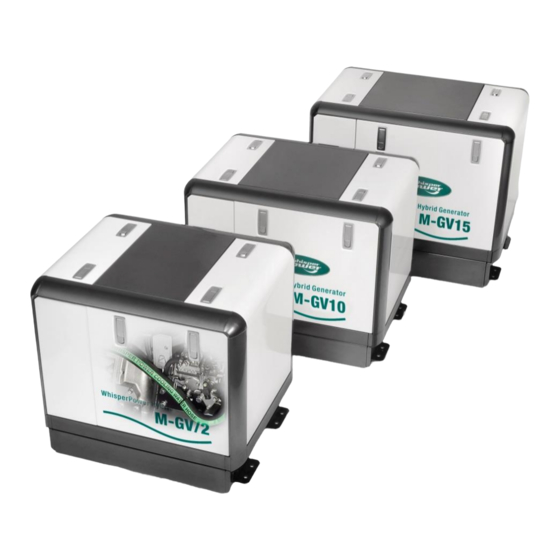

- Page 1 INSTALLATION MANUAL M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 genverters for marine use WHISPERPOWER BV Kelvinlaan 82 9207 JB Drachten Netherlands Tel. : +31-512-571550 Fax : +31-512-571599 www.whisperpower.com V1.2, June 2017...
-
Page 2: Table Of Contents
Technical data ..................................15 Specification of the accessoiries ............................15 Installation materials ................................16 DIAGRAMS & DRAWINGS ................................. 20 Electrical diagrams................................20 Mechanical drawings ................................23 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 3: Introduction
M-GV 10, keel cooling, dry exhaust (Kubota D722) 41001505 M-GV/3+, wet exhaust (Kubota D1105) 41007005 M-GV 15, wet exhaust (Kubota D1105) 41007055 M-GV 15, 120V/60Hz, wet exhaust (Kubota D1105) M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 4: Installation
(Figure 1). bad weather conditions. The best place is a dedicated engine Figure 1: Mounting of the WhisperPower genverter. X = wrong, V = OK M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 5: Ventilation
Figures 2 and 3: Connections for genverters using Z482, L2E, ATTENTION! D722 and L3E engine blocks) Before working on the system, read the safety instructions. M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 6: Fuel Supply
Both a supply line and a return line should be installed and go will prevent the fuel supply line from being drained into the into the tank from the top. Interference of the two systems M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 7: Fuel Filters
When the liquid For raw water supply the following installation materials are cools down there will be under-pressure. Another valve opens required: skin fitting M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... - Page 8 If you use another kind of siphon breaker that has a hose accessible position, 5 cm above the waterline (Figure 13, ref. 6). connection, make sure that the drain should go downwards M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
-
Page 9: Wet Exhaust System
3 Exhaust line Ø 40 mm (1 ”); 4 Goose neck; 5 Through-hull exhaust outlet Ø 40 mm (1 ”); 6 Water level. Figure 13: Standard exhaust system M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 10: Super Silent Exhaust System
(see Figure 16). An additional outlet exhaust muffler close to the hull Figure 15: Hose lengths M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... - Page 11 (see Figure 18). Figure 18: Outlet direction Do not direct the outlet directly toward the water surface. M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
-
Page 12: Electrical Installation
(Figure 20). M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 13: Automatic Starting And Stopping
(not being the starter battery) and to start the genverter automatically when this voltage drops below a set value. This M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 14: Alternating Current
It is absolutely essential that each and every circuit in the electrical system be properly installed by a qualified electrician. M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 15: Installation Summary
Fuel filter/water separator 30 micron Fuel inlet and return 8 mm Exhaust hose Ø 40 mm inner Water lock Ø 40 mm Water/gas separator Ø 40 mm M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... -
Page 16: Installation Materials
Male hose connector ¾” × 25 mm 50230061 Nickel plated brass intake strainer ¾” TOTAL 40230221 WATER INLET KIT 25 mm (1”) for M-GV/3+ and M-GV 15 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... - Page 17 Hose clamp 25-45 mm 50220056 Raw water hose 25 × 33 mm TOTAL 40230274 SYPHON BREAKER KIT 25 mm (1”) for M-GV/3+ and M-GV 15 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
- Page 18 Elbow 90° exhaust hose adapter 40 mm 50221504 HD hose clamp 35-50 mm 50230113 Brass straight coupling f/f 40 mm 50230112 Brass elbow f/f 40 mm M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
- Page 19 AGM-Power 12V 80Ah Absorbed Glass Matt 350 × 167 × 180 mm 40290030 AGM-Power 12V 90Ah Absorbed Glass Matt 307 × 169 × 211 mm M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
-
Page 20: Diagrams & Drawings
DIAGRAMS & DRAWINGS DIAGRAMS & DRAWINGS ELECTRICAL DIAGRAMS Figure 24: Layout of M-GV 8 and M-GV 10 genverter systems M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... - Page 21 DIAGRAMS & DRAWINGS Figure 25: Layout of M-GV 15 genverter system M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
- Page 22 DIAGRAMS & DRAWINGS Figure 26: Electrical control diagram M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
-
Page 23: Mechanical Drawings
DIAGRAMS & DRAWINGS MECHANICAL DRAWINGS Figure 27: M-GV/2 and M-GV 8 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN... - Page 24 DIAGRAMS & DRAWINGS Figure28: M-GV/3 and M-GV 10 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
- Page 25 DIAGRAMS & DRAWINGS Figure 29: M-GV/3+ and M-GV 15 M-GV/2, M-GV/3, M-GV/3+, M-GV 8, M-GV 10 and M-GV 15 — June 2017 — EN...
- Page 28 Kelvinlaan 82, 9207 JB Drachten, Netherlands Tel : + 31-512-571550 / Fax : + 31-512-571599 www.whisperpower.com / info@whisperpower.com...
