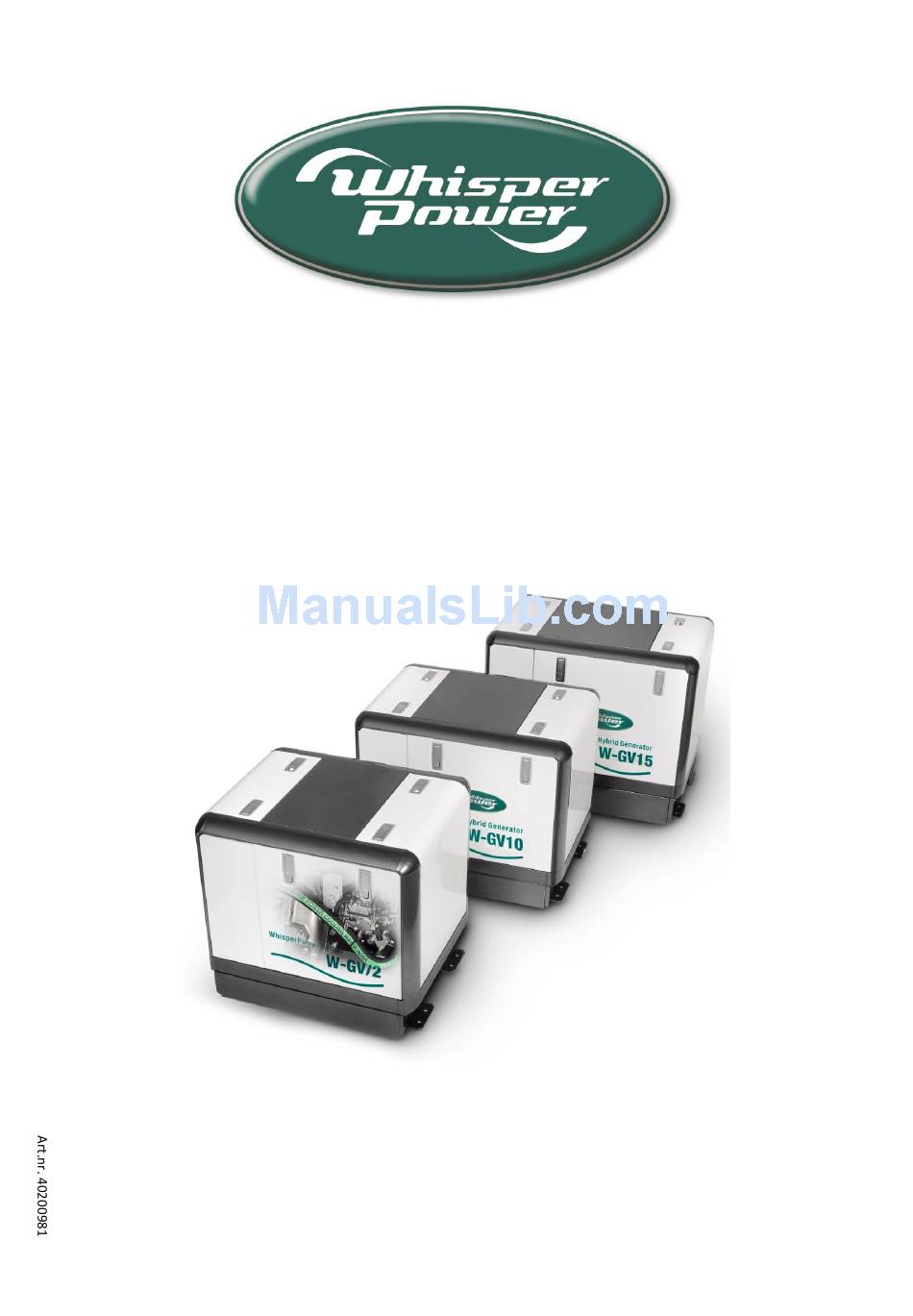

USER'S MANUAL

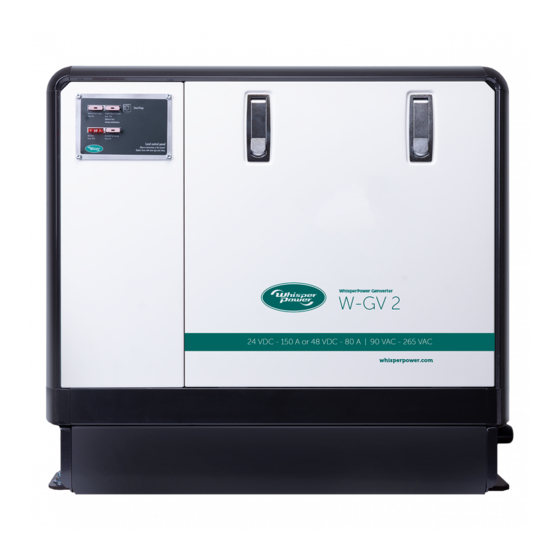

W-GV/2, W-GV/3, W-GV/3+,
W-GV 8, W-GV 10 and W-GV 15
genverters for mobile use
WHISPERPOWER BV
Kelvinlaan 82
9207 JB Drachten
Netherlands
Tel.: +31-512-571550
Fax.: +31-512-571599
www.whisperpower.com
V1.2, June 2017
