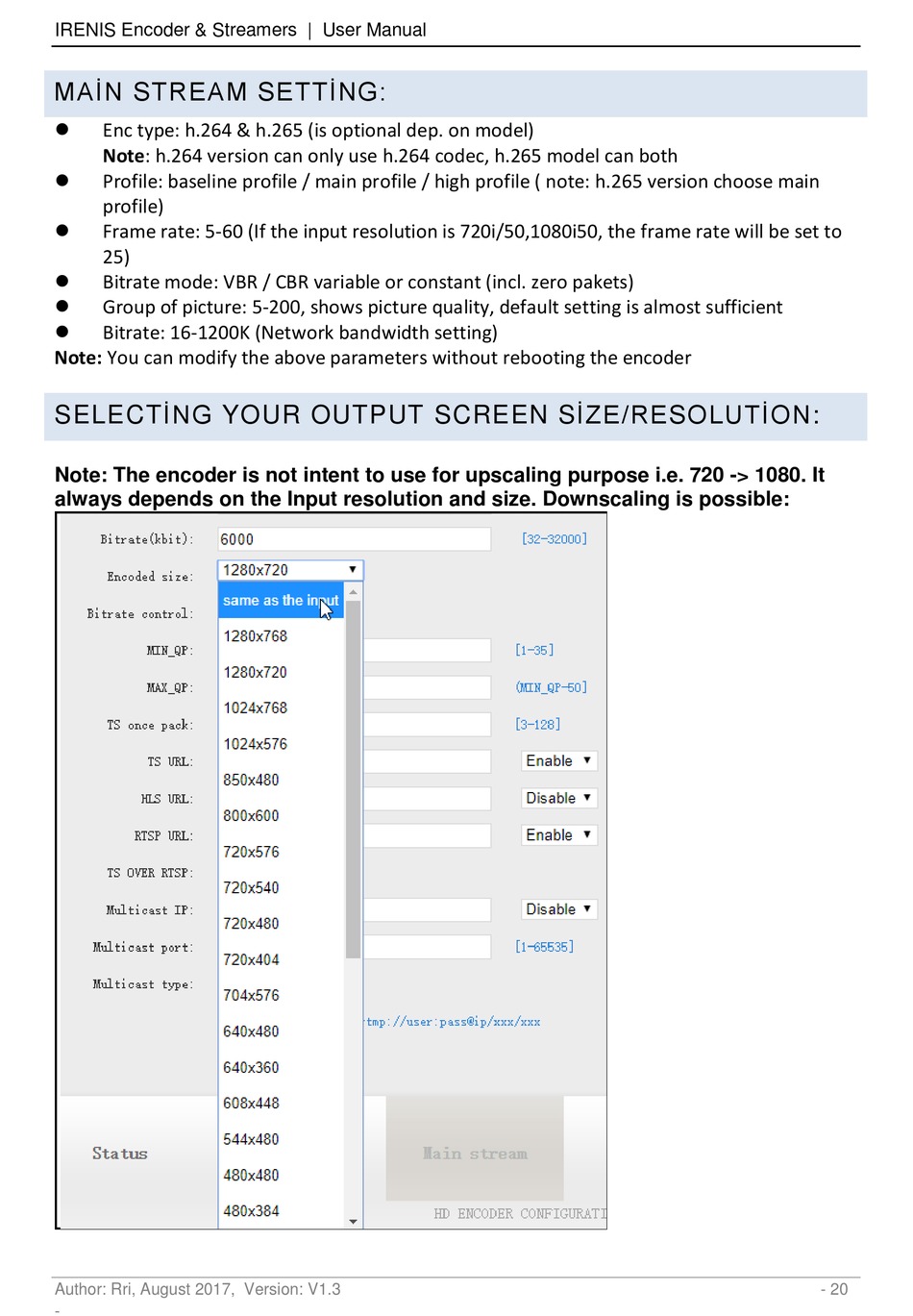

MAİN STREAM SETTİNG:
Enc type: h.264 & h.265 (is optional dep. on model)

Note: h.264 version can only use h.264 codec, h.265 model can both
Profile: baseline profile / main profile / high profile ( note: h.265 version choose main

profile)
Frame rate: 5-60 (If the input resolution is 720i/50,1080i50, the frame rate will be set to

25)
Bitrate mode: VBR / CBR variable or constant (incl. zero pakets)

Group of picture: 5-200, shows picture quality, default setting is almost sufficient

Bitrate: 16-1200K (Network bandwidth setting)

Note: You can modify the above parameters without rebooting the encoder
SELECTİNG YOUR OUTPUT SCREEN SİZE/RESOLUTİON:
Note: The encoder is not intent to use for upscaling purpose i.e. 720 -> 1080. It
always depends on the Input resolution and size. Downscaling is possible:
