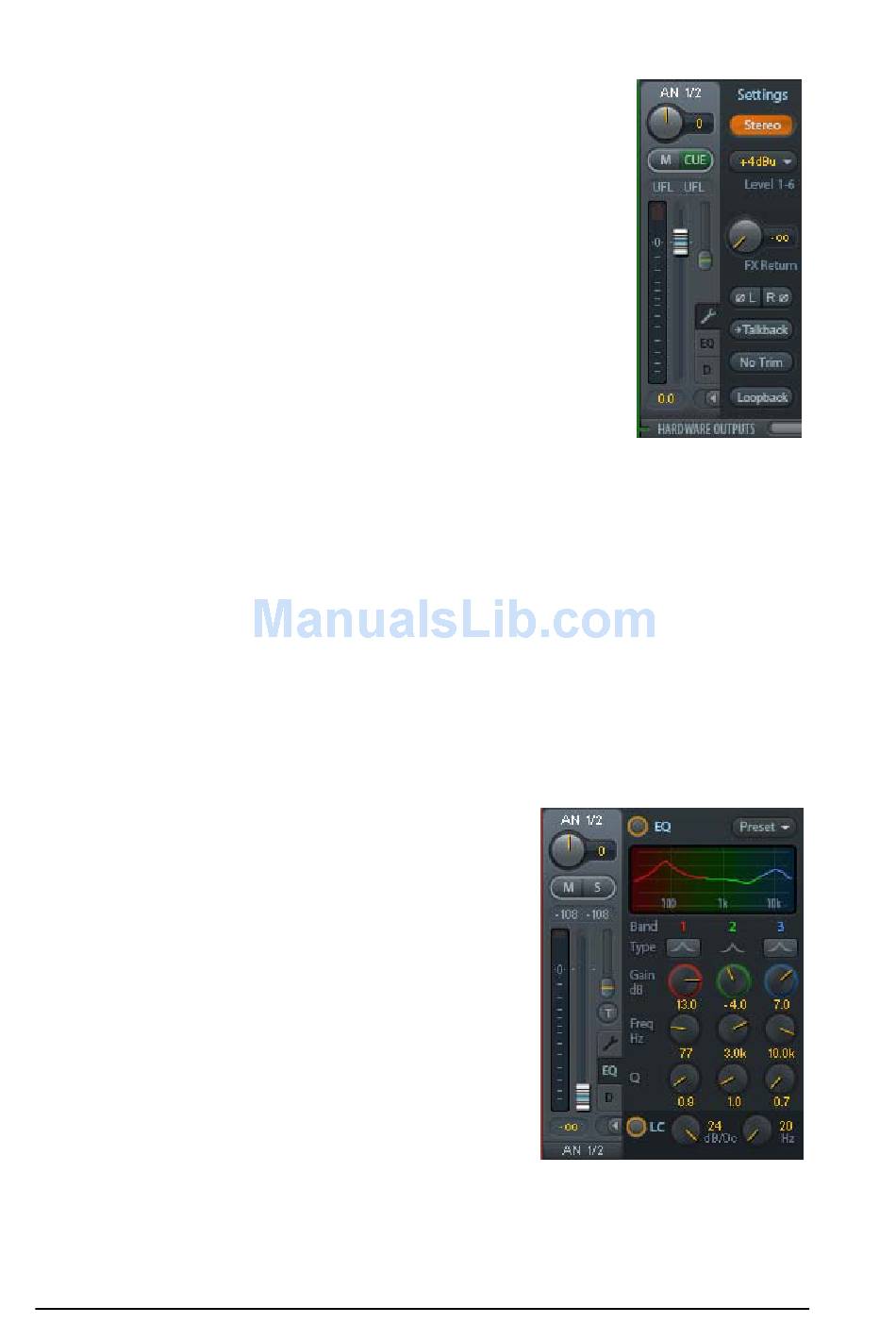

Besides Stereo/Mono, Phase L und Phase R the settings of the Hardware Outputs have further
options:
Level. Sets the reference levels of the 8 analog Line outputs. The
available settings are -10 dBV, +4 dBu and HiGain. The outputs 1/2
additionally offer +24 dBu. The Phones (channels 9-12) have a Low and
High setting to choose from.
FX Return. The effect signal (Echo and Reverb) is mixed to the
respective hardware output by the duo knob/small fader.
Talkback. Activates this channel as receiver and output of the Talkback
signal. This way Talkback can be sent to any outputs, not only the
Phones in the Control Room section. Another application could be to
send a certain signal to specific outputs by the push of a button.
No Trim. Sometimes channels need to have a fixed routing and level,
which should not be changed in any case. An example is the stereo
mixdown for recording of a live show. With No Trim active, the routing to
this output channel is excluded from the Trim Gains function, therefore is
not changed unintentionally.
Loopback. Sends the output data to the driver as record data. The corresponding submix can
be recorded then. This channel's hardware input sends its data only to TotalMix, no longer to
the recording software.
Another difference to the input and playback channels is the Cue button instead of Solo. A click
on Cue sends the respective Hardware Output's audio to the Main Out, or any of the Phones
outputs (option Assign / Cue to in the Control Room section). With this any hardware output can
be controlled and listened to through the monitoring output very conveniently.

25.3.2 Equalizer

A click on EQ opens the Equalizer panel. It is available in all input and output channels, and
affects all routings of the respective channel (pre fader). The panel includes a low cut and a 3-
band parametric equalizer which can be activated separately.
EQ. Activated by the EQ button.
Type. Band 1 and 3 can operate in peak (bell) or shelf
(shelving) mode. The middle band is fixed to peak mode.
Band 3 can also operate as Hi Cut (low pass filter),
especially useful for LFE and subwoofer purposes.
Gain. All three bands can change their amplification
between +20 dB to -20 dB.
Freq. The center frequency of the filters is adjustable
between 20 Hz and 20 kHz. While in peak mode the center
frequency is adjusted, in shelf mode the cut-off point (-3 dB)
will be changed.
Q. The Quality factor of the filter is adjustable from 0.7
(wide) to 5.0 (narrow).
Lo Cut. Activated by the button Lo Cut. The slope of the high-pass filter is adjustable between
6, 12, 18 and 24 dB per octave. The cut-off point (-3 dB) is adjustable between 20 Hz and 500
Hz.
