Chapter 7 Gated Operation with a PTG 97
5. At this point, it is a good practice to make sure that the camera is focused by
running it in Free Run mode. This requires that you set the experiment parameters
on the Experiment Setup tab pages (refer to Figure 46 and Figure 47). On the
Experiment Setup|Main tab page, choose Shutter Mode, set a value between 0
and 255 for MCP gain, and set the appropriate integration time. On the Timing tab
page, select Free Run and Fast Mode. On the ADC tab page, select the
appropriate ADC type. On the ROI Setup tab page, select the appropriate ROI.

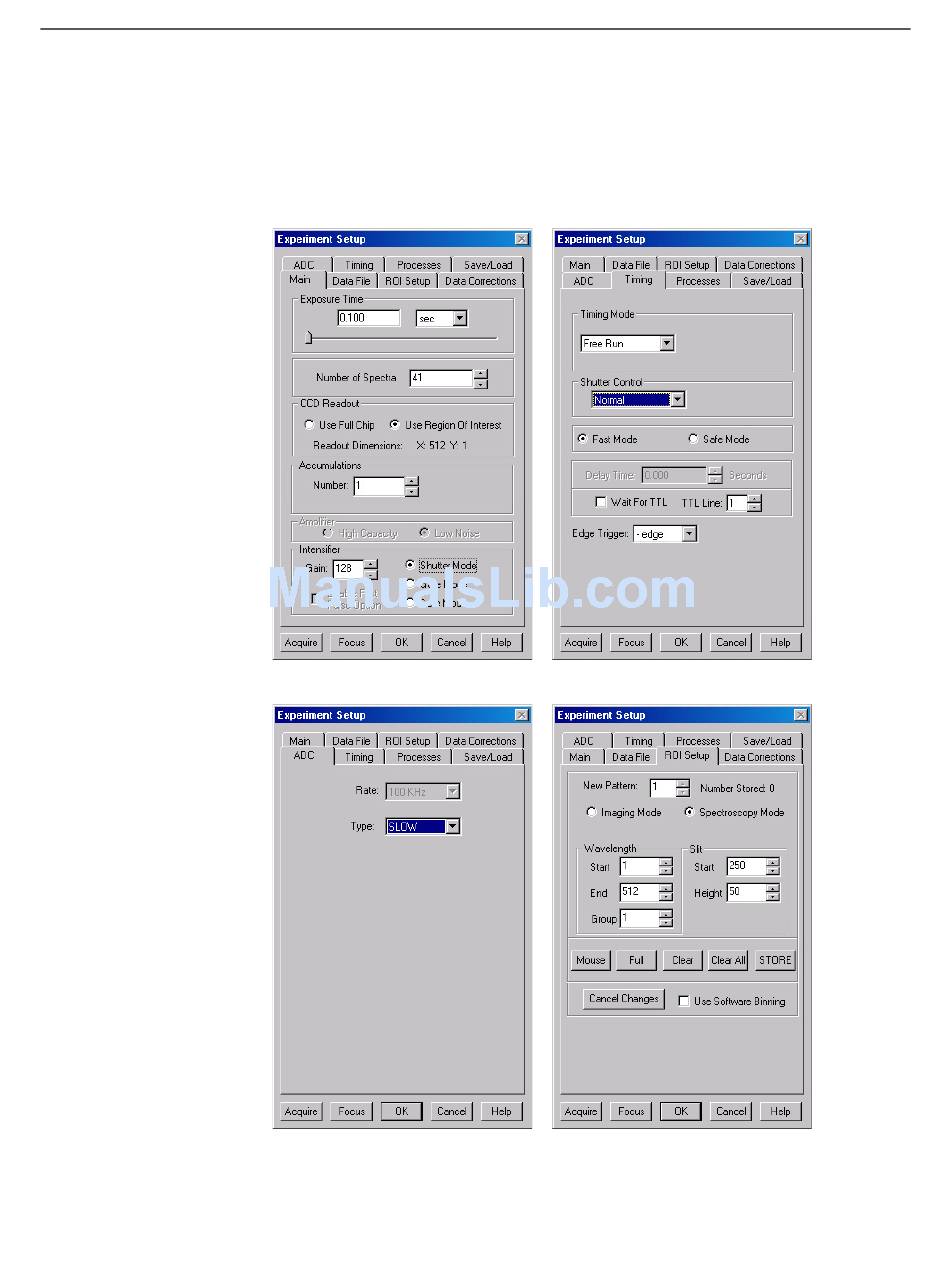

Figure 46. Experiment Setup: Main and Timing tab pages
Figure 47. Experiment Setup: ADC and ROI Setup tab pages
