User Manual

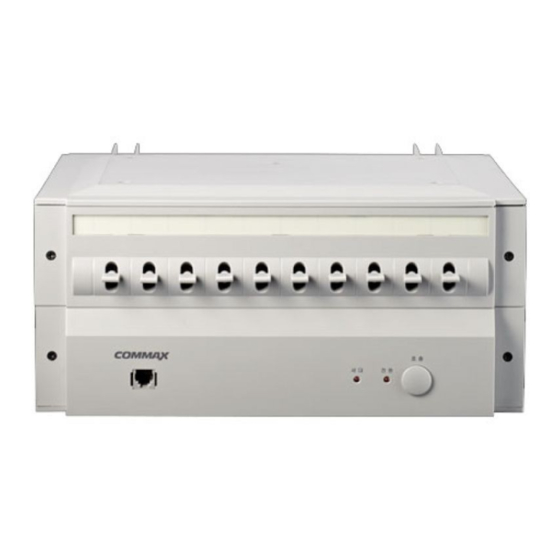

INTERPHONE EXCHANGE CLS-10
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLS-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CLS-10

Summary of Contents for Commax CLS-10

  • Page 1: User Manual

    User Manual INTERPHONE EXCHANGE CLS-10 • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1.Warnings and Precautions for Safety ............ 3 2. Features ..................5 3. The Unit and Functions ..............5 ..................5 1) The Unit ..................6 2) Function 4. Operation ..................7 ..............7 4.1 Call to slave telephone ..............

  • Page 3: Warnings And Precautions For Safety

    1. Warnings and Precautions for Safety The following are the warnings and precautions to prevent dangers or property damage due to incorrect use of the product. Please make sure to follow the instructions exactly. Indicates general inhibitions. Any danger that may result in serious injuries or death if Indicates assembly prohibited.
  • Page 4 Warning Do not disassemble, repair If there is strange sound Do not insert metal objects In case of a DC product, or revise the product. or burning smell delivered such as chopsticks, wire, do not use batteries of (Contact the service center from the product, gimlet, etc.

  • Page 5: Features

    2. Features - The exchange is based on 10 circuits and can be extended up to 240 circuits by adding circuits required for the user. - The exchange is used being connected to telephones manufactured by the company. It may also be connected to general telephones. - You can use DC 24V/1A power supply when AC220V is not available.

  • Page 6: Function

    2) Function ① Telephone set (TP-K): Telephone set is used when call is received from a slave telephone or when the master telephone calls a slave telephone (General phones may be used) ② Telephone connector jack: Used to connect an TP-K common telephone set (General phones may be used) ③...

  • Page 7: Operation

    4. Operation 4.1 Call to slave telephone - Lift the telephone set, position the call connection key of the slave telephone to be called to outgoing call and press the calling button. Melody is played and the slave telephone is called (calling time: 15±5sec) - Speak to the slave telephone when it answers.

  • Page 8: Assembly

    5. Assembly 1) Assembly Drawing 1) Several layers assembled into one line 2) Several layer assembled into two lines 3) Several layers assembled into several lines 4) Unit types: CLS-10T (R), CLS-10T (L), CLS-10W －8－...

  • Page 9: Assembly Method

    ⑤ Close the cover when assembly of the last layer is completed. 2) Several layer assembled into two lines ① Release the screws at the top and bottom of CLS-10 to open the upper and lower covers. ② Open the upper and lower covers of CLS-10W.

  • Page 10: Wiring

    6. Wiring 7. Precautions •Turn on the power switch of the product. •When damage or defects are found in the product, immediately contact the customer support team of the head office. •Do not place flowerpot or water bottle on the product. •Use circuit breakers suitable for internal wiring of the building (Both phases have to be disconnected.).

  • Page 11: Others

    ■ The following do not correspond to troubles. Check the product and contact your local representative or the service team of the head office. ■ We will do our best for satisfactory service. 9. Specifications and Features 1) Configuration ① CLS-10 ② Expansion Units: CLS-10T(L) CLS-10T(R) CLS-10W 2) Specifications and Features .
  • Page 12 MEMO －12－...
  • Page 13 MEMO －13－...
