User Manual

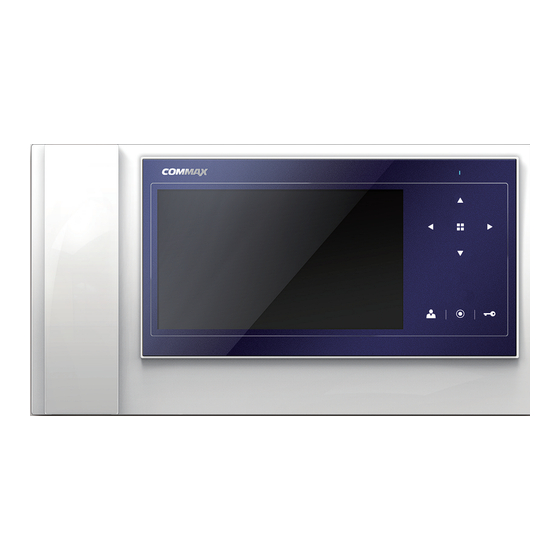

Tilt Color video door phone CDV-70KPT
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax CDV-70KPT
Summary of Contents for Commax CDV-70KPT
-
Page 1: User Manual
User Manual Tilt Color video door phone CDV-70KPT • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •... -
Page 2: Table Of Contents
Table of Contents 1. Warnings and Cautions................2 Part Names ....................3 Package Contents ..................3 Wiring and Connection Instructions............4 Installation ....................Operation ......................5 Settings ....................Specifications and Features..............7 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. -
Page 3: Part Names
Warning & Caution Please plug out the power Please don’t use several Please don’ t bend the power Please don’ t handle the power cable from the socket when products at the same time on cable excessively or it may cable with a wet hand. -
Page 4: Wiring And Connection Instructions
4. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 2. Blue: GND 2. Blue: GND 3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4. -
Page 5: Operation
6. Operation � Caution : Do not hold the handset at your ear when you press hook switch to switch call. 1. Calling of visitor Open the door The visitor The visitor’ s presses the image appears The door release function operates only when the visitor’... -
Page 6: Settings
- When call volume control switch is clicked, it will operate in order as follows. - (Stand by mode - In position) - CHIME-VOL0 CHIME-VOL1 CHIME-VOL2 CHIME-VOL3 CHIME-VOL0 5. CAMERA TILT FUNCTION Users can adjust the image focus to see the place that they want. Functions are only available with pan tilt cameras. -
Page 7: Specifications And Features
2. UTILITY(additional function) Press the Menu button and access to Utility SET and enter the menu by pressing SELECT button. (1) CHIME-BELL VOLUME : setting volume sound . ① Move to CHIME-BELL VOLUME icon with navigation button in UTILITY Menu. ②... - Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-21 33 Web site : www.commax.com PM0270KPT010 Printed In Korea / 2016.07.104...
