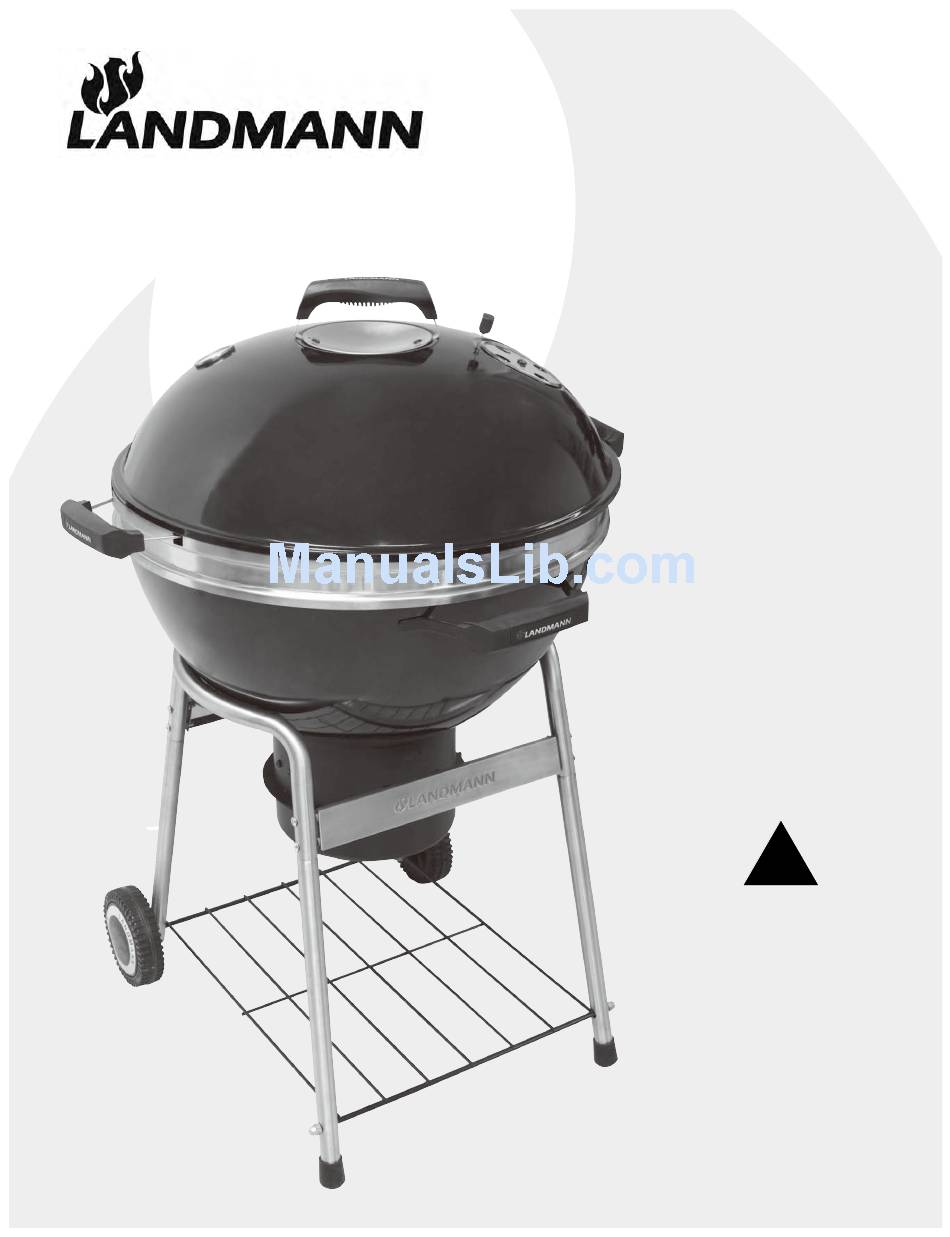

- Page 1 Blac k Pearl Kettle Charcoal Grill Assembly and Operating Instructions for: Product Code: LMBPKL VER. 5, 7/11/2014 PLEASE READ ALL RULES FOR SAFE OPERATION AND FOOD SAFETY BEFORE USING.
-
Page 2: Food Safety
PAGE 2 black pearl kettle READ FIRST! RULES FOR B LLACK PEARL KETTLE CHARCOAL GRILL SAFE OPERATION. • WARNING! THE GRILL IS FOR OUTDOOR USE ONLY! • THE GRILL IS FOR ADULT USE ONLY. • WARNING! THIS GRILL GETS EXTREMELY HOT DURING USE! •... - Page 3 PAGE 3 HARDWARE AND SMALL PART LISTING (8) M6 x 35MM (6) M6 x 15MM (6) M5 x 10MM BOLT BOLT BOLT (6) M5 HEXNUT (2) M8 LOCKING (2) M8 CAPNUT HEXNUT (2) 16MM WASHER (2) 16MM WASHER (6) 18MM WASHER (2) 12MM WASHER...
-
Page 4: Part Listing
PAGE 4 black pearl kettle PART LISTING (1) FIREBOWL (1) LID (1) LOCKING RING (1) COOKING GRATE ( 2 ) COOKING GRATE HANDLE (1) CHARCOAL GRATE (1) BOTTOM SHELF... - Page 5 PAGE 5 black pearl kettle PART LISTING (2) TOP LEGS (2) FRONT LEGS (2) WHEEL LEGS (2) LEG BRACES (1) ASH CATCHER (1) LID HANDLE HOUSING AND VENT (2) WHEEL (2) WHEEL CAP (1) LID HANDLE (1) ASH CATCHER HEAT SHIELD...
- Page 6 PAGE 6 black pearl kettle PART LISTING (2) C OAL DIVIDER (1) TEMPERATURE GAUGE WITH WINGNUT AND BRAC KET...
-
Page 7: Exploded View
PAGE 7 black pearl kettle EXPLODED VIEW PIZZA KETTLE PARTS FIREBOWL ....... .1 . - Page 8 BLCAK PEARL KETTLE PAGE 8 ASSEMBLY INSTRUCTIONS black pearl kettle A Phillips or plain screwdriver and adjustable wrench are needed for assembly. Assembly time: 45 minutes STEP 1: ASSEMBLE THE CART Arrange the parts as shown. Insert front legs [ G ] and wheel legs [ H ] into the top legs [ J ] as shown.
- Page 9 BLCAK PEARL KETTLE PAGE 9 ASSEMBLY INSTRUCTIONS black pearl kettle STEP 3: ASSEMBLE THE FIREBOWL AND HANDLE Place the firebowl [ A ] on the cart making sure the holes for the firebowl handle is positioned correctly facing the front. Align the holes and assemble the firebowl using (4) 18MM washers [ JJ ] and (4) M6 x 15MM bolts [ BB ].
- Page 10 BLCAK PEARL KETTLE PAGE 10 SLOTS ASSEMBLY INSTRUCTIONS black pearl kettle STEP 5: ASSEMBLE THE LOCKING RING STEP 5: ASSEMBLE THE LOCKING RING AND TOOL HOOK Place the locking ring [ C ] onto the firebowl tabs. The slots for the cooking grate should be on the sides.
- Page 11 BLCAK PEARL KETTLE PAGE 11 ASSEMBLY INSTRUCTIONS black pearl kettle STEP 7: ADD GRATES Place the cooking grate han d le [ D 1 ] onto the cooking grate [ D ] as shown. Place the charcoal grate [ E ] on the bottom of the firebowl.
- Page 12 BLCAK PEARL KETTLE PAGE 12 ASSEMBLY INSTRUCTIONS black pearl kettle STEP 8: PLACE ASH CATCHER AND LID Slide the ash catcher [ M ] onto the housing [ L ] and lock by turning right into slot. STEP DO NOT RETURN PRODUCT TO THE STORE. IF YOU HAVE QUESTIONS OR HAVE TROUBLE WITH ASSEMBLY, PLEASE CALL 180 0 -79 9 -833...
- Page 13 PAGE 13 black pearl kettle OPERATING INSTRUCTIONS FOR CHARCOAL GRILL This grill becomes EXTREMELY hot! Use caution working around the WARNING ! grill. The handles will become warm to hot over extended use. Use mittens or oven gloves when removing the lid and cooking grate. CHARCOAL STEP 1: START THE CHARCOAL STEP 2: SETUP TO GRILL...
- Page 14 PAGE 14 black pearl kettle CLEANUP COOLED ASHES GRILL CLEANUP Clean the cooking grate using a good quality grill brush. The buildup is easier to clean when its still hot. Take care to avoid burns. After the grill has cooled, the grill lightly to get tap and shake the ashes to fall into the ash catcher.
-
Page 15: Food Temperatures
PAGE 15 black pearl kettle FOOD TEMPERATURES If you are unsure about when food is done, use this chart as a guide for measuring properly cooked meat temperatures. Use a high quality meat thermometer with probe to measure the meat temperature. Push probe into the thickest part of the meat to get an accurate measurement. - Page 16 CLOSED UNTIL ALL ASHES HAVE COOLED. Congratulations on your purchase of the Pizza Kettle Charcoal Grill! At Landmann Ltd , we strive to provide you with an easy to use, easy to assemble product. However, in the unlikely event your package...
- Page 17 WARRANTY AND CONSUMER GUARANTEE Barbeques Galore Warranty is provided in addition to other rights and remedies as set out below under ‘Consumer Guarantees’. Warranty Term Subject to the conditions set out below, this product is warranted to the purchaser to be free from defects in workmanship and materials from the date of purchase for the terms specified below.
- Page 18 Consumer Guarantee Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
