V
:
12794_
ersion
uk
r
:
#349-2011
eVision
e
:
03/11_
dition
ta
t
Assembly and operating manual
Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury.
We therefore recommend that you read the relevant chapter of these instructions prior to assembly and be-
fore each use. Follow the steps in the order they are specified and please observe the safety warnings.
These instructions form part of the product. They should therefore always be

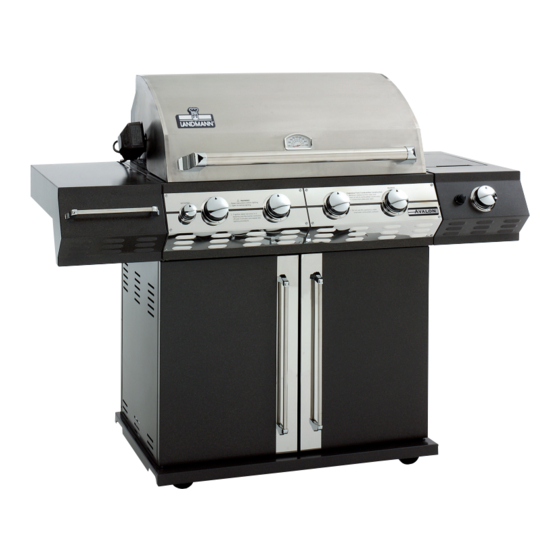

"Gas barbecue"
Please read these before every use.
stored with the product and passed on to each subsequent user.
The barbecue is for open-air use only!
Advertisement
Table of Contents
Related Manuals for Landmann 12794
Summary of Contents for Landmann 12794
- Page 1 12794_ ersion #349-2011 eVision 03/11_ dition "Gas barbecue" Assembly and operating manual Please read these before every use. Failure to observe these instructions can affect or damage the device and other objects and lead to personal injury. We therefore recommend that you read the relevant chapter of these instructions prior to assembly and be- fore each use.
-
Page 2: Table Of Contents
Igniting the side burner ........................21 Using the rotisserie ..........................23 Cleaning ..............................25 Barbecue 25 Gas system ............................25 Maintenance .............................26 Barbecue ............................26 Gas system ............................26 Environmental information and disposal measures ..................26 Troubleshooting ............................27 Declaration of conformity .........................29 List of spare parts ............................30 2 LANDMANN... -
Page 3: Specifications
Operating pressure 28-30 mbar butane / 37 mbar propane Gas hose -approved hose (max 1.5 m) Ignition Electronic ignition Flame regulation infinitely adjustable 0 - max. Electric motor (rotisserie drive) Connection 230 V AC , 50 Hz Protection type LANDMANN... -
Page 4: Delivery Specifications
(flame off) Side burner (infrared) Rotisserie burner (infrared) Ignition (electric) When the flame regulator is open, the gas ignites on the burner (for all burners) Electric motor Drive unit for rotisserie with on/off button and power cord 4 LANDMANN... -
Page 5: Function
A battery-operated igniter generates sparks on the burners which ignite the gas. The heat can then be controlled by using the flame regulators (A). If the gas supply is closed via a flame regulator (A), the flame is extinguished. LANDMANN... -
Page 6: Use
• if original spare parts from LANDMANN GmbH & Co. Handels-KG are not used. Any alterations made to the barbecue can be dangerous! Therefore do not repair the barbecue yourself, unless the steps to do so are set out in these instructions. -
Page 7: Safety Instructions
... a possible danger that can result in damage to property if the specified meas- CAUTION ures are not observed. Operating notes Pictogram Note on ..a useful function or tip. LANDMANN... -
Page 8: Residual Risks
Pull the holding brake on the right castor during operation. Safety measures while barbecuing: • Wear protective barbecue gloves. • Never leave the hot barbecue unattended. Keep children, mentally or physically handicapped persons and pets at a safe distance. 8 LANDMANN... -
Page 9: Danger „Gas Is Highly Flammable
The barbecue must not be used if the connections for the gas supply are porous or faulty. This also applies, for example, to hoses or fittings blocked by insects, as this can produce a dangerous flashback. • Do not store spare gas cylinders near the barbecue. LANDMANN... -
Page 10: Danger "Gas Displaces Oxygen
– Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, in or near stairways, hallways or passages and thoroughfares between buildings. – Always store gas cylinders upright, even if they are empty! 10 LANDMANN... -
Page 11: Assembly
Read the text for each step before carrying it out, as useful information is sometimes only provided at the end of the section. Even if you are not experienced at DIY, assembly does not generally take longer than one hour. LANDMANN... -
Page 12: Assembly Procedure
1. Undo four hexagon bolts (S) on the left-hand side of the wagon barbecue (1) through a few rotations. Do not remove! 2. Position the drill holes in the side support table (2) over the loosened hexagon bolts (S). 3. Tighten the four bolts again (S). 12 LANDMANN... - Page 13 (5) by using the two crosshead screws (S from step 7). When doing this make sure that the "OFF" marking on the cover is at the top and that the gas hose is not twisted or kinked in any way. LANDMANN...
- Page 14 13. Insert the four ignition hoses (8) into the connections on the ignition button (9, any position) 14. Unscrew the cap for the ignition button (9), insert an AA battery (negative pole first) and then carefully re- place the cap. 14 LANDMANN...
- Page 15 18. Insert the warming racks (14) into their guide slots. 19. Insert the grease collection tray (15) into its guides. The assembly process is now complete. The barbecue should now look as it does on the title page of the docu- ment. LANDMANN...
-
Page 16: Connecting And Disconnecting The Gas Cylinder
You can locate any leaks in the gas system using a leak detector. This can be purchased at DIY shops or liquid gas suppli- ers. Please follow the operating instructions of the leak detector. The following parts are included in delivery. They comply with the standards applicable in the country to which they have been supplied by LANDMANN. Pressure regulator Preset and -approved pressure reducer, max. -
Page 17: Connecting The Gas Cylinder
– If a leak is detected, close the cylinder valve immediately (turn G1 clockwise) and tighten the loose connection or get the leaking part replaced by a specialist. Repeat the leak test! 7. If you do not wish to barbecue immediately, close the cylinder valve (turn G1 clockwise). Disconnecting the gas cylinder LANDMANN... -
Page 18: Disconnecting The Gas Cylinder
– Fit the gas cylinder valve with a cap nut and safety cap. – Do not store the gas cylinder in rooms below ground level, in or near stairways, hallways or passages and thor- oughfares between buildings. – Always store gas cylinders upright, even if they are empty! 18 LANDMANN... -
Page 19: Operation
(G3) anti-clockwise by hand. 4. Open the cylinder valve (turn G1 anticlockwise). 5 Check to ensure that the gas system is sealed. If not, close the cylinder valve (G1) immediately (turn clock- wise). Igniting main burner 1, 2, 3 and 4 LANDMANN... - Page 20 To switch off the burners (extinguish the flame) press and turn the flame regulators (A1, A2) clockwise to "OFF". The gas supply is only disconnected if all the flame regulators have been set to OFF. Igniting the side burner 20 LANDMANN...
-
Page 21: Igniting The Side Burner
The size of the cookware used must be suited to that of the side burner. The cookware must be able to stand securely on the side burner. 1. Open the side burner lid. Stay as far away from the side burner as possible during the next steps. LANDMANN... - Page 22 4. Turn the flame regulator (A3) to the desired heat setting (flame size), place a pot or pan that is approved for gas cooking appliances on the side burner and heat up your food. To switch off the side burner (extinguish the flame) press and turn the flame regulator (A3) clockwise to "OFF". Using rotisserie 22 LANDMANN...
-
Page 23: Using The Rotisserie
• Before you insert or remove the rotisserie, extinguish the flames on all burners (turn all flame regulators to "Off") and turn off the motor. Otherwise you may burn or injure yourself on the rotating, sharp-edged skewer. LANDMANN... -
Page 24: Switching Off The Barbecue
3. Wait until all of the parts have cooled down and then clean any soiled components. 4. Close the covers 5. If the barbecue is not going to be used for a prolonged period: – Disconnect the gas cylinder (see chapter "Disconnecting the gas cylinder"). – Store the barbecue in a dry place. 24 LANDMANN... -
Page 25: Cleaning
• After the grill has cooled down carefully vacuum the remaining particles away. Gas system Any parts through which gas is passed may only be cleaned by a gas specialist. Never dismantle the adjusting element! LANDMANN... -
Page 26: Maintenance
Observe the local regulations. Barbecue Pay attention to cleanliness when handling the barbecue. To dispose of the barbecue properly, disassemble it into its individual parts. Recycle the metal and plastic components. Observe the local regulations. 26 LANDMANN... -
Page 27: Troubleshooting
Flashback caused by blockages in the 1. Close the cylinder valve immedi- burner. ately (turn G1 clockwise) 2. Wait three minutes and then switch the barbecue back on. 3. If the malfunction occurs again, get the burner disassembled and cleaned by a specialist. LANDMANN... - Page 28 Remove any large areas of fat prior to barbecuing or place the meat on a grill plate or reduce the barbecue tempera- ture The surrounding environment is too Switch off the barbecue and move it to a windy location that is sheltered from the wind 28 LANDMANN...
-
Page 29: Declaration Of Conformity
Declaration of conformity LANDMANN... -
Page 30: List Of Spare Parts
List of spare parts 30 LANDMANN... - Page 31 Small parts bag (x 1) Handle bracket (x 6) Ignition cable for rear infrared burner (x 1) Drawer handle (x 1) Connecting cable for rear infrared burner (x 1) Side burner table (x 1) Side burner IR burner (x 1) LANDMANN...
- Page 32 LANDMANN® Ltd. Unit 6 Blackstone Road, Stukeley Meadows Industrial Estate, Huntingdon, Cambs,PE29 6EF, United Kingdom Hotline Monday to Thursday 9am to 5pm, Friday, 9am to 4pm. +44 0871-231-1990 32 LANDMANN...
